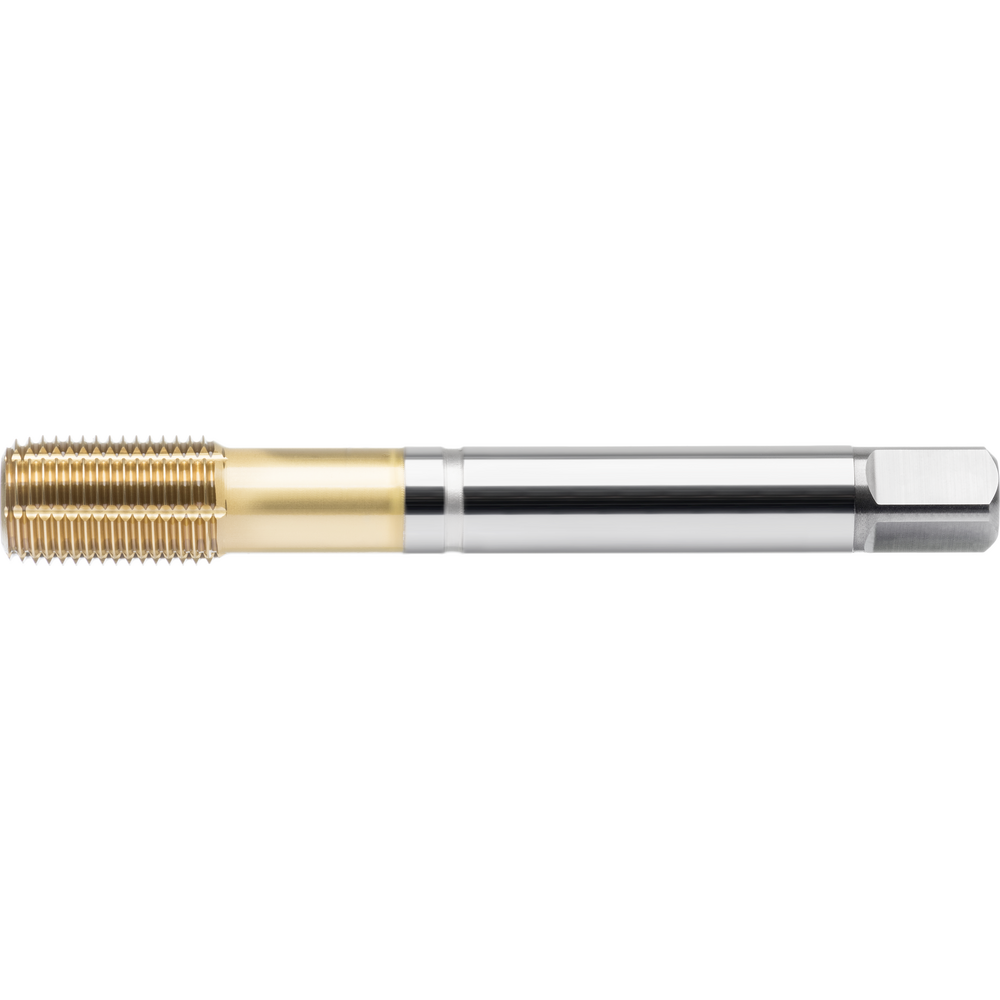

Forming tap HSS-E DIN2189C G1/2

Forming tap HSS-E DIN2189C G1/2
Forming tap HSS-E DIN2189C G1/2 Forming tap HSS-E DIN2189C G1/2
Price:
140,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Machine forming taps
  • Whitworth pipe thread, 55°
  • DIN 2189
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • Constructional dimensions DIN 2174
  • Cutting material: HSS-E TiN
  • For blind-hole and through-hole threads

Machine forming taps
  • Whitworth pipe thread, 55°
  • DIN 2189
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • Constructional dimensions DIN 2174
  • Cutting material: HSS-E TiN
  • For blind-hole and through-hole threads

Article no./ATORN no.
1354950012 / 10483248
Packaging unit
1
Catalogue page
KS-0287
Cutting values
SW-0398

Technical characteristics

C 12 mm
C 12 mm
Coating TiN
Coating TiN
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D G 1/2"
D G 1/2"
D1 16 mm
D1 16 mm
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C
Form/Chamfer C
Gewindeart x Nenndurchmesser G1/2
L 125 mm
L 125 mm
L1 25 mm
L1 25 mm
Max. thread depth 3xD
Max. thread depth 3xD
Nenndurchmesser 1/2 in
Passend für Gewinde G 1/16-G 3/4 Zoll
Surface TiN
Tapping hole Ø 20 mm
Tapping hole Ø 20 mm
Thread G
Thread G
Thread angle 55 °
Thread angle 55 °
Threaded hole type Clearance/blind hole ≤ 3xD
Threaded hole type Clearance/blind hole ≤ 3xD
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
Pitch 14
Pitch 14
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
