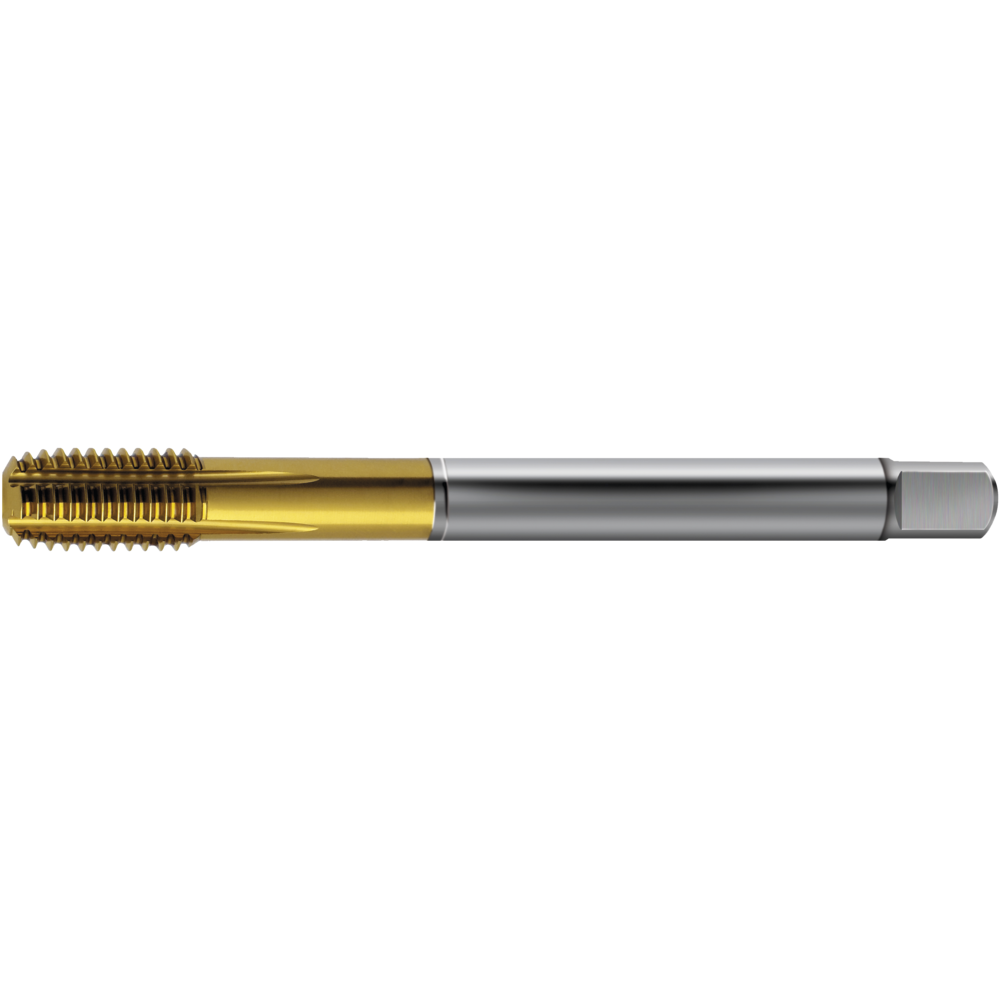

Forming tap HSS-E-PM DIN374C M8x1 6HX TiN

Forming tap HSS-E-PM DIN374C M8x1 6HX TiN
Forming tap HSS-E-PM DIN374C M8x1 6HX TiN Forming tap HSS-E-PM DIN374C M8x1 6HX TiN
Price:
92,80 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Machine forming taps
  • ISO 6HX fine-pitch metric thread
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • Constructional dimensions DIN 2174
  • Cutting material: HSS-E-PM TiN
  • For blind-hole and through-hole threads
  • For materials with good cold-forming properties and a min. expansion of 8 %
  • Possible thread depth 2xD

Machine forming taps
  • ISO 6HX fine-pitch metric thread
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • Constructional dimensions DIN 2174
  • Cutting material: HSS-E-PM TiN
  • For blind-hole and through-hole threads
  • For materials with good cold-forming properties and a min. expansion of 8 %
  • Possible thread depth 2xD

Article no./ATORN no.
1354900810 / 10483236
Packaging unit
1
Catalogue page

Technical characteristics

C 4,9 mm
C 4,9 mm
Coating TiN
Coating TiN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 8 mm
D M 8 mm
D1 6 mm
D1 6 mm
Form/Chamfer C, 2 to 3-thread chamfer
Form/Chamfer C, 2 to 3-thread chamfer
L 90 mm
L 90 mm
L1 35 mm
L1 35 mm
Pitch 1,0 mm
Pitch 1,0 mm
Spiral angle Straight-fluted
Spiral angle Straight-fluted
Standard constructional dimensions DIN DIN 2174
Standard constructional dimensions DIN DIN 2174
Standard tolerance ISO 2 6HX
Standard tolerance ISO 2 6HX
Tapping hole Ø 7,55 mm
Tapping hole Ø 7,55 mm
Thread MF
Thread MF
Thread angle 60° thread angle °
Thread angle 60° thread angle °
Thread depth 2xD thread
Thread depth 2xD thread
Threaded hole type For blind-hole and through-hole threads
Threaded hole type For blind-hole and through-hole threads

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
