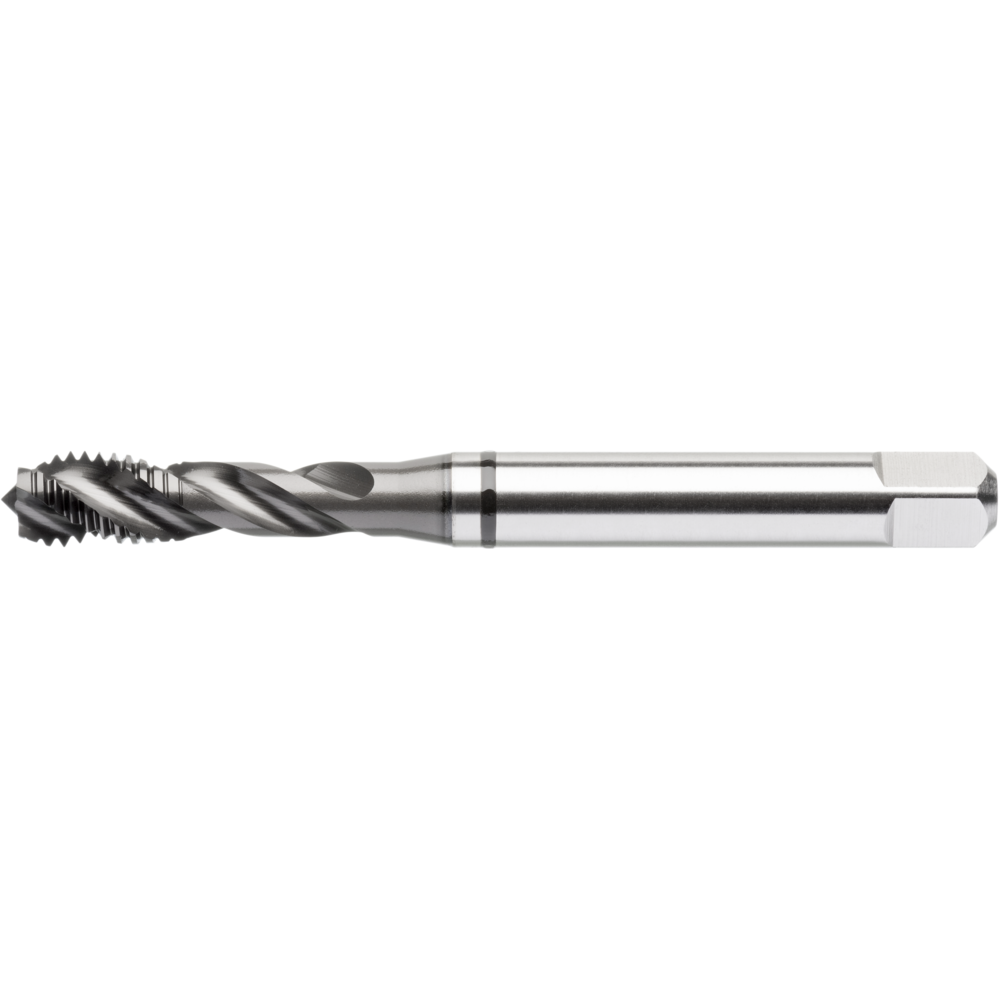

Machine tap HSS-E-PM DIN371C 40° M3 blind-hole thread (universal) Ultra-HL

Machine tap HSS-E-PM DIN371C 40° M3 blind-hole thread (universal) Ultra-HL
Machine tap HSS-E-PM DIN371C 40° M3 blind-hole thread (universal) Ultra-HL Machine tap HSS-E-PM DIN371C 40° M3 blind-hole thread (universal) Ultra-HL
Price
32,20 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

BALINIT® HARDLUBE

Universal machine tap ULTRA-HL
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material HSS-E, HSS-E-PM, Hardlube coating
  • Easy chip removal to the rear
  • Possible thread depth 2xD
  • BALINIT® HARDLUBE: The high level of hardness and temperature resistance of the TiAlN layer effectively protects cutting edges from wear, while the excellent sliding and lubricating properties of the WC/C ensure smooth chip flow. The result: Greater production reliability thanks to reliable, reproducible performance.

Article no./ATORN no.
1347400030 / 11290883
Packaging unit
1
Catalogue page
Cutting values
SW-0401

Technical characteristics

C 2,7 mm
Coating TiAlN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D M3
D1 3,5 mm
Design HSS-E-PM
DIN 371
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
Farbringsystem UNI
fitness hartl total 3
Form/Chamfer C
L 56 mm
L1 10 mm
L2 18 mm
Max. thread depth 2,5xD
Nenndurchmesser 3 mm
Passend für Gewinde M3-M20
Pitch 0,5 mm
Surface ULTRA HL
Tapping hole Ø 2,5 mm
Thread M
Thread angle 60 °
Threaded hole type Blind hole ≤ 2.5xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 40°
Typ UNI 40 Control

Usage characteristics

aluminium < 8 % Si
brass long
brass short
bronze long
cast iron GGG
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
