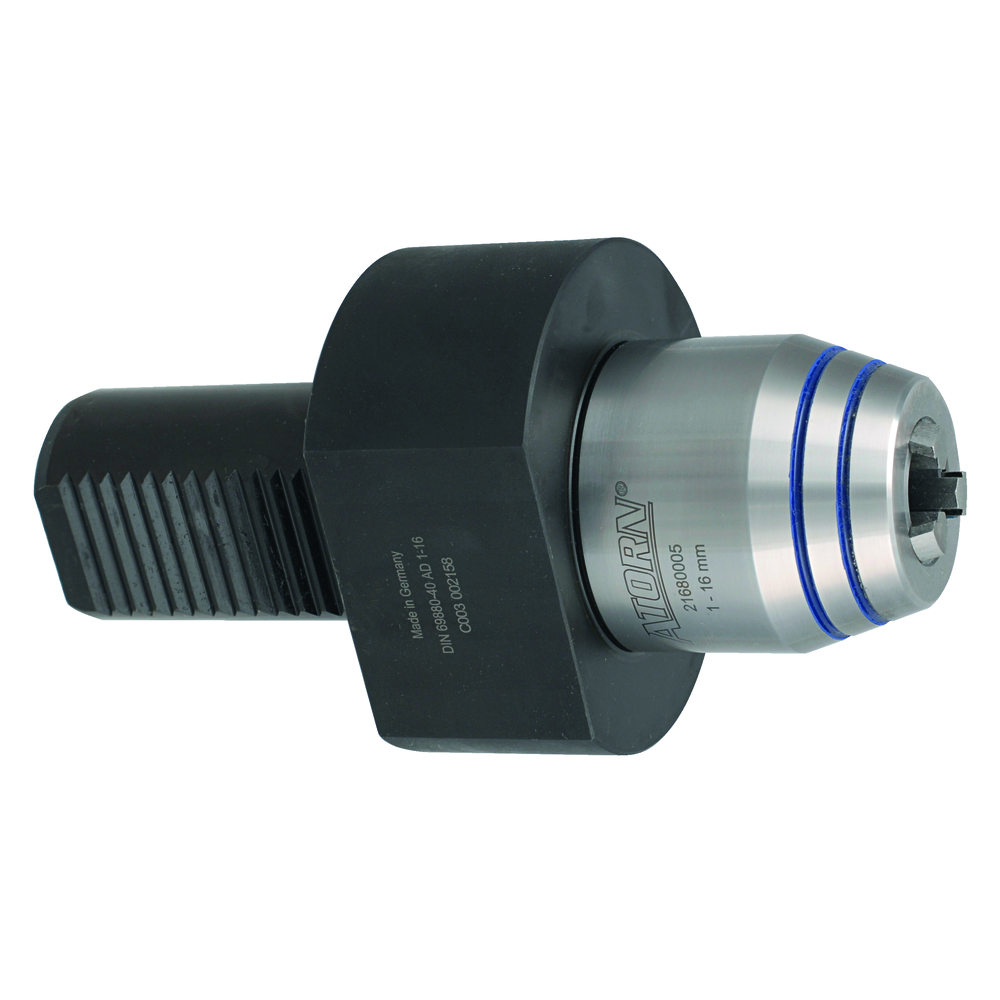

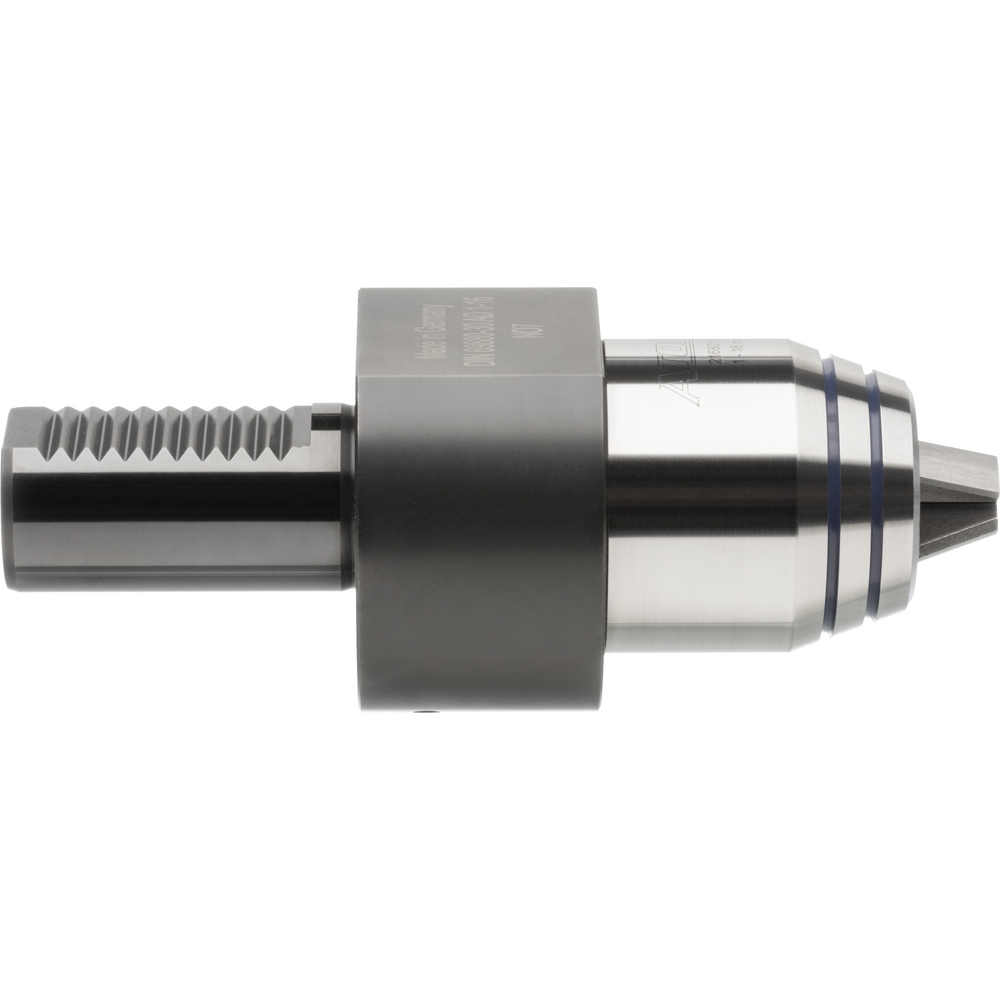

NC short drill chuck DIN69880 VDI30, 1-16mm with ICS

NC short drill chuck DIN69880 VDI30, 1-16mm with ICS
NC short drill chuck DIN69880 VDI30, 1-16mm with ICS NC short drill chuck DIN69880 VDI30, 1-16mm with ICS
Price:
410,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Precision drill chuck with worm gear
  • Clamping by means of an integrated worm gear
  • Suitable for clockwise and anti-clockwise rotation
  • Clamping range 1.0 to 16.0 mm
  • Long service life, wearing parts hardened and ground
  • Supplied with hexagonal key

DIN 69880 (VDI)
  • Internal coolant supply

Precision drill chuck with worm gear
  • Clamping by means of an integrated worm gear
  • Suitable for clockwise and anti-clockwise rotation
  • Clamping range 1.0 to 16.0 mm
  • Long service life, wearing parts hardened and ground
  • Supplied with hexagonal key

DIN 69880 (VDI)
  • Internal coolant supply

Article no./ATORN no.
4410153016 / 21680115
Packaging unit
1
Catalogue page
KS-1150

Technical characteristics

A 87 mm
A 87 mm
D 50 mm
D 50 mm
Max. concentricity 0,03 mm
Max. concentricity 0,03 mm
Max. tightening torque 10 N·m
Max. tightening torque 10 N·m
Min./max. clamping width 1-16 mm mm
Min./max. clamping width 1-16 mm mm
Retaining force 90 N
Retaining force 90 N
VDI mount diameter 30
VDI mount diameter 30
Wr. width 4 mm
Wr. width 4 mm
