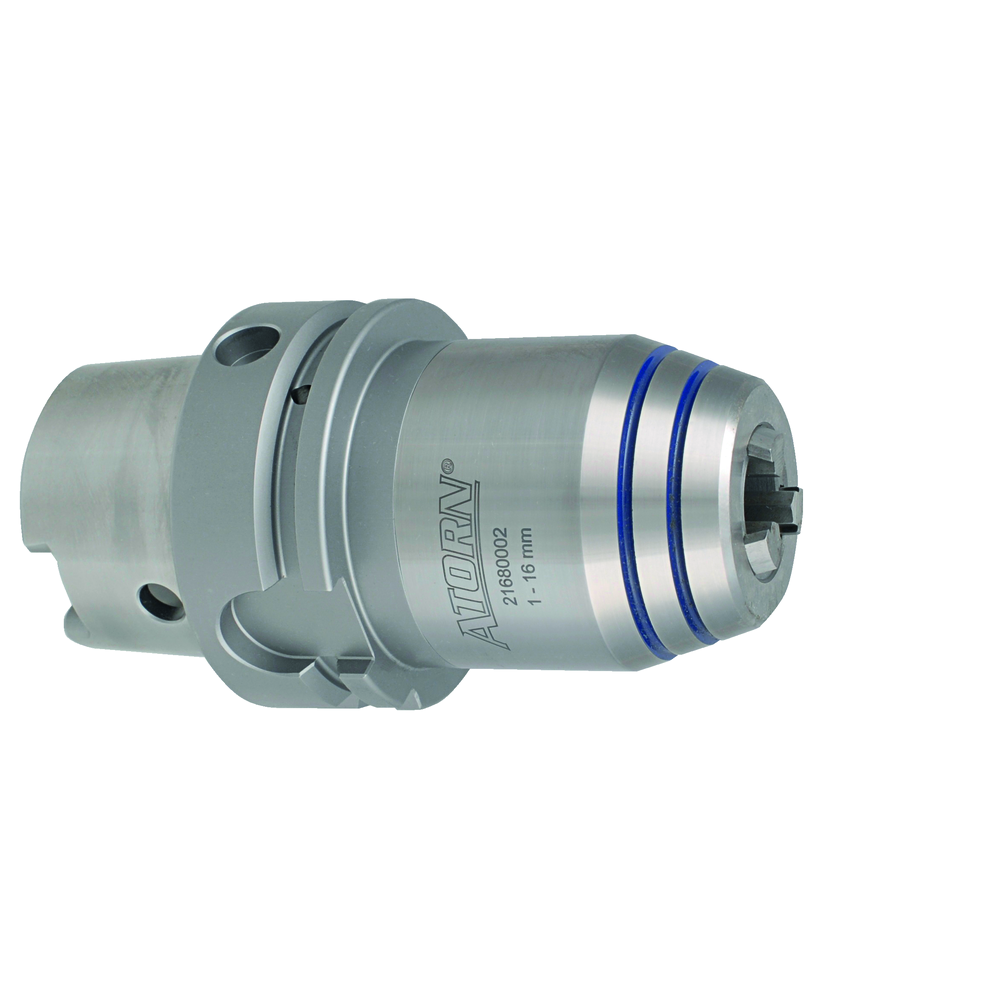

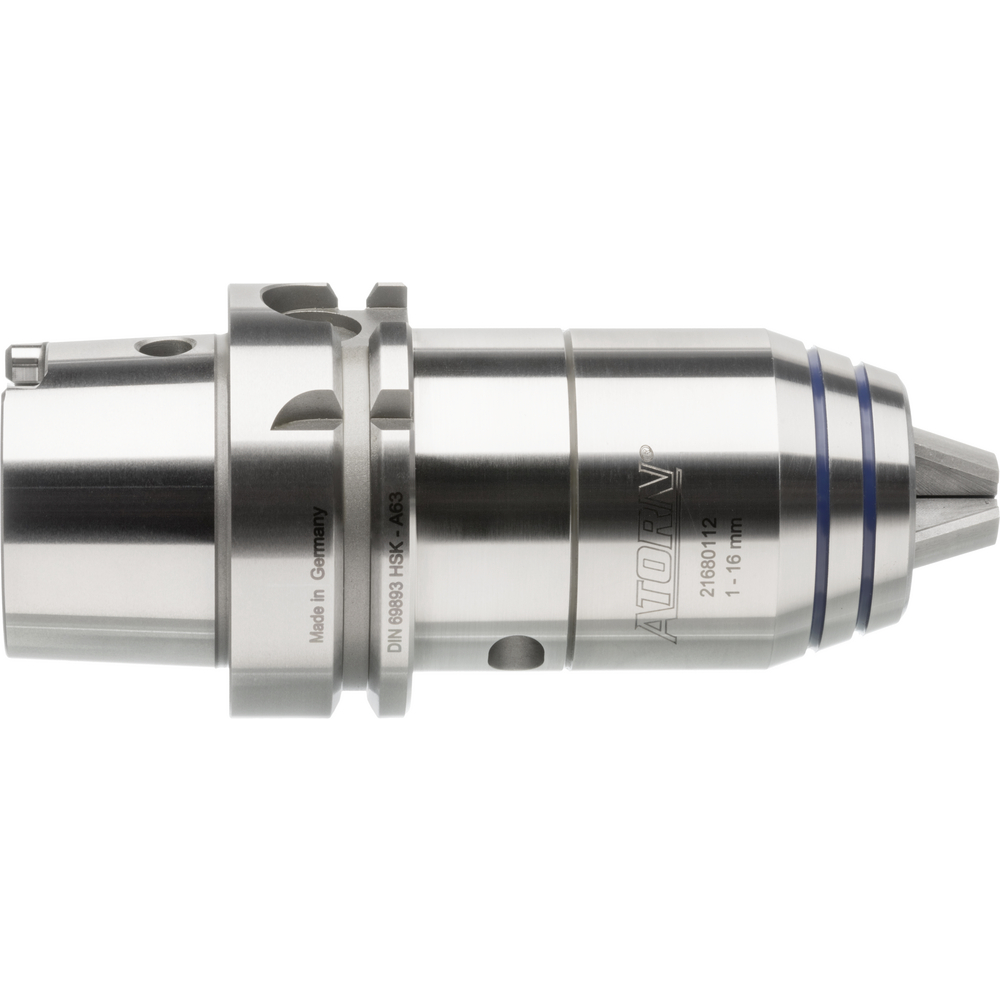

NC short drill chuck DIN69893 HSK-A63, 1-16mm with worm gear, with ICS

NC short drill chuck DIN69893 HSK-A63, 1-16mm with worm gear, with ICS
NC short drill chuck DIN69893 HSK-A63, 1-16mm with worm gear, with ICS NC short drill chuck DIN69893 HSK-A63, 1-16mm with worm gear, with ICS
Price
390,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder
Clamping range 1.0 to 16.0 mm with internal coolant supply

NC short drill chuck with worm gear
  • Clamping by means of an integrated worm gear
  • Clamping range 1.0 to 16.0 mm
  • High true running accuracy, max. 0.03 mm
  • Suitable for clockwise and anti-clockwise rotation
  • Long service life, wearing parts hardened and ground
  • Balanced up to 7000 rpm With a residual imbalance of max. 40 g/mm
  • Supplied with hexagonal key
  • Max. permitted rotational speed with balanced tool 35,000 rpm

DIN 69893 ISO 12164-1 (HSK-A)
  • Internal coolant supply

Article no./ATORN no.
4401296316 / 21680112
Packaging unit
1
Catalogue page
KS-1183

Technical characteristics

A 98 mm
External Ø 50 mm
Max. concentricity 0,03 mm
Max. tightening torque 10 N·m
Min./max. clamping width 1-16 mm
Outer diameter 50 mm
Retaining force 90 N
Shank HSK 63
Taper type HSK 63
Wr. width 4 mm
