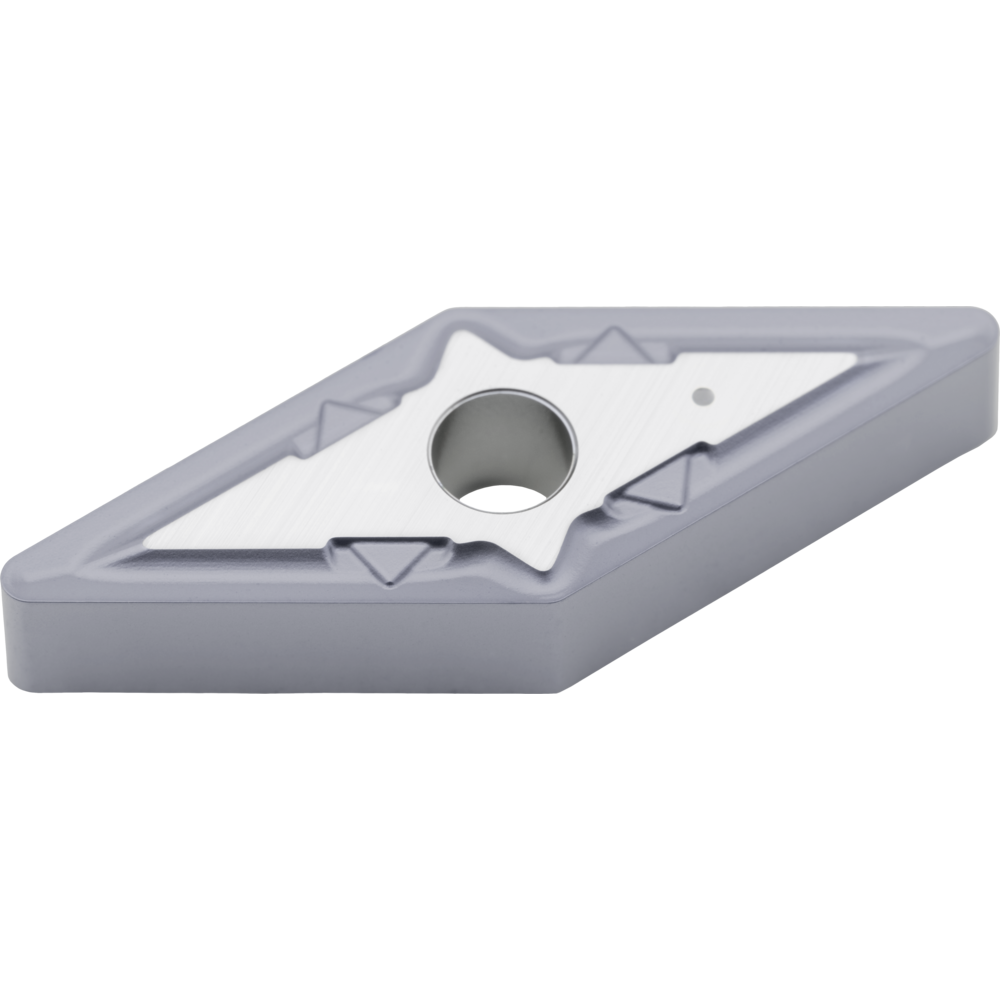

Indexable cutting insert VNMG 160408-SM5 SP10ST

Indexable cutting insert VNMG 160408-SM5 SP10ST
Indexable cutting insert VNMG 160408-SM5 SP10ST Indexable cutting insert VNMG 160408-SM5 SP10ST
Special offer:
6,20 €
(15,50 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 40 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

ISO S

ISO indexable cutting inserts VN.. ISO S
  • 35° rhombic, negative 0°

ISO S

Chip breaker MS1 negative
Article no./ATORN no.
3666870132 / 12370104
Packaging unit
10
Catalogue page

Technical characteristics

Anzahl Stück pro Paket 10 pc.
ap max. 3 mm
ap min. 0,25 mm
Beschichtung PVD
Eckenradius 0,8 mm
Eckenradius Wendeschneidplatte ISO 08
F finishing
F max. 0,3 mm/rev
F min. 0,08 mm/rev
Freiwinkel 0 °
Freiwinkel Wendeschneidplatte ISO N
Hartmetallsorte ISO S10
Hartmetallsortenbereich ISO S
ISO designation VNMG 160408-MS1
ISO H 3
ISO K 3
ISO M 2
ISO N 3
ISO P 3
ISO S 1
ISO-Code Drehen VNMG 160408
ISO-Norm VNMG
M medium
Machining type Medium processing - Universal geometry with wide service range
Quality APS10T
Spanbrecherbezeichnung MS1
Toleranzklasse Wendeschneidplatte ISO M
Vc in Edelstahl max. 230 m/min
Vc in Edelstahl min. 60 m/min
Vc in Sonderlegierungen max. 120 m/min
Vc in Sonderlegierungen min. 30 m/min
Wendeschneidplattendicke 4,76 mm
Wendeschneidplattendicke ISO 04
Wendeschneidplattenform ISO V
Wendeschneidplattengröße ISO 16
Wendeschneidplattentyp ISO G
