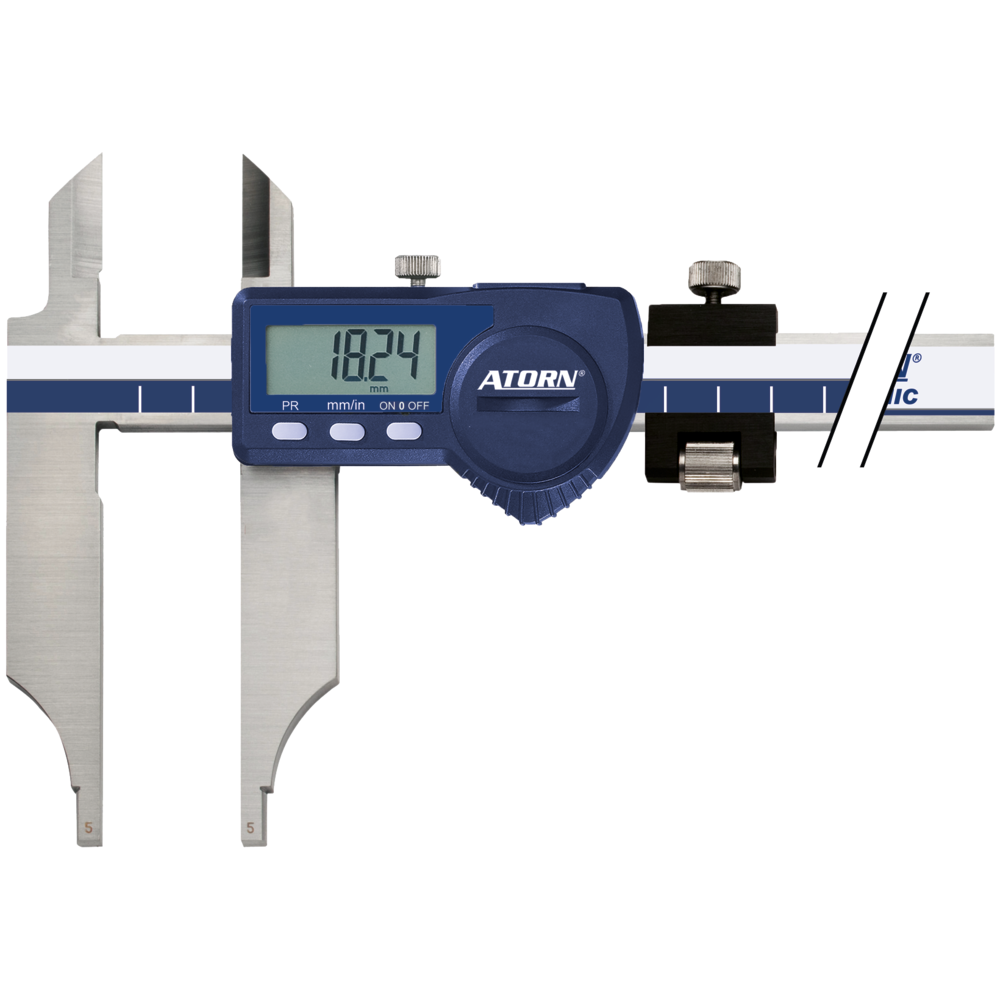

Digital workshop sliding calliper 300mm (0.01mm) with blade tips, fine adjust.

Digital workshop sliding calliper 300mm (0.01mm) with blade tips, fine adjust.
Digital workshop sliding calliper 300mm (0.01mm) with blade tips, fine adjust. Digital workshop sliding calliper 300mm (0.01mm) with blade tips, fine adjust. Digital workshop sliding calliper 300mm (0.01mm) with blade tips, fine adjust.
Price:
695,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Add service

*
*
Data output multiCOM

Digital workshop calliper
  • KEEPTRONIC electronics store the zero point, operating keys lock to prevent accidental alteration of the zero point. Battery life approx. 3 years
  • Data output multiCOM Can be used as USB, Digimatic or RS-232
  • Digit height 12 mm (measurement range 300 mm = 10 mm)
  • Functions: ON/OFF, user-defined zeroing (RESET), mm/inch, PRESET for pre-setting internal measurement values
  • Supplied with CR 2032 battery, No. 548079 6032
  • Optional accessories: data cables, type P-RS 232 / P-Digimatic / P-USB, no. 512521....

With blade tips and fine adjustment
Data output multiCOM

Digital workshop calliper
  • KEEPTRONIC electronics store the zero point, operating keys lock to prevent accidental alteration of the zero point. Battery life approx. 3 years
  • Data output multiCOM Can be used as USB, Digimatic or RS-232
  • Digit height 12 mm (measurement range 300 mm = 10 mm)
  • Functions: ON/OFF, user-defined zeroing (RESET), mm/inch, PRESET for pre-setting internal measurement values
  • Supplied with CR 2032 battery, No. 548079 6032
  • Optional accessories: data cables, type P-RS 232 / P-Digimatic / P-USB, no. 512521....

With blade tips and fine adjustment
Article no./ATORN no.
5005230301 / 31059524
Packaging unit
1
Catalogue page
KS-1351

Technical characteristics

Akku-/Batterieanzahl 1 pc.
Akku-/Batteriebezeichnung 3V CR2032 Lithium
Akku-/Batteriegewicht 0,003 kg
Akku-/Batteriekapazität 200 mAh
Akku-/Batteriespannung 3 V
Data transmission type multiCOM
Data transmission type RS232C/DIGIMATIC/USB
Data transmission type multiCOM
Data transmission type RS232C/DIGIMATIC/USB
Datenkabeltyp D1 | D2 | D3
Digit increment 0,01 mm
Digit increment 0,01 mm
DIN 862
DIN 862
Functions KEEPTRONIC
Functions KEEPTRONIC
Inner measurement scales 10 mm
Inner measurement scales 10 mm
ISO 13385-1
Jaw length 90 mm
Jaw length 90 mm
Kalibriergruppe A
Material property Stainless steel/All parts hardened
Material property Stainless steel/All parts hardened
Max. length measuring range 300 mm
Max. length measuring range 300 mm
Messbereich Länge min. 0 mm
Messbereich Länge min./max. 0-300 mm
Schutzart IP IP 40
WEEE (Rücknahme gebrauchter Elektrogeräte) 06
Weight 1,20 kg
Weight 1,20 kg
With mm / inch switching Yes
With mm / inch switching Yes
Ziffernschrittwert Zoll 0,0005 in
