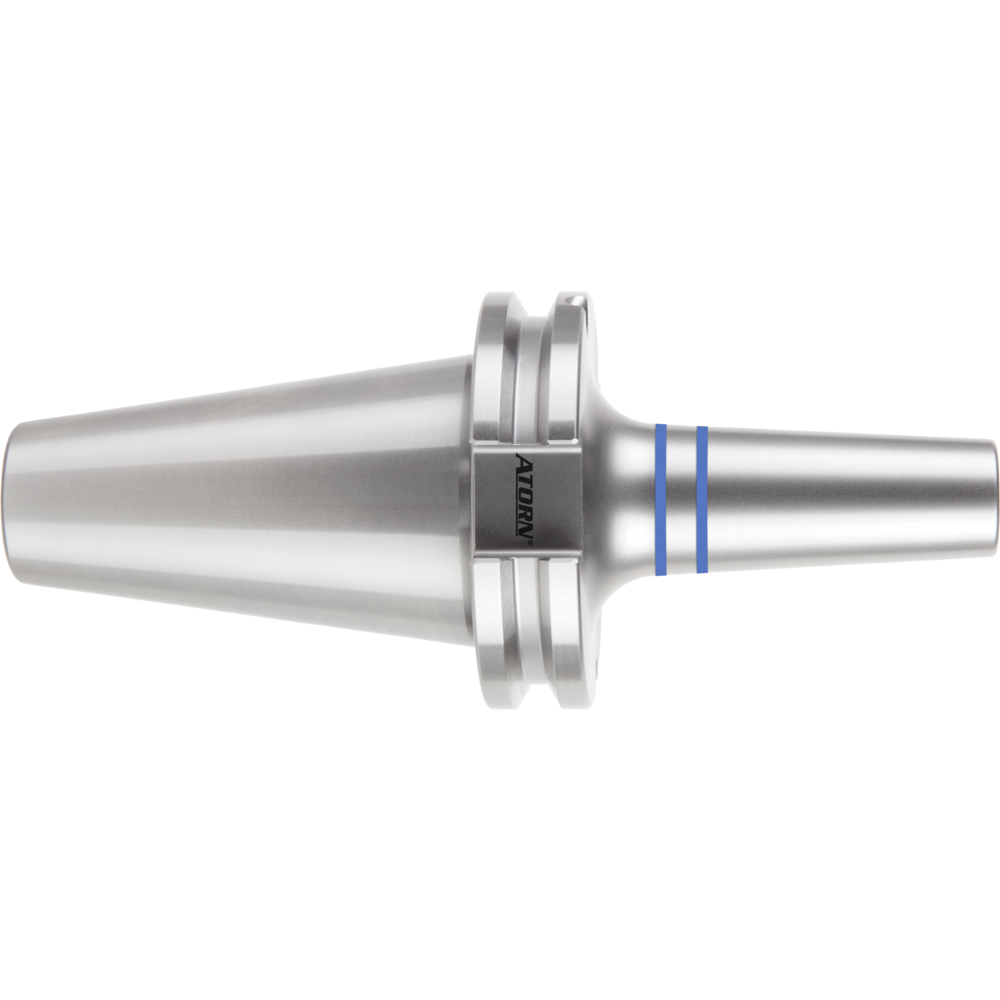

Shrink fit holder SK40 DIN69871/ISO 7388-1 Type AD/AF, 3mm slim version, 3°

Shrink fit holder SK40 DIN69871/ISO 7388-1 Type AD/AF, 3mm slim version, 3°
Shrink fit holder SK40 DIN69871/ISO 7388-1 Type AD/AF, 3mm slim version, 3° Shrink fit holder SK40 DIN69871/ISO 7388-1 Type AD/AF, 3mm slim version, 3°
Price
204,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Shrink fit holding fixtures 3°, slim version
  • High torque transfer
  • High true running accuracies 0.003 mm
  • 3° range, slim version
  • High contour flexibility
  • Heat-resistant mild steel
  • Further shank designs available on request
  • Balanced to G 2.5 / 25,000 rpm
  • With Balluffchip bore

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply

Article no./ATORN no.
4404300003 / 21044753
Packaging unit
1
Catalogue page
KS-1242

Technical characteristics

A 80 mm
Aussendurchmesser 14 mm
Coolant supply Internal axial/internal radial
D 14 mm
D1 3 mm
D2 9 mm
DIN 69871-1
Einspanntiefe max. 28 mm
Form AD/AF
L2 28 mm
L3 16 mm
L4 12 mm
Overall length Slim-long
Rundlauftoleranz 0,003 mm
Shank SK40
Standard constructional dimensions DIN 7388-1
Suitable for thread M6
Taper type SK40
Thread M6
Thread dimension M6
Tool holding device SK 40
Weight 0,9 kg
Wr. width 2 mm
Wuchtgüte G 2,5 bei 25000 1/min
