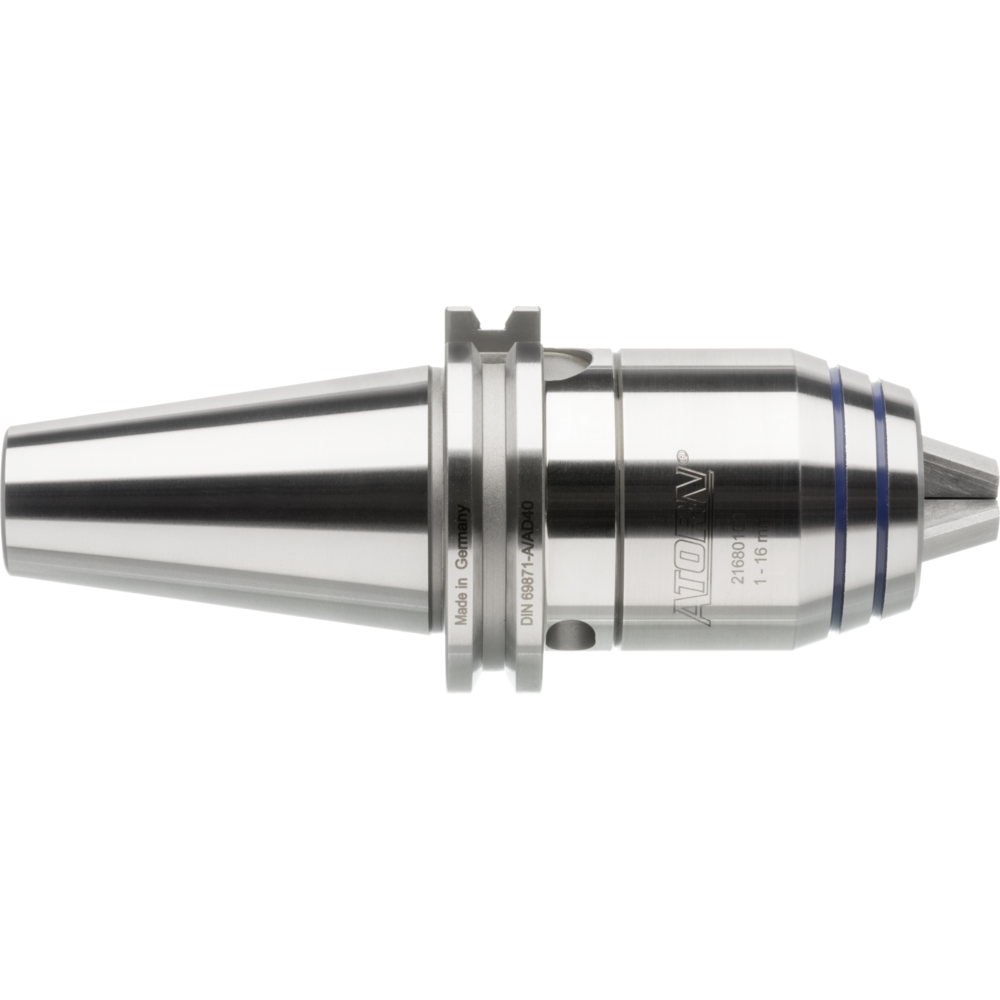

NC short drill chuck DIN69871AD SK40, 1-16mm with worm gear, with ICS

NC short drill chuck DIN69871AD SK40, 1-16mm with worm gear, with ICS
NC short drill chuck DIN69871AD SK40, 1-16mm with worm gear, with ICS NC short drill chuck DIN69871AD SK40, 1-16mm with worm gear, with ICS
Price:
209,00 €
(289,00 € catalogue price / 28% saved)
valid until: 30.06.2024
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Clamping range 1.0 to 16.0 mm with internal coolant supply

NC short drill chuck with worm gear
  • Clamping by means of an integrated worm gear
  • Clamping range 1.0 to 16.0 mm
  • High true running accuracy, max. 0.03 mm
  • Suitable for clockwise and anti-clockwise rotation
  • Long service life, wearing parts hardened and ground
  • Balanced up to 7000 rpm With a residual imbalance of max. 40 g/mm
  • Supplied with hexagonal key
  • Max. permitted rotational speed with balanced tool 35,000 rpm

DIN ISO 7388-1 / DIN 69871 AD
  • Internal coolant supply

Clamping range 1.0 to 16.0 mm with internal coolant supply

NC short drill chuck with worm gear
  • Clamping by means of an integrated worm gear
  • Clamping range 1.0 to 16.0 mm
  • High true running accuracy, max. 0.03 mm
  • Suitable for clockwise and anti-clockwise rotation
  • Long service life, wearing parts hardened and ground
  • Balanced up to 7000 rpm With a residual imbalance of max. 40 g/mm
  • Supplied with hexagonal key
  • Max. permitted rotational speed with balanced tool 35,000 rpm

DIN ISO 7388-1 / DIN 69871 AD
  • Internal coolant supply

Article no./ATORN no.
4401274016 / 21680109
Packaging unit
1
Catalogue page
KS-1176

Technical characteristics

A 80 mm
A 80 mm
Concentricity tolerance 0,030 mm
Coolant supply Yes
Coolant supply Yes
DIN 69871-1
Form AD
Form AD
Länge 2 92 mm
Max. concentricity 0,03 mm
Max. concentricity 0,03 mm
Max. tightening torque 10 N·m
Max. tightening torque 10 N·m
Min./max. clamping width 1-16 mm
Min./max. clamping width 1-16 mm
Outer diameter 50 mm
Outer diameter 50 mm
Retaining force 90 N
Retaining force 90 N
Spannweite max. 16 mm
Spannweite min. 1 mm
Standard constructional dimensions DIN 7388-1
Standard constructional dimensions DIN 7388-1
Taper type SK40
Taper type SK40
Tool holding device SK 40
Tool holding device SK 40
Wr. width 4 mm
Wr. width 4 mm
Wuchtgüte G 40 bei 7000 1/min
