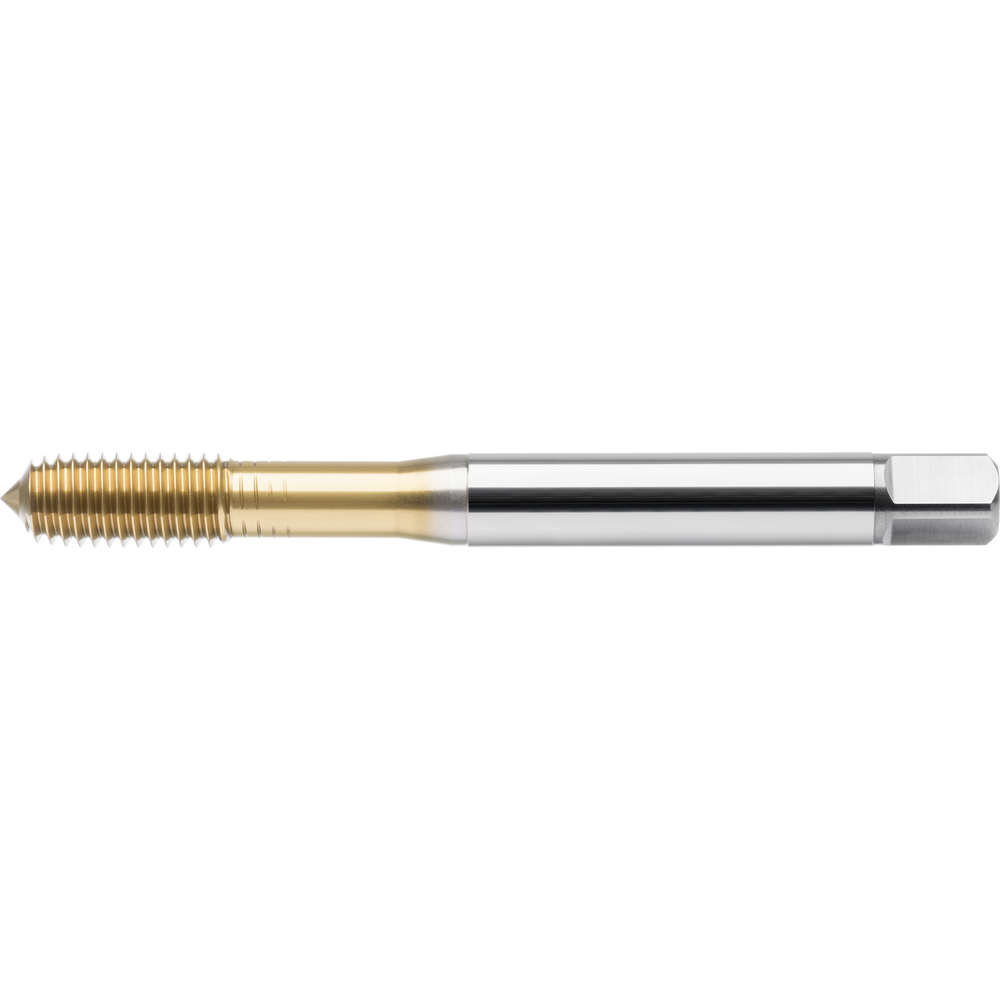

Forming tap HSS-E DIN2174C M2 6GX blind/through-hole TiN

Forming tap HSS-E DIN2174C M2 6GX blind/through-hole TiN
Forming tap HSS-E DIN2174C M2 6GX blind/through-hole TiN Forming tap HSS-E DIN2174C M2 6GX blind/through-hole TiN
Price
45,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Machine forming taps tolerance 6GX
  • Metric ISO-6GX thread
  • Form C, 2-3 thread chamfer
  • without oil grooves
  • Constructional dimensions DIN 2174
  • Cutting material: HSS-E TiN
  • For blind-hole and through-hole threads
  • For materials with good cold-forming properties and a min. expansion of 8 %

Article no./ATORN no.
1354500020 / 10483180
Packaging unit
1
Catalogue page
KS-0281
Cutting values
KS-0281

Technical characteristics

C 2,1 mm
Coating TiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE
D M 2 mm
D1 2,8 mm
DIN 2174
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C
Gewindeart x Nenndurchmesser M2
L 45 mm
L1 8 mm
L2 - mm
Max. thread depth 1xD
Nenndurchmesser 2 mm
Passend für Gewinde M2-M12
Pitch 0,4 mm
Tapping hole Ø 1,85 mm
Thread M
Thread angle 60 °
Threaded hole type Clearance/stud hole
Tolerance of screw taps ISO 3 (6G)
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
