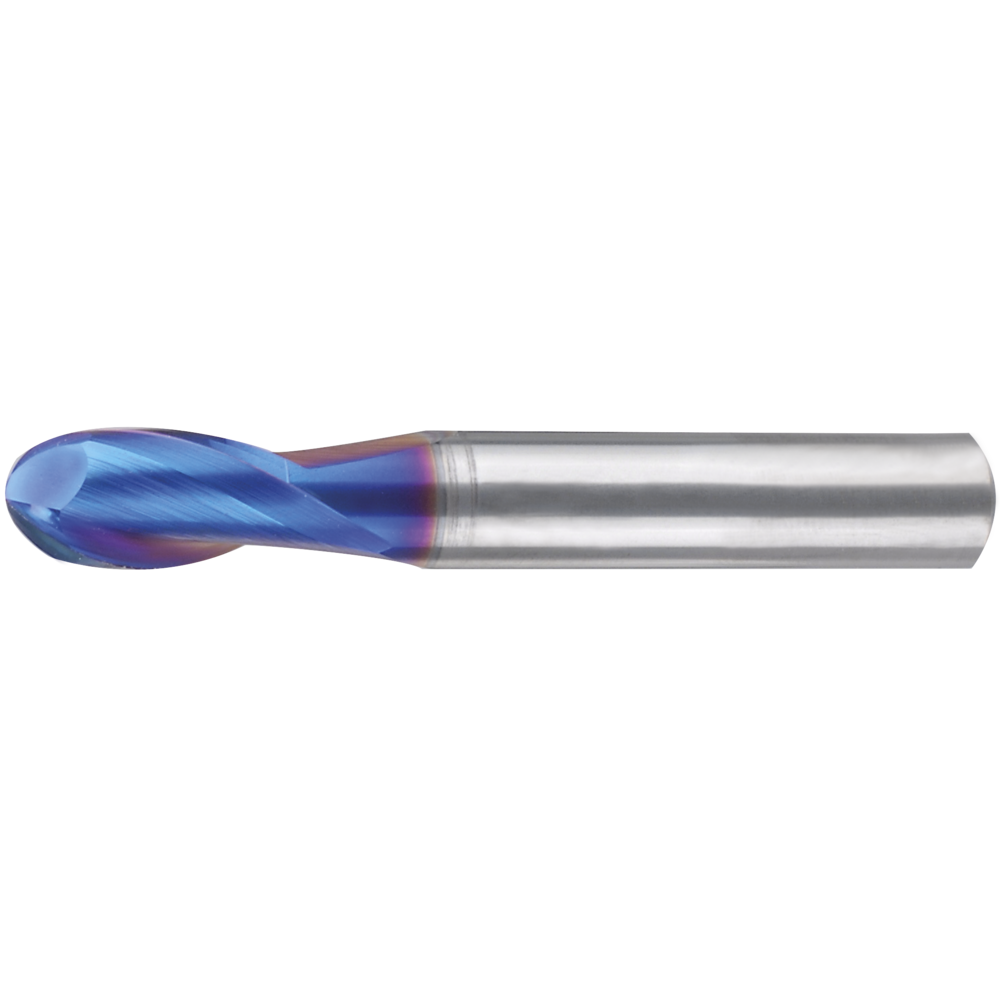

Sol. carb. radius mill. cutter 30° HR 3 mm (St/INOX/CI/NF) 2 S., sh., HB, AlTiN+

Sol. carb. radius mill. cutter 30° HR 3 mm (St/INOX/CI/NF) 2 S., sh., HB, AlTiN+
Sol. carb. radius mill. cutter 30° HR 3 mm (St/INOX/CI/NF) 2 S., sh., HB, AlTiN+ Sol. carb. radius mill. cutter 30° HR 3 mm (St/INOX/CI/NF) 2 S., sh., HB, AlTiN+
Price:
10,00 €
prices excl. vat plus shipping costs

Stock status
24 immediately available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Radius milling cutter
  • 2 cutting edges, short, 30° right-hand cutting
  • Eccentric relief grinding
  • Material: Fine grain solid carbide

Article no./ATORN no.
2542060030
Packaging unit
100
Catalogue page
DAILY-07

Technical characteristics

Coating AlTiN+
Cutting data Cutting angle Information - no
Cutting material Solid carbide
D 3 mm
D1 6 mm
Feed for side milling fz steel < 1000 mm² 0,011 mm/tooth
Jaw quantity 2 cutting edges
L 50 mm
L1 5 mm
Milling application Side Ramp Plunge
Shank Straight with driving plane, DIN 6535 HB
Spiral angle 30° RH helix angle

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
STEP Download
DXF Download
