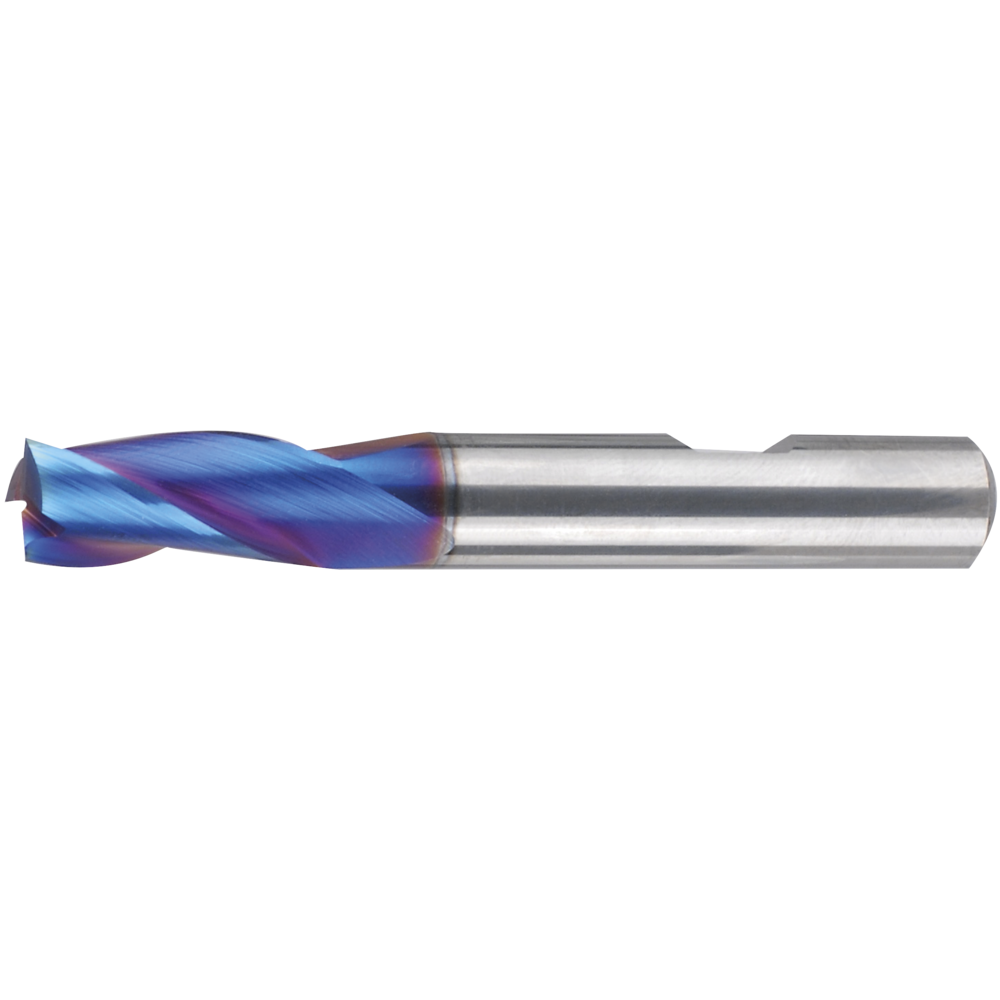

Solid carbide mini end milling cutter 30° 1.5 mm Z=3 HA, AlTiN+

Solid carbide mini end milling cutter 30° 1.5 mm Z=3 HA, AlTiN+
Solid carbide mini end milling cutter 30° 1.5 mm Z=3 HA, AlTiN+ Solid carbide mini end milling cutter 30° 1.5 mm Z=3 HA, AlTiN+
Price:
9,00 €
prices excl. vat plus shipping costs

Stock status
4 immediately available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Mini end milling cutter
  • Straight shank with driving plane, up to Ø 1.5 mm smooth
  • Cutting material: ultra-fine grain solid carbide, AlTiN+ coated
  • Note: This milling cutter is not cost-effective to re-sharpen. It is more economical to use the cutters up to their wear limit and replace them with brand new tools.
  • From Ø 2 mm with clamping surface in accordance with DIN 6535 HB

Article no./ATORN no.
2542010015
Packaging unit
100
Catalogue page
DAILY-04

Technical characteristics

Coating AlTiN+
Cutting data Cutting angle Information - no
Cutting material Solid carbide
D 1,5 mm
D1 3 mm
Feed for grooving fz steel < 1000 mm² 0,007 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,010 mm/tooth
Jaw quantity 3 cutting edges
L 38 mm
L1 2 mm
Milling application Side Ramp Plunge
Shank Straight, DIN 6535 HA
Spiral angle 30° RH helix angle

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
STEP Download
DXF Download
