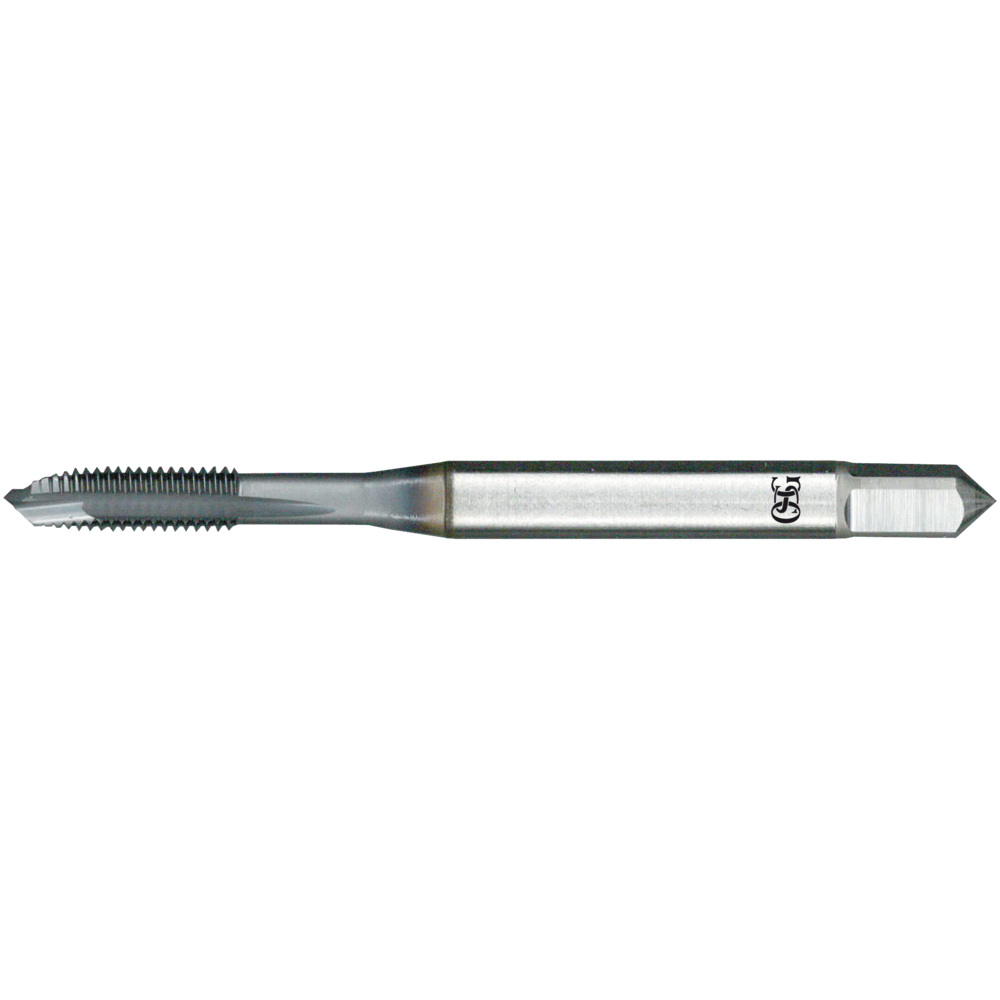

Machine tap HSS-E-PM A-OIL-POT DIN371, M6x1

Machine tap HSS-E-PM A-OIL-POT DIN371, M6x1
Machine tap HSS-E-PM A-OIL-POT DIN371, M6x1 Machine tap HSS-E-PM A-OIL-POT DIN371, M6x1
Price:
50,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

A-OIL-POT machine tap, with internal cooling
  • ISO2 6HX metric thread
  • Straight-fluted with spiral point
  • Type B, 4-thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • For through-hole threads
  • With internal cooling

A-OIL-POT machine tap, with internal cooling
  • ISO2 6HX metric thread
  • Straight-fluted with spiral point
  • Type B, 4-thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • For through-hole threads
  • With internal cooling

Article no./ATORN no.
1334560060
Vendor Article no.
48214155
Packaging unit
1
Catalogue page
KS-0254
Cutting values
SW-0398

Technical characteristics

C 4,9 mm
C 4,9 mm
Coating TiCN
Coating TiCN
Coolant design Internal radial
Coolant supply Intern radial
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 6 mm
D M 6 mm
D1 6 mm
D1 6 mm
DIN DIN 371/376
Form/Chamfer B, 4-thread chamfer
Form/Chamfer B
L 80 mm
L 80 mm
L1 19 mm
L1 19 mm
L2 30 mm
L2 30 mm
Max. thread depth Gewinde 2,5xD
Pitch 1,0 mm
Pitch 1,0 mm
Spiral angle Straight-fluted
Standard constructional dimensions DIN DIN 371/376
Standard tolerance ISO 2 6HX
Tapping hole Ø 5 mm
Tapping hole Ø 5 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type for through-hole threads
Threaded hole type Durchgangsloch
Tolerance of screw taps ISO 2X (6HX)
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
titanium alloys
titanium alloys

very suitable
suitable
