Einbaumessschieber digital 300mm/0-12' (0,01mm/0.0005') horizontal

Einbaumessschieber digital 300mm/0-12' (0,01mm/0.0005') horizontal
Einbaumessschieber digital 300mm/0-12' (0,01mm/0.0005') horizontal
Price:
576,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

Add service

*
*

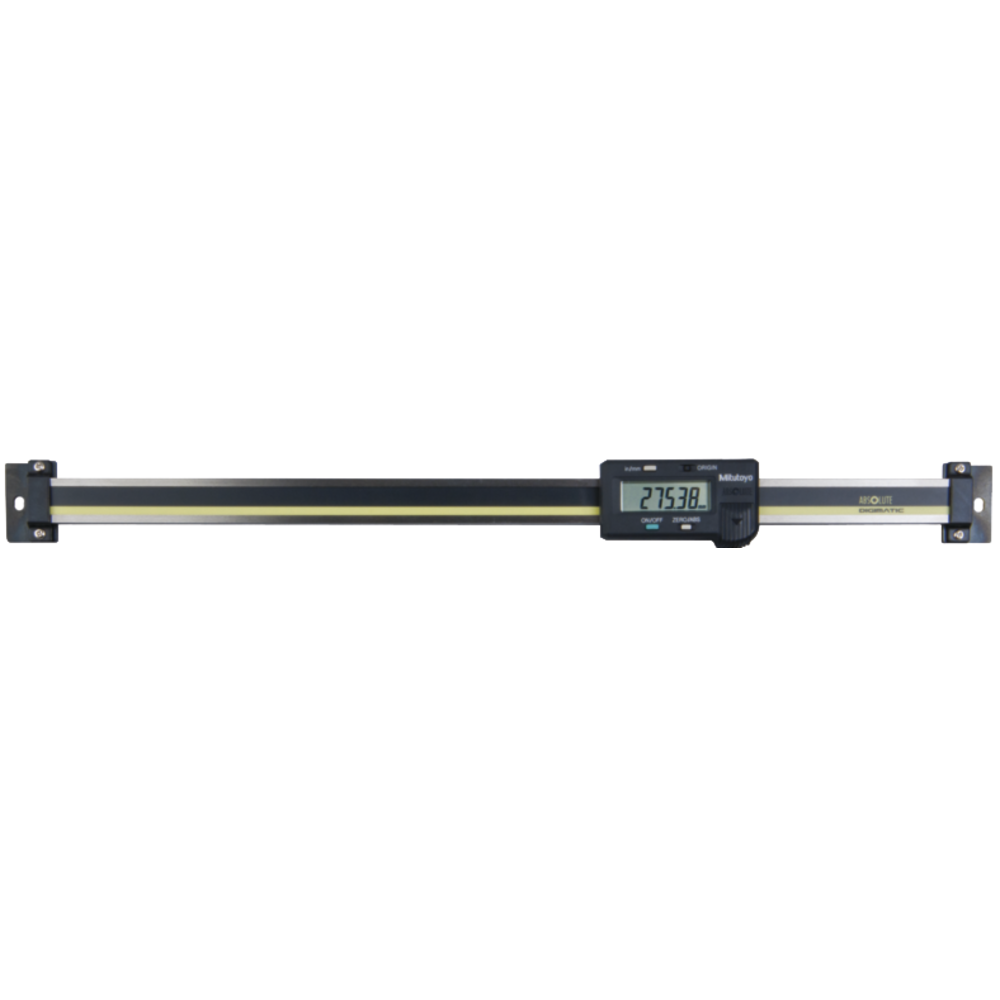

Built-in sliding calliper
  • With data output
  • Stainless steel
  • "ABSOLUTE" scale
  • Capacitive measuring system with dirt wiper in the slider
  • Battery life approx. 20,000 hours
  • Readings: 0.01 mm
  • With threaded bores (2x M3 x 0.5) on the rear side of the display
  • Functions:
    1 ON/OFF
    2 Zero point at battery change (ORIGIN)
    3 user-defined zeroing (ZERO/ABS), battery check
  • Supplied in cardboard packaging with SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type C, no. 563100 0021 (1 m), no. 563100 0002 (2 m); USB cable type C-USB, no. 563110 0003

Built-in sliding calliper
  • With data output
  • Stainless steel
  • "ABSOLUTE" scale
  • Capacitive measuring system with dirt wiper in the slider
  • Battery life approx. 20,000 hours
  • Readings: 0.01 mm
  • With threaded bores (2x M3 x 0.5) on the rear side of the display
  • Functions:
    1 ON/OFF
    2 Zero point at battery change (ORIGIN)
    3 user-defined zeroing (ZERO/ABS), battery check
  • Supplied in cardboard packaging with SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type C, no. 563100 0021 (1 m), no. 563100 0002 (2 m); USB cable type C-USB, no. 563110 0003

Article no./ATORN no.
5720170300
Vendor Article no.
572-213-10
Packaging unit
1
Catalogue page

Technical characteristics

Accuracy 0,04 mm
Data transmission type DIGIMATIC/USB
Digit increment 0,01 mm
Error limit 0,04 mm
Max. length measuring range 300 / 12' mm
Reading 0.01 mm readings
