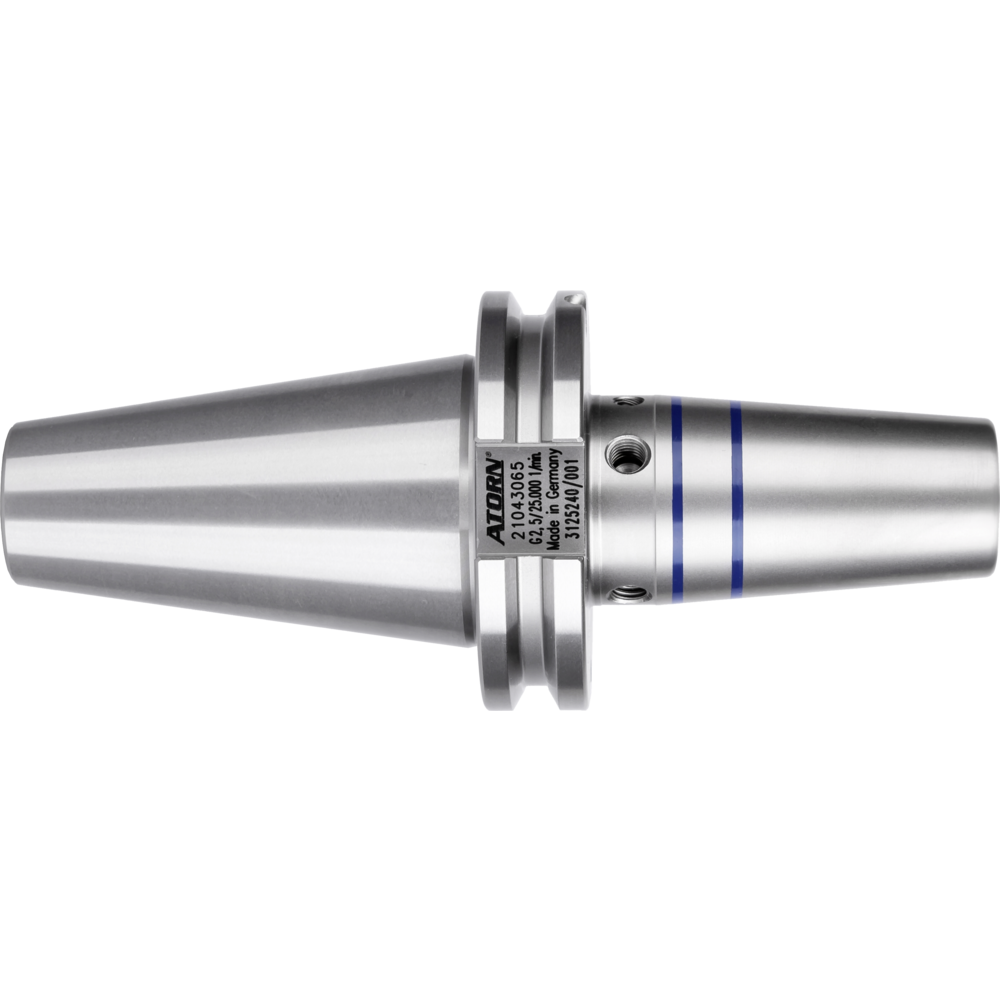

Shrink fit holder DIN 69871-AD/B, SK40 with coolant bore, 3mm, short

Shrink fit holder DIN 69871-AD/B, SK40 with coolant bore, 3mm, short
Shrink fit holder DIN 69871-AD/B, SK40 with coolant bore, 3mm, short Shrink fit holder DIN 69871-AD/B, SK40 with coolant bore, 3mm, short
Price:
209,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Shrink-fit holding fixtures 4.5°
  • High true running accuracy of below 0.003 mm
  • Highest dimensional accuracy of the workpiece
  • High torque transfer
  • 4.5° range
  • High contour flexibility
  • Heat-resistant mild steel
  • Balanced to G 2.5 / 25,000 rpm
  • With Balluffchip bore

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply

Shrink-fit holding fixtures 4.5°
  • High true running accuracy of below 0.003 mm
  • Highest dimensional accuracy of the workpiece
  • High torque transfer
  • 4.5° range
  • High contour flexibility
  • Heat-resistant mild steel
  • Balanced to G 2.5 / 25,000 rpm
  • With Balluffchip bore

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply

Article no./ATORN no.
4403300308 / 21044724
Packaging unit
1
Catalogue page
KS-1242

Technical characteristics

A 80 mm
A 80 mm
Aussendurchmesser 17 mm
Coolant supply Internal axial/internal radial
Coolant supply Internal axial/internal radial
D 17 mm
D 17 mm
D1 3 mm
D1 3 mm
D2 10 mm
D2 10 mm
Design With cooling channels
Design With cooling channels
DIN 69871-1
Einspanntiefe max. 28 mm
Form AD/AF
Form AD/AF
L2 28 mm
L2 28 mm
L3 16 mm
L3 16 mm
L4 12 mm
L4 12 mm
Rundlauftoleranz 0,003 mm
Standard constructional dimensions DIN 7388-1
Standard constructional dimensions DIN 7388-1
Suitable for thread M6
Taper type SK40
Taper type SK40
Thread dimension M6
Thread dimension M6
Tool holding device SK 40
Tool holding device SK 40
Weight 0,9 kg
Weight 0,9 kg
Wr. width 2 mm
Wr. width 2 mm
Wuchtgüte G 2,5 bei 25000 1/min
