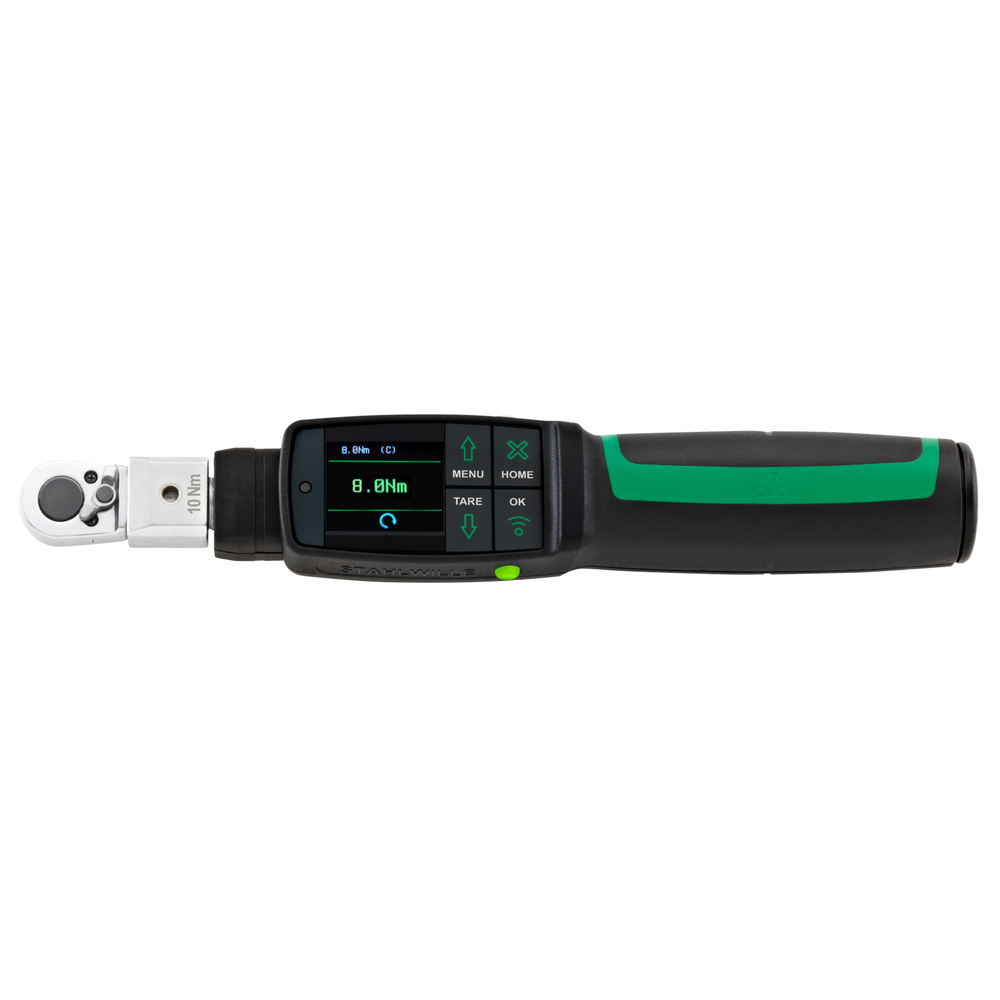

Torque wrenches MANOSKOP® 714

• Releasing, with display
• 4 measurement modes (torque, torsion angle, torque with reference torsion angle, torsion angle with reference torque)
• High-resolution colour graphic display with additional side signal lights
• User-configurable menu structure
• Optional: Li-Ion battery and charging unit
• 3 function modes: releasing, peak (displays peak value) and track (displays current value)
• Micro USB interface
• Bayonet catch for battery compartment
• QuickRelease safety lock - snap-in tool change system
• Torsion angle measurement with no reference arm
• Data storage (< 2,500 driving operations)
• Up to 200 screw joints can be programmed in a maximum of 25 sequences
• Various tolerance limits can be set depending on the screw joint
• Acoustic and optical screw joint evaluation
• Quick and precise configuration via keypad
• Automatic key lock to prevent accidental adjustment
• Overload protection with acoustic and optical warning signal and forced release (clockwise)
• Automatic notification of the next calibration date based on time period and/or number of uses
• Units of measurement: N·m, ft·lb, in·lb
• Correct tightening torque automatically on inputting a pitch variation
• Ready to reuse instantly once the load is removed
• Clockwise and anti-clockwise tightening; the snap-in tool may need to be rotated 180° for anti-clockwise tightening in releasing mode.
• Tangible and audible release signal
• Torque and torsion angle simultaneously visible
• Measurement not dependent on the force application point
• Easy to handle thanks to an ergonomically shaped grip (resistant to oils, grease, fuel, brake fluid and Skydrol)
• Incl. 2 certificates (torque, torsion angle)
• Supplied with SENSOMASTER Basic software, USB cable and 4x AAA/LR03 Micro batteries (1.5 V). 1.2 V Micro NiMH AAA batteries can be used
• Torsion angle display resolution 0.1°
• Torsion angle display accuracy ± 1 %, ± 1 digit
• Torque display resolution < 60 N·m: 0.01 N·m; > 60 N·m: 0.1 N·m
• Torque display accuracy ± 2 %, ± 1 digit

With snap-in reversible ratchet
