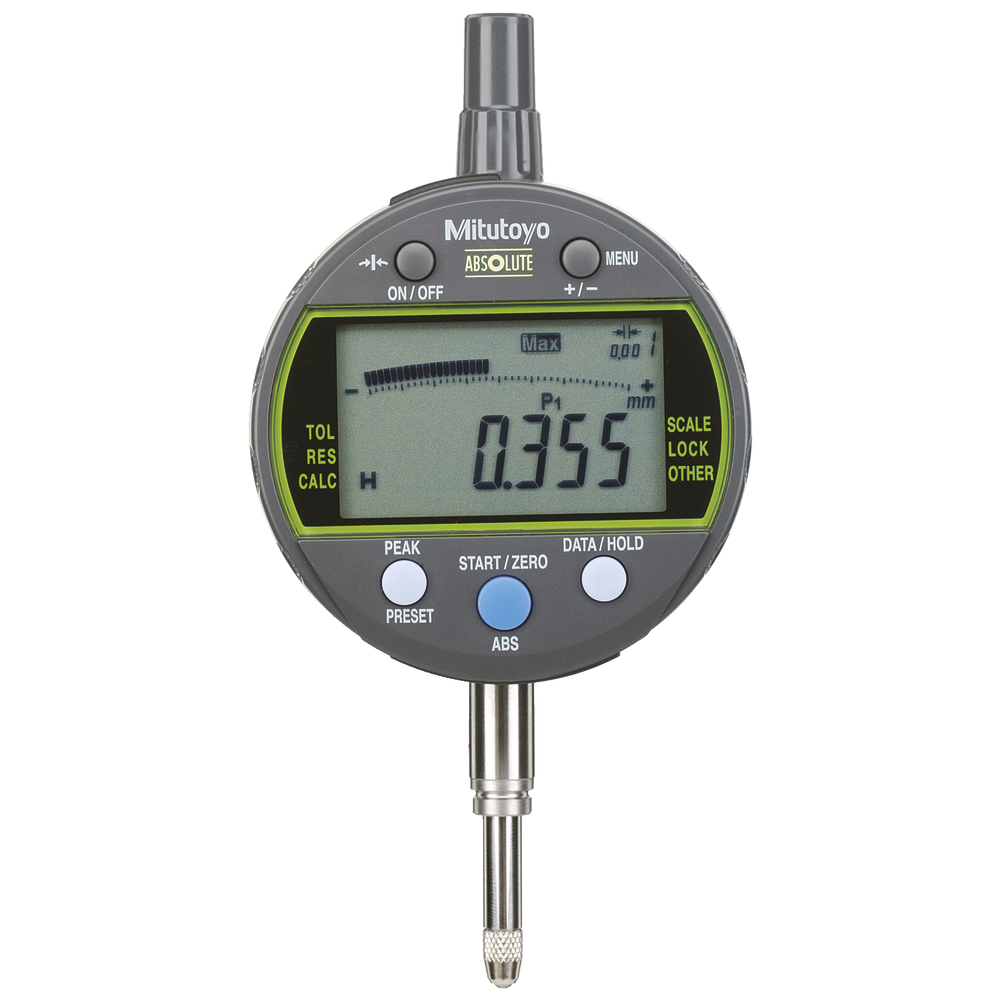

Digital dial indicator 12,7mm 0,001/0,01mm ID-C with max/min hold mode

Digital dial indicator 12,7mm 0,001/0,01mm ID-C with max/min hold mode
Digital dial indicator 12,7mm 0,001/0,01mm ID-C with max/min hold mode Digital dial indicator 12,7mm 0,001/0,01mm ID-C with max/min hold mode Digital dial indicator 12,7mm 0,001/0,01mm ID-C with max/min hold mode
Price:
516,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
IDC digital ABSOLUTE dial indicator for run-out measurements
  • Dial indicator for run-out measurement; allows max., min. and difference values (TIR) to be retrieved
  • ABSOLUTE scale
  • Combined digital and analogue display
  • Display component can be rotated through 330° for better readability
  • Programmable Ax factor (x = spindle
  • Adjustable resolution 0.01 mm / 0.001 mm
  • 3 memory slots for pre-set and tolerance values
  • Configurable via PC (special interface optional)
  • Contact point M2.5,
  • Clamping shank Ø 8 mm
  • Functions: ON/OFF, MENU for switching between max. / min. / TIR modes, PRESET/SET for pre-setting values / inputting tolerances, START/ZERO/ABS for user-defined zeroing / incremental mode, view selection in tolerance mode, +/- to reverse measuring direction
  • Supplied in moulded packaging with CR 2032 battery no. 548079 6032
  • Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006

IDC digital ABSOLUTE dial indicator for run-out measurements
  • Dial indicator for run-out measurement; allows max., min. and difference values (TIR) to be retrieved
  • ABSOLUTE scale
  • Combined digital and analogue display
  • Display component can be rotated through 330° for better readability
  • Programmable Ax factor (x = spindle
  • Adjustable resolution 0.01 mm / 0.001 mm
  • 3 memory slots for pre-set and tolerance values
  • Configurable via PC (special interface optional)
  • Contact point M2.5,
  • Clamping shank Ø 8 mm
  • Functions: ON/OFF, MENU for switching between max. / min. / TIR modes, PRESET/SET for pre-setting values / inputting tolerances, START/ZERO/ABS for user-defined zeroing / incremental mode, view selection in tolerance mode, +/- to reverse measuring direction
  • Supplied in moulded packaging with CR 2032 battery no. 548079 6032
  • Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006

Article no./ATORN no.
5120261211
Vendor Article no.
543-300B-10
Packaging unit
1
Catalogue page
KS-1409

Technical characteristics

Data transmission type DIGIMATIC/USB
DIN Company standard
Display Digital
Error limit 0,003 mm
Error limit 0,003 mm
External ring Ø 60,5 mm
Function Run-out measurement
Functions Absolute function
Housing outer diameter 60,5
Measurement range 12,7 mm
Measurement range 12,7 mm
Measurement system ABSOLUTE
Measuring functions Run-out measurement
Reading 0,001 / 0,01 mm
Standard constructional dimensions DIN Non-DIN
