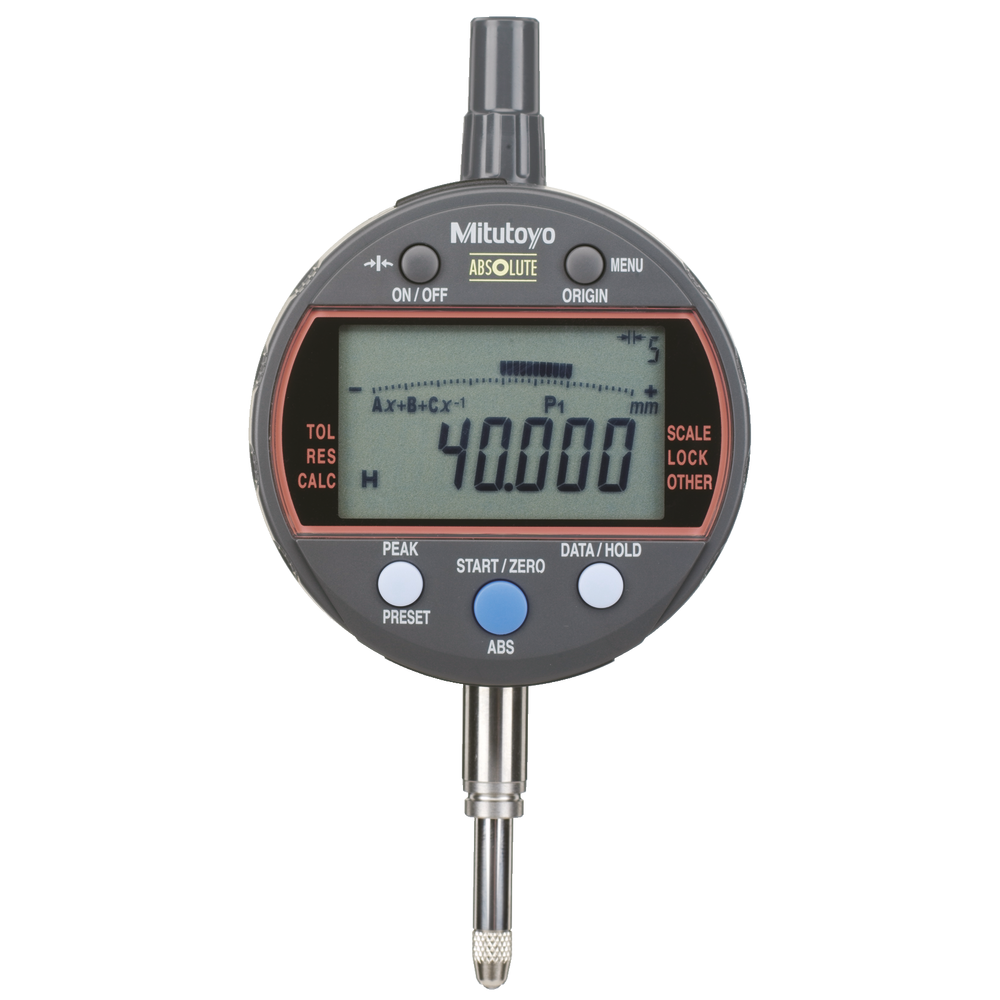

IDC digital ABSOLUTE dial indicator with calculation function

• ABSOLUTE scale
• Suitable for use with chamfer gauges or measuring bridges for determining diameters
• Freely programmable calculation formula Ax + B + Cx-1
• Combined digital/analogue display
• Resolution can be selected in 12 steps, 0.0002 mm to 1 mm
• Display part can be rotated through 330° for better reading
• 3 memory slots for pre-set and tolerance values
• Configurable via PC (special interface optional)
• Clamping shank Ø 8 mm
• Probe tip thread M2.5
• Functions: Zeroing (ORIGIN), input tolerance values (TOL), input user-defined values (PRESET), confirm set formula, data transfer (DATA), hold value (HOLD), input calculation function (MODE), on/off
• Supplied in moulded packaging with battery CR 2032 No. 548079 6032
• Special accessories: Digimatic cable type F, No. 563100 0051 (1 m), No. 563100 0052 (2 m), USB cable type F-USB, no. 563110 0006
