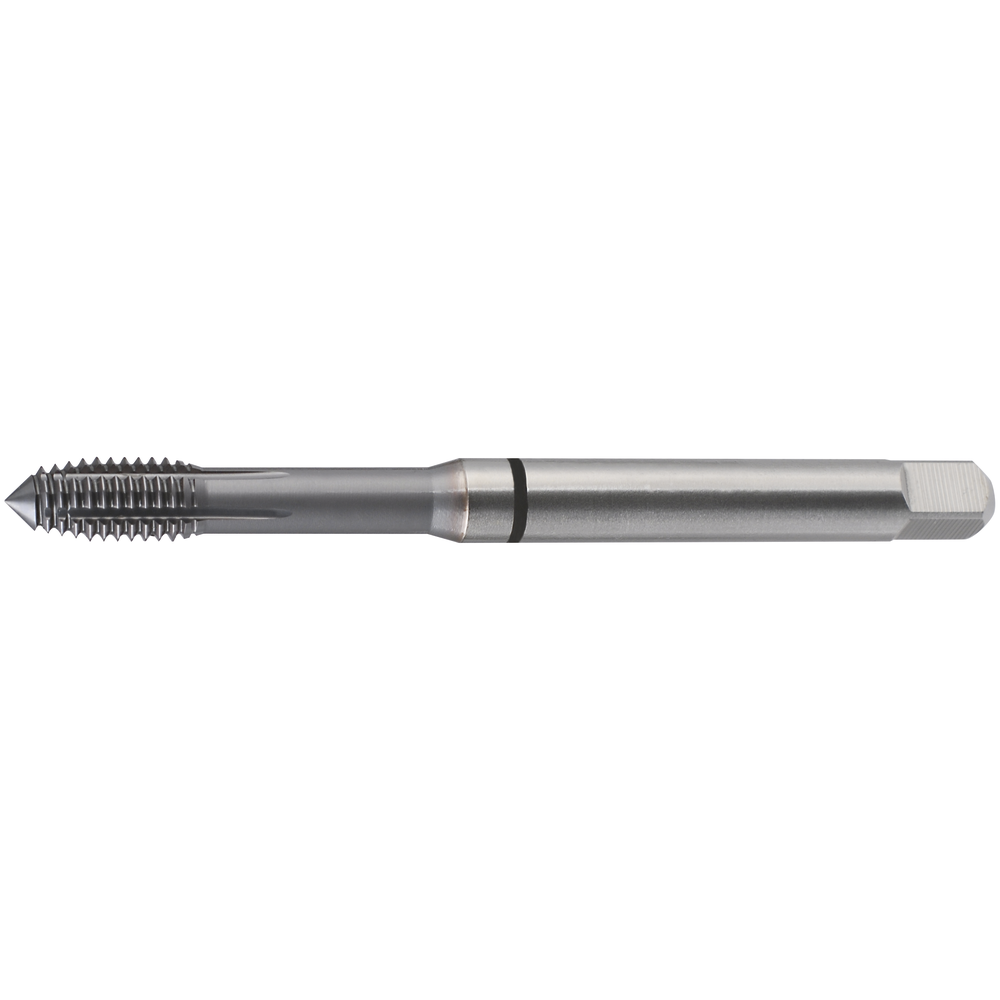

Forming tap HSS-E PM DIN371 synchro, M3 through-hole (universal) TiCN

Forming tap HSS-E PM DIN371 synchro, M3 through-hole (universal) TiCN
Forming tap HSS-E PM DIN371 synchro, M3 through-hole (universal) TiCN Forming tap HSS-E PM DIN371 synchro, M3 through-hole (universal) TiCN
Price:
62,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Universal Synchro machine forming tap
  • ISO 6HX metric thread
  • With oil grooves
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • Shank tolerance h6
  • Possible thread depth 2xD
  • Synchro tool for CNC machines (rigid clamping or minimal length compensation)

Universal Synchro machine forming tap
  • ISO 6HX metric thread
  • With oil grooves
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • Shank tolerance h6
  • Possible thread depth 2xD
  • Synchro tool for CNC machines (rigid clamping or minimal length compensation)

Article no./ATORN no.
1347300030 / 11290857
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Form/Chamfer C
Form/Chamfer C
L 56 mm
L 56 mm
L1 5 mm
L1 5 mm
L2 18 mm
L2 18 mm
Max. thread depth 2xD
Max. thread depth 2xD
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,75 mm
Tapping hole Ø 2,75 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/stud hole
Threaded hole type Clearance/stud hole
Tolerance of screw taps ISO 2X (6HX)
Tolerance of screw taps ISO 2X (6HX)
Twist angle 0°
Twist angle 0°
Type Synchro
Type Synchro

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass short
brass short
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
