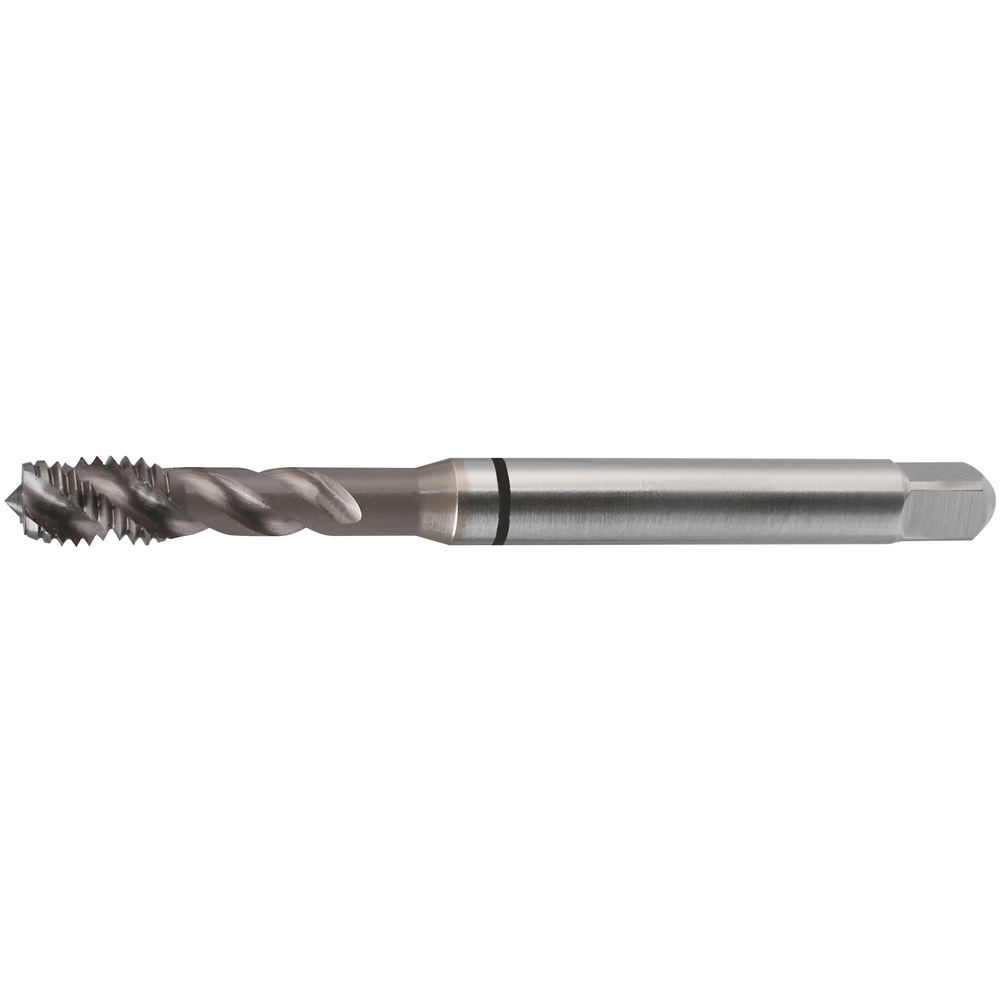

Machine tap HSS-E PM DIN371 45° synchro, M3 blind-hole thread (universal) TiCN

Machine tap HSS-E PM DIN371 45° synchro, M3 blind-hole thread (universal) TiCN
Machine tap HSS-E PM DIN371 45° synchro, M3 blind-hole thread (universal) TiCN Machine tap HSS-E PM DIN371 45° synchro, M3 blind-hole thread (universal) TiCN
Special offer:
19,44 €
(46,30 € catalogue price / 58% saved)
prices excl. vat plus shipping costs

Stock status
Only 0 pieces left!
Add to shopping cart
Tool Finder
Universal Synchro machine tap
  • ISO 6HX metric thread
  • Type C, 2 to 3-thread chamfer, for blind-hole threads
  • 45°, spiral-fluted
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • Shank tolerance h6
  • Possible thread depth 2xD
  • Synchro tool for CNC machines (rigid clamping or minimal length compensation)

Universal Synchro machine tap
  • ISO 6HX metric thread
  • Type C, 2 to 3-thread chamfer, for blind-hole threads
  • 45°, spiral-fluted
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • Shank tolerance h6
  • Possible thread depth 2xD
  • Synchro tool for CNC machines (rigid clamping or minimal length compensation)

Article no./ATORN no.
1347250030 / 11290813
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
Form/Chamfer C, 2 to 3-thread chamfer
Form/Chamfer C, 2 to 3-thread chamfer
L 56 mm
L 56 mm
L1 5 mm
L1 5 mm
L2 18 mm
L2 18 mm
Pitch 0,5 mm
Pitch 0,5 mm
Spiral angle 45° RH helix angle
Spiral angle 45° RH helix angle
Standard constructional dimensions DIN DIN 371
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6HX
Standard tolerance ISO 2 6HX
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60° thread angle °
Thread depth 2xD thread
Thread depth 2xD thread
Threaded hole type for blind-hole threads
Threaded hole type for blind-hole threads
Type Synchro
Type Synchro

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
