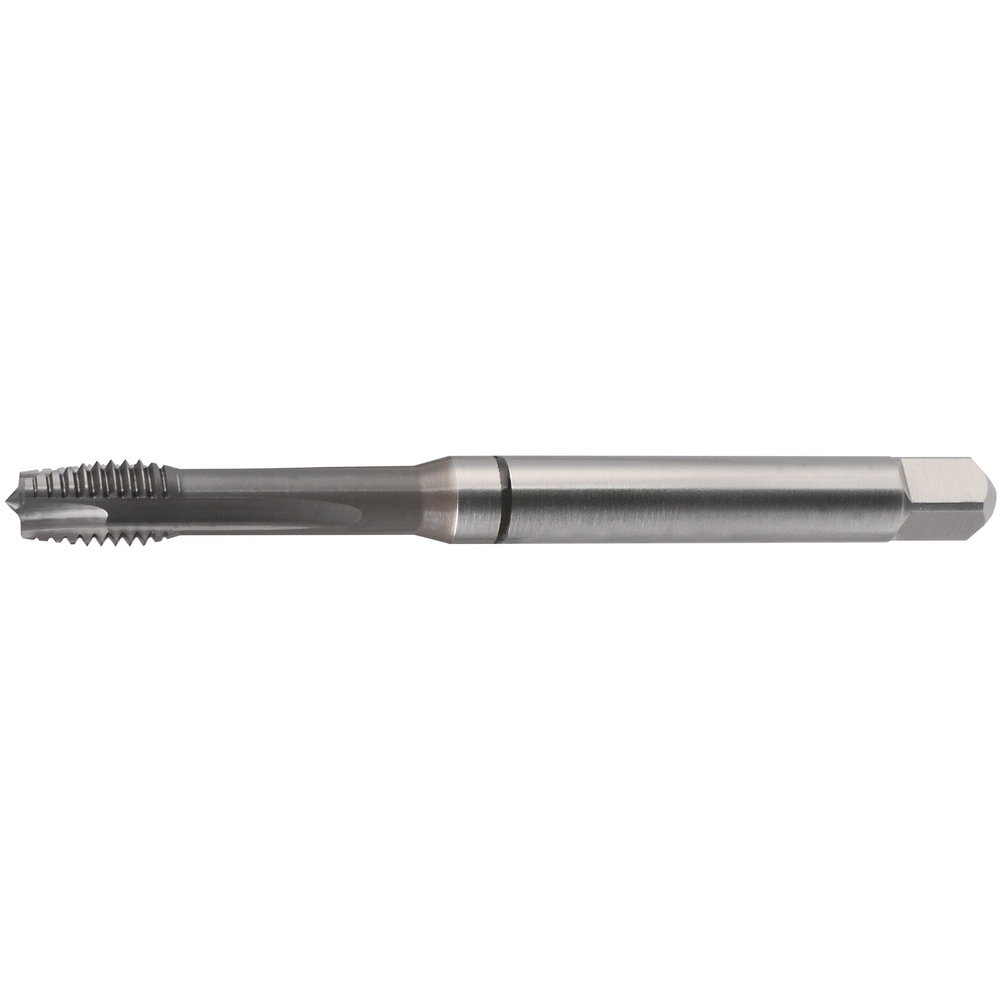

Machine tap HSS-E PM DIN371 synchro, M3 through-hole (universal) TiCN

Machine tap HSS-E PM DIN371 synchro, M3 through-hole (universal) TiCN
Machine tap HSS-E PM DIN371 synchro, M3 through-hole (universal) TiCN Machine tap HSS-E PM DIN371 synchro, M3 through-hole (universal) TiCN
Price:
48,60 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Universal Synchro machine tap
  • Straight-fluted with spiral point
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM
  • Shank tolerance h6
  • The spiral point ensures strong chip removal to the front
  • Possible thread depth 2xD
  • Synchro tool for CNC machines (rigid clamping or minimal length compensation)

Universal Synchro machine tap
  • Straight-fluted with spiral point
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM
  • Shank tolerance h6
  • The spiral point ensures strong chip removal to the front
  • Possible thread depth 2xD
  • Synchro tool for CNC machines (rigid clamping or minimal length compensation)

Article no./ATORN no.
1347200030 / 11290805
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
Form/Chamfer B, 3.5 to 5-thread chamfer
Form/Chamfer B, 3.5 to 5-thread chamfer
L 56 mm
L 56 mm
L1 5 mm
L1 5 mm
L2 18 mm
L2 18 mm
Pitch 0,5 mm
Pitch 0,5 mm
Spiral angle Evenly grooved shell section
Spiral angle Evenly grooved shell section
Standard constructional dimensions DIN DIN 371
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6HX
Standard tolerance ISO 2 6HX
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60° thread angle °
Thread depth 2xD thread
Thread depth 2xD thread
Threaded hole type for through-hole threads
Threaded hole type for through-hole threads
Type Synchro
Type Synchro

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
