Machine tap HSS-E-PM A-SFT DIN374 45°, M6x0.75 blind-hole thread

Machine tap HSS-E-PM A-SFT DIN374 45°, M6x0.75 blind-hole thread
Machine tap HSS-E-PM A-SFT DIN374 45°, M6x0.75 blind-hole thread Machine tap HSS-E-PM A-SFT DIN374 45°, M6x0.75 blind-hole thread
Price:
42,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

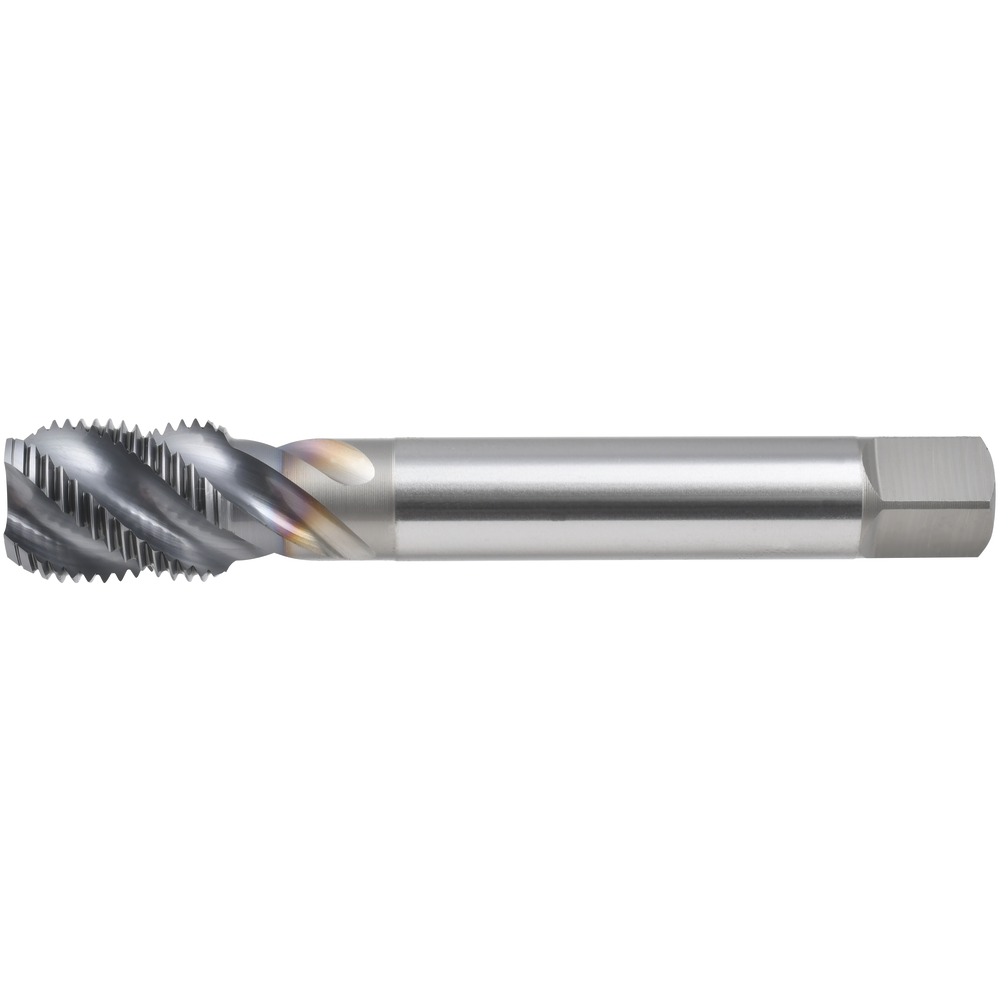

A-SFT machine tap
  • ISO2 6HX fine-pitch metric thread
  • 45°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • Constructional dimensions DIN 374
  • Cutting material: HSS-E-PM, TiCN-coated
  • For blind-hole threads

A-SFT machine tap
  • ISO2 6HX fine-pitch metric thread
  • 45°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • Constructional dimensions DIN 374
  • Cutting material: HSS-E-PM, TiCN-coated
  • For blind-hole threads

Article no./ATORN no.
1334200675
Vendor Article no.
48139156
Packaging unit
1
Catalogue page
KS-0271
Cutting values
SW-0398

Technical characteristics

C 3,4 mm
C 3,4 mm
Coating TiCN
Coating TiCN
Coolant design Without coolant supply
Coolant supply Nein
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 6 mm
D MF 6 mm
D1 4,5 mm
D1 4,5 mm
DIN DIN 374
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 80 mm
L 80 mm
L1 8 mm
L1 8 mm
Max. thread depth Gewinde 2xD
Pitch 0,75 mm
Pitch 0,75 mm
Spiral angle 45° RH helix angle
Spiral angle 45° RH helix angle
Standard constructional dimensions DIN DIN 374
Standard tolerance ISO 2 6HX
Tapping hole Ø 5,2 mm
Tapping hole Ø 5,2 mm
Thread ISO fine-pitch metric thread
Thread ISO fine-pitch metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Tolerance of screw taps ISO 2X (6HX)
Twist angle 45° (rechts)

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
titanium alloys
titanium alloys

very suitable
suitable
