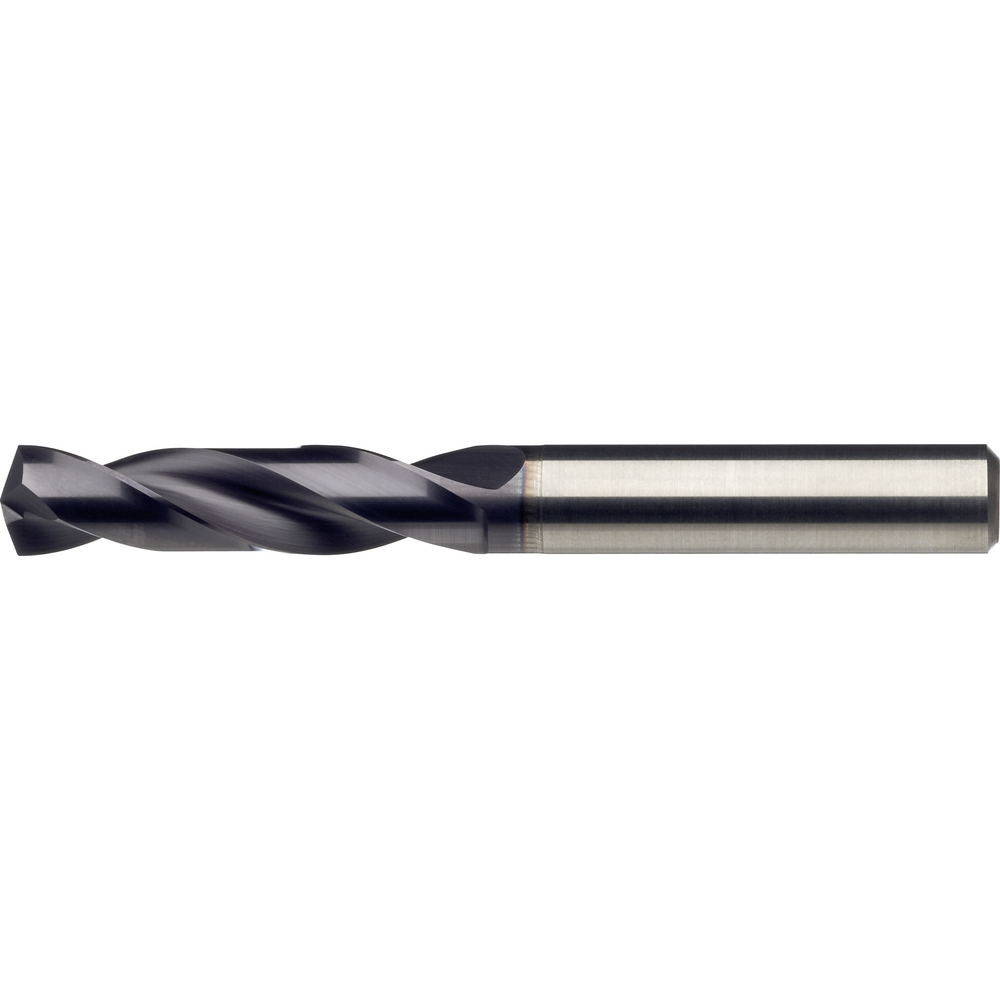

Solid carbide high-performance drill 3xD 16mm D1=HA TiAlN

Solid carbide high-performance drill 3xD 16mm D1=HA TiAlN
Solid carbide high-performance drill 3xD 16mm D1=HA TiAlN Solid carbide high-performance drill 3xD 16mm D1=HA TiAlN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
Only 1 pieces left!
Tool Finder

_ItemDeliveryInfoSaratools missing

Solid carbide high-performance drill bit
  • With optimised shank diameter tolerance for use as a holding fixture in power chucks and hydraulic expansion chucks
  • Without coolant bore
  • Solid carbide cutting material: ultra-fine grain TiAlNplus and TiN
  • 2-facet grinding
  • True-running accuracy of the tool when clamped max. 0.02 mm

Article no./ATORN no.
1115010160 / 10478122
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiAlN
Coolant design Without coolant supply
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D m7 16,00 mm
D1 h6 16 mm
Design TiAlN, HA
Drilling depth 3xD
Feed f steel < 1000 N/mm² 0,32 mm/rev
L 115 mm
L1 65 mm
L3 45 mm
Point angle Point angle 140° mm
Section shape Split point
Shank Straight, DIN 6535 HA
Spiral angle 30° RH helix angle
Standard constructional dimensions DIN DIN 6537
Type Type U

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
copper Cu-alloy
hardened steel < 55 HRc
hardened steel < 60 HRc
hardened steel ≥ 60 HRc
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
