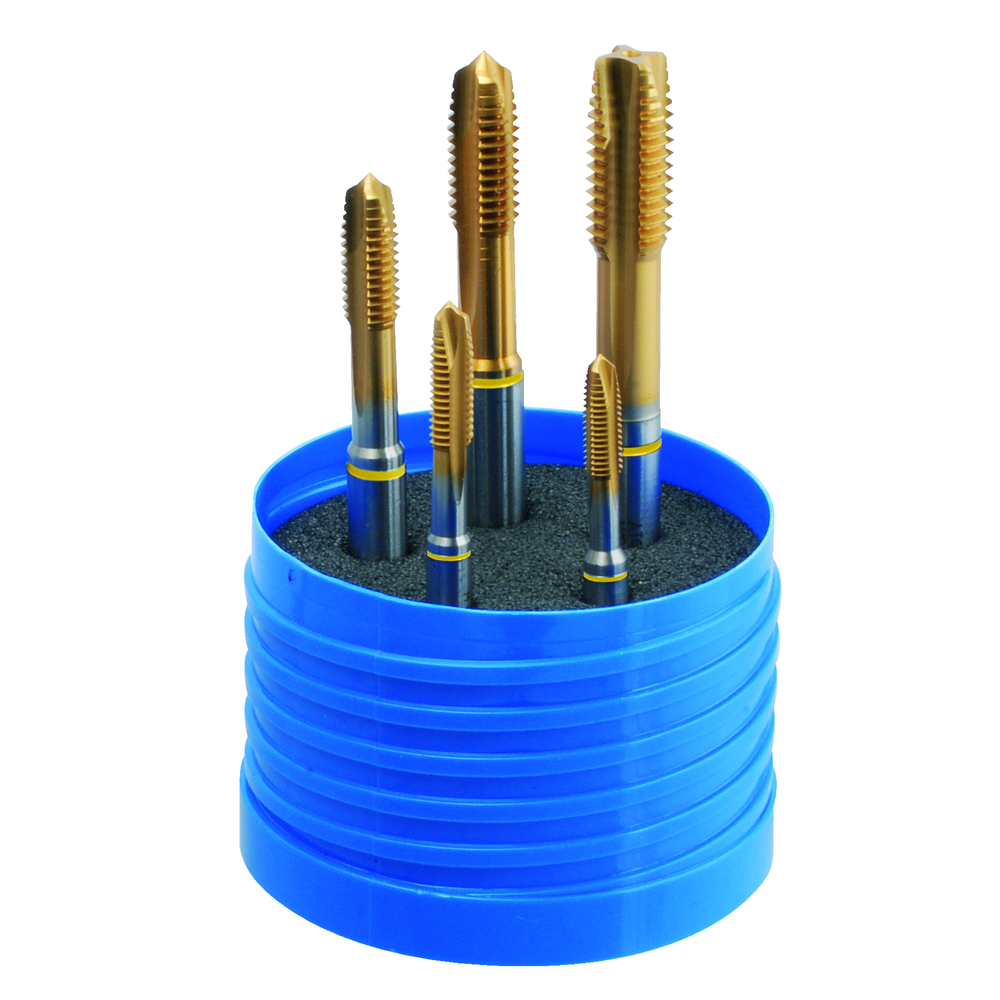

Machine tap HSS-E PM DIN371C 50° synchro, M5-M12 through-hole TiN

Machine tap HSS-E PM DIN371C 50° synchro, M5-M12 through-hole TiN
Machine tap HSS-E PM DIN371C 50° synchro, M5-M12 through-hole TiN Machine tap HSS-E PM DIN371C 50° synchro, M5-M12 through-hole TiN
Price:
223,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Synchronised machine tap
  • ISO 6H metric thread
  • Straight-fluted with spiral point
  • Type B, 3.5-5 thread chamfer
  • Constructional dimensions DIN 371 = up to M 10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiN-coated
  • For through-hole threads
  • Possible thread depth 3 x D
  • Suitable for conventional and CNC machining using synchronised tap chucks

Set
Synchronised machine tap
  • ISO 6H metric thread
  • Straight-fluted with spiral point
  • Type B, 3.5-5 thread chamfer
  • Constructional dimensions DIN 371 = up to M 10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiN-coated
  • For through-hole threads
  • Possible thread depth 3 x D
  • Suitable for conventional and CNC machining using synchronised tap chucks

Set
Article no./ATORN no.
1345701005 / 10482494
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiN
Coating TiN
Contents M5 | M6 | M8 | M10 | M12
Contents M5 | M6 | M8 | M10 | M12
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
DIN 371/376
DIN 371/376
Form/Chamfer B
Form/Chamfer B
Max. thread depth 3xD
Max. thread depth 3xD
Number of pieces 5
Number of pieces 5 pc.
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Pass-through hole
Threaded hole type Pass-through hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 0°
Twist angle 0°
Type Synchro
Type Synchro

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
brass short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
