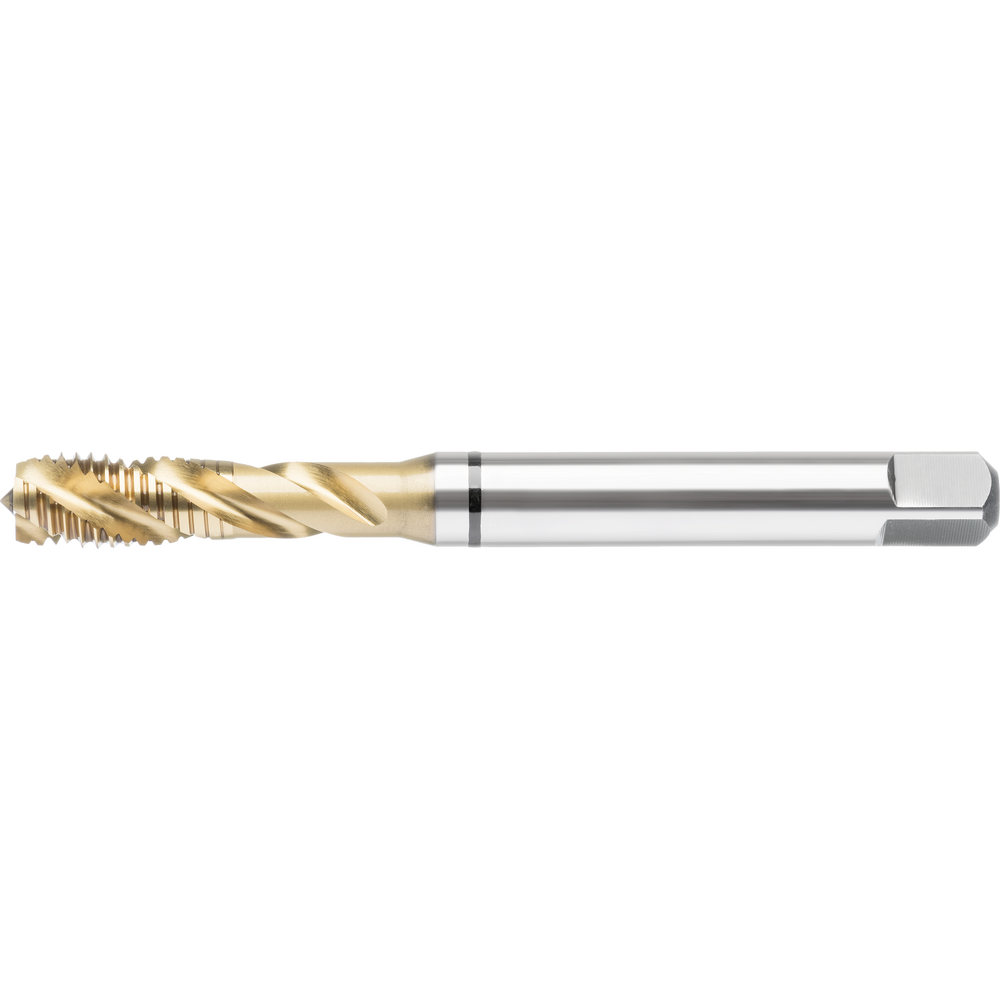

Machine tap HSS-E DIN371B 40° (UNI), M3 blind-hole thread (universal) TiN

Machine tap HSS-E DIN371B 40° (UNI), M3 blind-hole thread (universal) TiN
Machine tap HSS-E DIN371B 40° (UNI), M3 blind-hole thread (universal) TiN Machine tap HSS-E DIN371B 40° (UNI), M3 blind-hole thread (universal) TiN
Price
21,90 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Universal machine taps
  • ISO 6H metric thread
  • Type C, 2 to 3-thread chamfer, for blind-hole threads
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, vapour-treated; HSS-E, TiN-coated
  • Possible thread depth 2.5 x D
  • for universal applications

Article no./ATORN no.
1347150030 / 11290848
Packaging unit
1
Catalogue page
KS-0236
Cutting values
KS-0236

Technical characteristics

C 2,7 mm
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE
D M3
D1 3,5 mm
Design TiN
DIN 371
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
Farbringsystem UNI
fitness hartl total 3
Form/Chamfer C
L 56 mm
L1 10 mm
L2 18 mm
Max. thread depth 2,5xD
Nenndurchmesser 3 mm
Passend für Gewinde M3-M20
Pitch 0,5 mm
Surface TiN
Tapping hole Ø 2,5 mm
Thread M
Thread angle 60 °
Threaded hole type Blind hole ≤ 2.5xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 40°
Typ UNI 40 Control

Usage characteristics

aluminium < 8 % Si
brass long
brass short
bronze long
cast iron GGG
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
