RotaRex© CNC cabinet

• Opening/usable height: 1,790 mm
• Column load capacity 1.5 t

• Advantages
• Unrestricted access to the cabinet
• 1 m² of storage space can hold up to 400 tools (E1)
• Optimised workflow as all tools are quickly to hand
• No protruding pull-out sections
• Minimal space requirements
• Maximum use of space

• Column
• Precision steel tubing, Ø 60 mm
• Electro-galvanised
• Holds up to 5 CNC frames
• Individually adjustable in increments of 25 mm

• Tongue
• Individually adjustable column position
• For perfectly adapting the CNC frame to floor irregularities

• Forklift-compatible base
• For transport

• Roller shutter
• The electric roller shutter is operated via remote control.
• A spring mechanism or hinged doors are available as alternatives.
• One remote control can be used to open multiple cabinets simultaneously (on request)

• Unless otherwise instructed, we supply the colour RAL 5012/7035 (light blue/light grey)
• The standard colours shown below are available at no extra cost
• Free kerbside delivery within Germany, fully assembled, incl. packaging

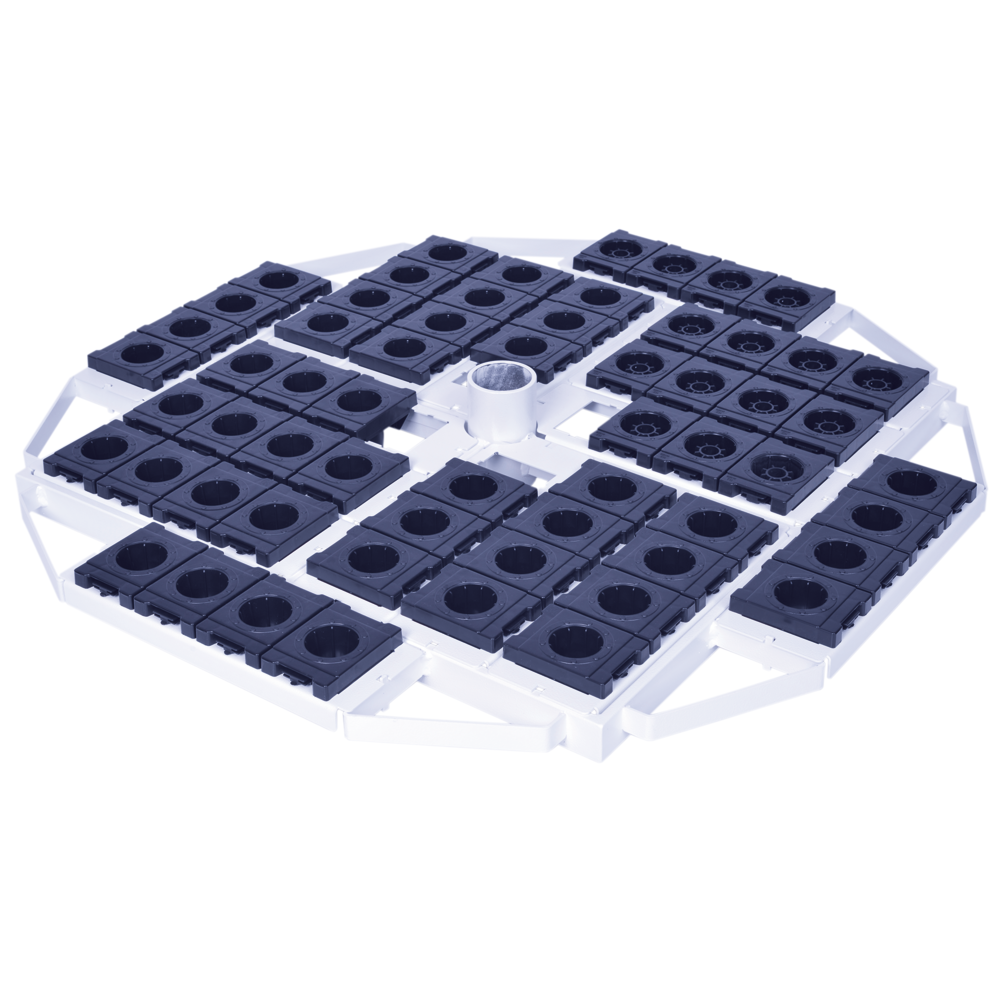

RotaRex© CNC stand including tool inserts

• Dimensions (Ø): 915 mm
• Column can be adjusted in increments of 25 mm to customise height
• RotaRex can hold a maximum of 5 CNC frames
• Individual CNC frames are rotatable
• Load capacity up to 300 kg per frame
