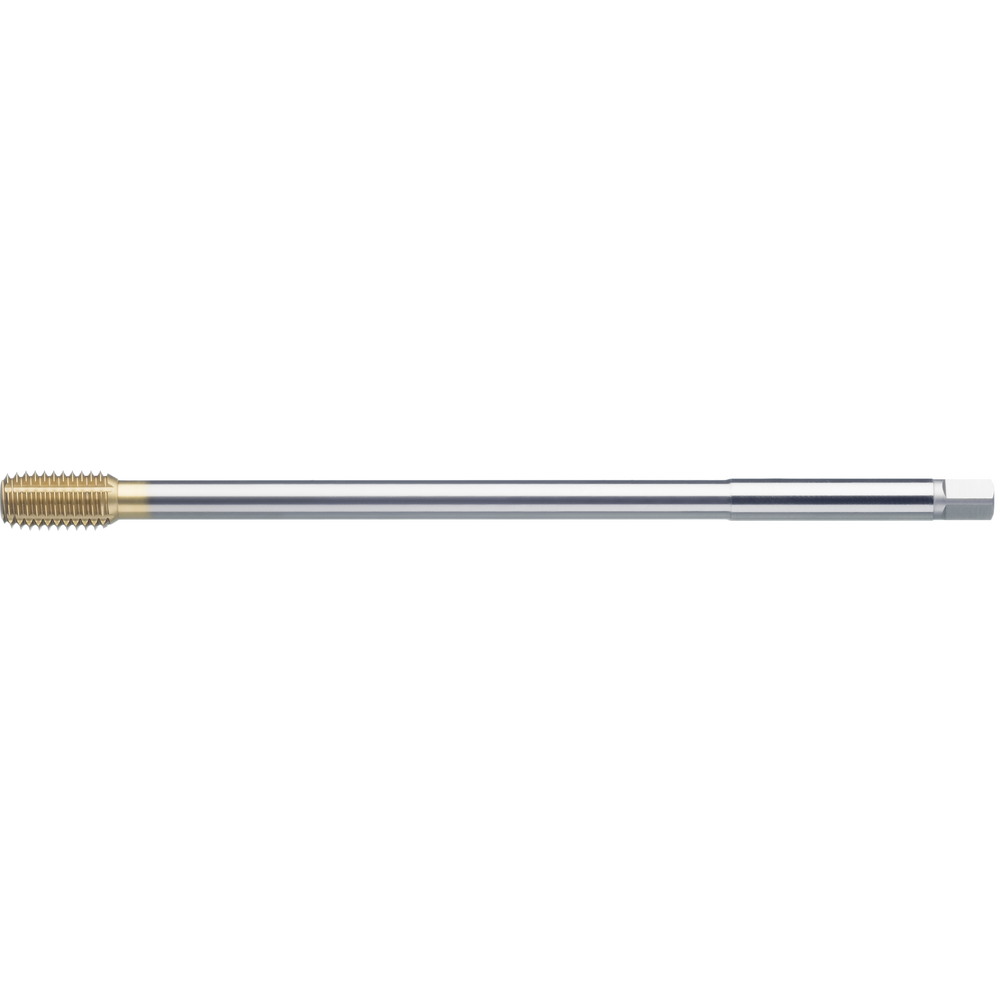

Forming tap HSS-E-PM WN M3 6HX blind/through-hole XL IC TiN

Forming tap HSS-E-PM WN M3 6HX blind/through-hole XL IC TiN
Forming tap HSS-E-PM WN M3 6HX blind/through-hole XL IC TiN Forming tap HSS-E-PM WN M3 6HX blind/through-hole XL IC TiN
Price:
235,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Long version

Machine forming taps, long
  • Metric ISO 6HX thread
  • Form C, 2-3 thread chamfer
  • With oil grooves
  • Cutting material: HSS-E-PM, TiN
  • For blind-hole and through-hole threads
  • Extra-long range to bridge protruding contours
  • With axial coolant bore outlet
  • Possible thread depth 2 x D
  • With internal coolant supply from M6
  • Also available in metric fine (MF) version

Long version

Machine forming taps, long
  • Metric ISO 6HX thread
  • Form C, 2-3 thread chamfer
  • With oil grooves
  • Cutting material: HSS-E-PM, TiN
  • For blind-hole and through-hole threads
  • Extra-long range to bridge protruding contours
  • With axial coolant bore outlet
  • Possible thread depth 2 x D
  • With internal coolant supply from M6
  • Also available in metric fine (MF) version

Article no./ATORN no.
1354100030 / 10482508
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiN
Coating TiN
Coolant supply Internal axial
Coolant supply Internal axial
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN Company standard
DIN Company standard
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C
Form/Chamfer C
Gewindeart x Nenndurchmesser M3
L 112 mm
L 112 mm
L1 6 mm
L1 6 mm
L2 18 mm
L2 18 mm
Max. thread depth 2xD
Max. thread depth 2xD
Nenndurchmesser 3 mm
Passend für Gewinde M3-M20
Pitch 0,5 mm
Pitch 0,5 mm
Surface TiN
Surface TiN
Tapping hole Ø 2,80 mm
Tapping hole Ø 2,80 mm
Thread M
Thread M
Threaded hole type Clearance/stud hole
Threaded hole type Clearance/stud hole
Tolerance of screw taps ISO 2X (6HX)
Tolerance of screw taps ISO 2X (6HX)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h9
Twist angle 0°
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
