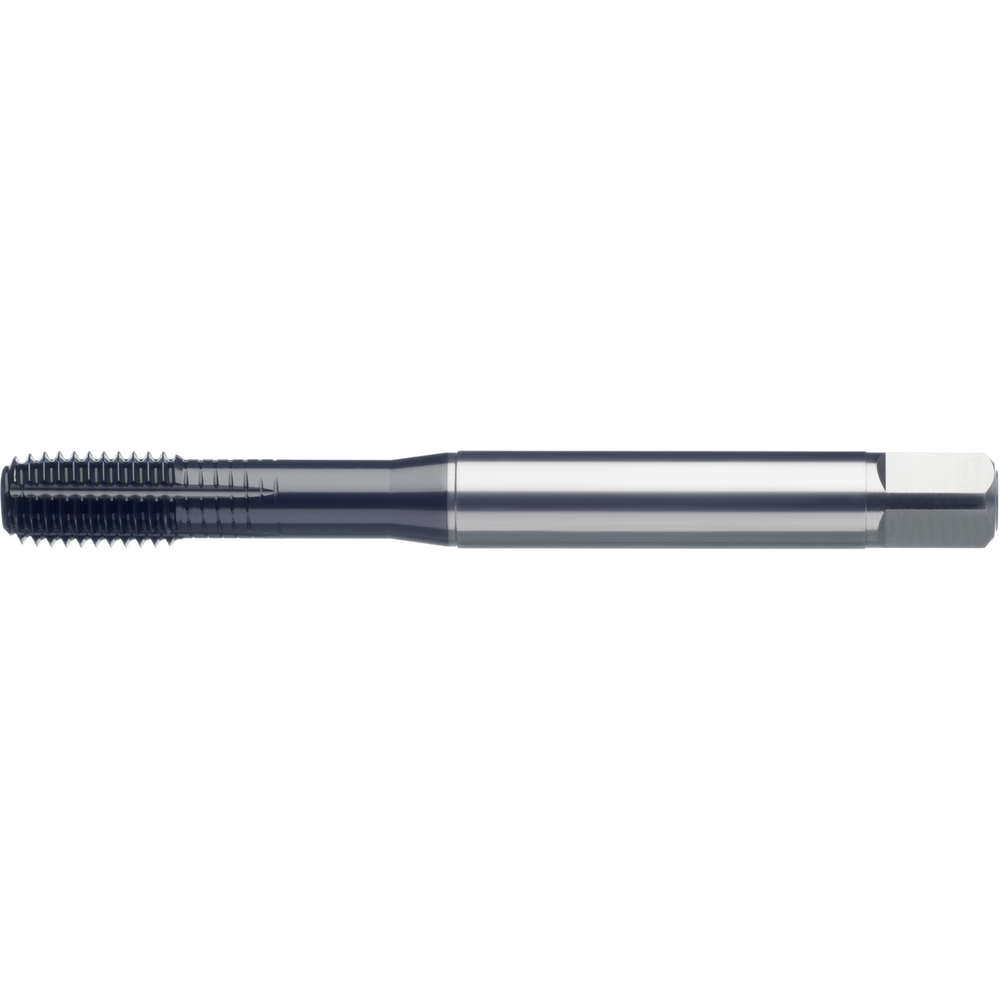

Forming tap HSS-E DIN371 M5 6HX blind/through-hole IC DLC

Forming tap HSS-E DIN371 M5 6HX blind/through-hole IC DLC
Forming tap HSS-E DIN371 M5 6HX blind/through-hole IC DLC Forming tap HSS-E DIN371 M5 6HX blind/through-hole IC DLC
Price:
129,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Aluminium

DLC machine forming taps
  • ISO 6HX metric thread
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, DLC-coated
  • For blind-hole and through-hole threads
  • For aluminium and wrought aluminium alloys < 7 % Si
  • With axial coolant bore outlet
  • Possible thread depth 2xD

Aluminium

DLC machine forming taps
  • ISO 6HX metric thread
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, DLC-coated
  • For blind-hole and through-hole threads
  • For aluminium and wrought aluminium alloys < 7 % Si
  • With axial coolant bore outlet
  • Possible thread depth 2xD

Article no./ATORN no.
1354200050 / 10482524
Packaging unit
1
Catalogue page

Technical characteristics

Anschnittform C
C 4,9 mm
C 4,9 mm
Coating DLC
Coating DLC
Coolant design Internal axial
Coolant design Internal axial
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
D M 5 mm
D M 5 mm
D1 6 mm
D1 6 mm
Drallwinkel 0°
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C, 2 to 3-thread chamfer
Form/Chamfer C, 2 to 3-thread chamfer
Gewindeart x Nenndurchmesser M5
Gewindetiefe max. 3xD
Kernlochdurchmesser 4,65 mm
L 70 mm
L 70 mm
L1 8,5 mm
L1 8,5 mm
L2 25 mm
L2 25 mm
Länge 70 mm
Nenndurchmesser 5 mm
Oberfläche CARBO
Passend für Gewinde M5-M10
Pitch 0,8 mm
Pitch 0,8 mm
Schaftdurchmesser 6 mm
Schaftvierkant 4,9 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung 1
Schnittgeschwindigkeit (Bronze kurz) Vc 27,00 m/min
Schnittgeschwindigkeit (Bronze lang) Eignung 1
Schnittgeschwindigkeit (Bronze lang) Vc 32,00 m/min
Schnittgeschwindigkeit (Kunststoff ) Eignung 3
Schnittgeschwindigkeit (Messing lang) Eignung 1
Schnittgeschwindigkeit (Messing lang) Vc 45,00 m/min
Spiral angle Straight-fluted
Spiral angle Straight-fluted
Standard constructional dimensions DIN DIN 371
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6HX
Standard tolerance ISO 2 6HX
Steigung 0,8 mm
Tapping hole Ø 4,65 mm
Tapping hole Ø 4,65 mm
Thread M
Thread M
Thread angle 60° thread angle °
Thread angle 60° thread angle °
Thread depth 2xD thread
Thread depth 2xD thread
Threaded hole type For blind-hole and through-hole threads
Threaded hole type For blind-hole and through-hole threads
Toleranz Gewindebohrer ISO 2X (6HX)
Toleranz Schaftdurchmesser h9
Toleranz Schaftvierkant h9

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy

very suitable
suitable
Catalogue page Download
Catalogue page Download
STEP Download
DXF Download
ASSET_MatSafetyDataSheet Download
