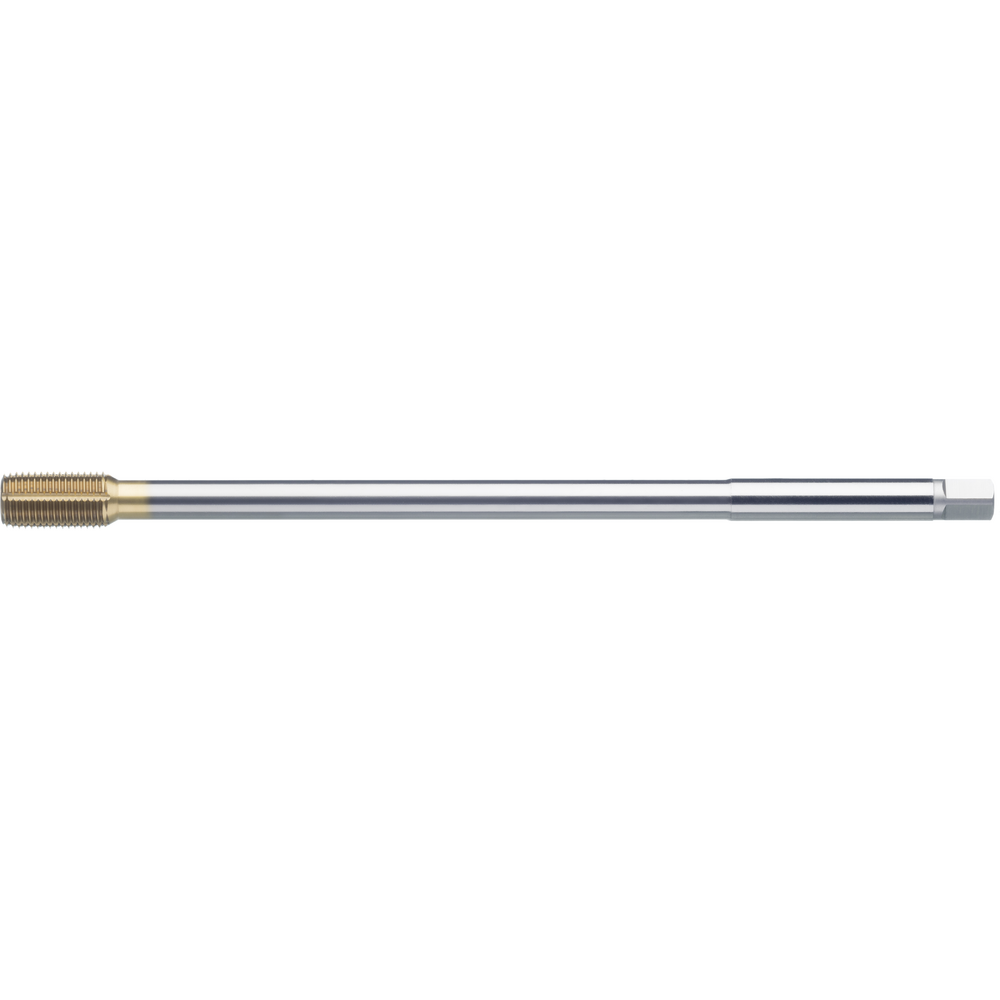

Forming tap HSS-E-PM WN M8x1 6HX blind/through-hole XL IC TiN

Forming tap HSS-E-PM WN M8x1 6HX blind/through-hole XL IC TiN
Forming tap HSS-E-PM WN M8x1 6HX blind/through-hole XL IC TiN Forming tap HSS-E-PM WN M8x1 6HX blind/through-hole XL IC TiN
Price:
450,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Long version

Machine forming taps, long
  • ISO 6HX fine-pitch metric thread
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • Cutting material: HSS-E-PM TiN
  • For blind-hole and through-hole threads
  • Extra-long range to bridge protruding contours
  • With axial coolant bore outlet
  • Possible thread depth 2xD

Long version

Machine forming taps, long
  • ISO 6HX fine-pitch metric thread
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • Cutting material: HSS-E-PM TiN
  • For blind-hole and through-hole threads
  • Extra-long range to bridge protruding contours
  • With axial coolant bore outlet
  • Possible thread depth 2xD

Article no./ATORN no.
1354150810 / 10482517
Packaging unit
1
Catalogue page

Technical characteristics

Anschnittform C
C 4,9 mm
C 4,9 mm
Coating TiN
Coating TiN
Coolant design Internal axial
Coolant design Internal axial
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D M 8 mm
D M 8 mm
D1 6 mm
D1 6 mm
Drallwinkel 0°
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C, 2 to 3-thread chamfer
Form/Chamfer C, 2 to 3-thread chamfer
Gewindeart x Nenndurchmesser MF8
Gewindetiefe max. 3xD
Kernlochdurchmesser 7,55 mm
L 140 mm
L 140 mm
L1 14 mm
L1 14 mm
Länge 140 mm
Nenndurchmesser 8 mm
Oberfläche TiN
Passend für Gewinde MF8-MF16
Pitch 1,0 mm
Pitch 1,0 mm
Schaftdurchmesser 6 mm
Schaftvierkant 4,9 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung 1
Schnittgeschwindigkeit (Bronze kurz) Vc 27,00 m/min
Schnittgeschwindigkeit (Bronze lang) Eignung 1
Schnittgeschwindigkeit (Bronze lang) Vc 32,00 m/min
Schnittgeschwindigkeit (Kunststoff ) Eignung 3
Schnittgeschwindigkeit (Messing lang) Eignung 1
Schnittgeschwindigkeit (Messing lang) Vc 45,00 m/min
Spiral angle Straight-fluted
Spiral angle Straight-fluted
Standard constructional dimensions DIN Non-DIN
Standard constructional dimensions DIN Non-DIN
Standard tolerance ISO 2 6HX
Standard tolerance ISO 2 6HX
Steigung 1 mm
Tapping hole Ø 7,55 mm
Tapping hole Ø 7,55 mm
Thread MF
Thread MF
Thread angle 60° thread angle °
Thread angle 60° thread angle °
Thread depth 2xD thread
Thread depth 2xD thread
Threaded hole type For blind-hole and through-hole threads
Threaded hole type For blind-hole and through-hole threads
Toleranz Gewindebohrer ISO 2X (6HX)
Toleranz Schaftdurchmesser h9
Toleranz Schaftvierkant h9

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
