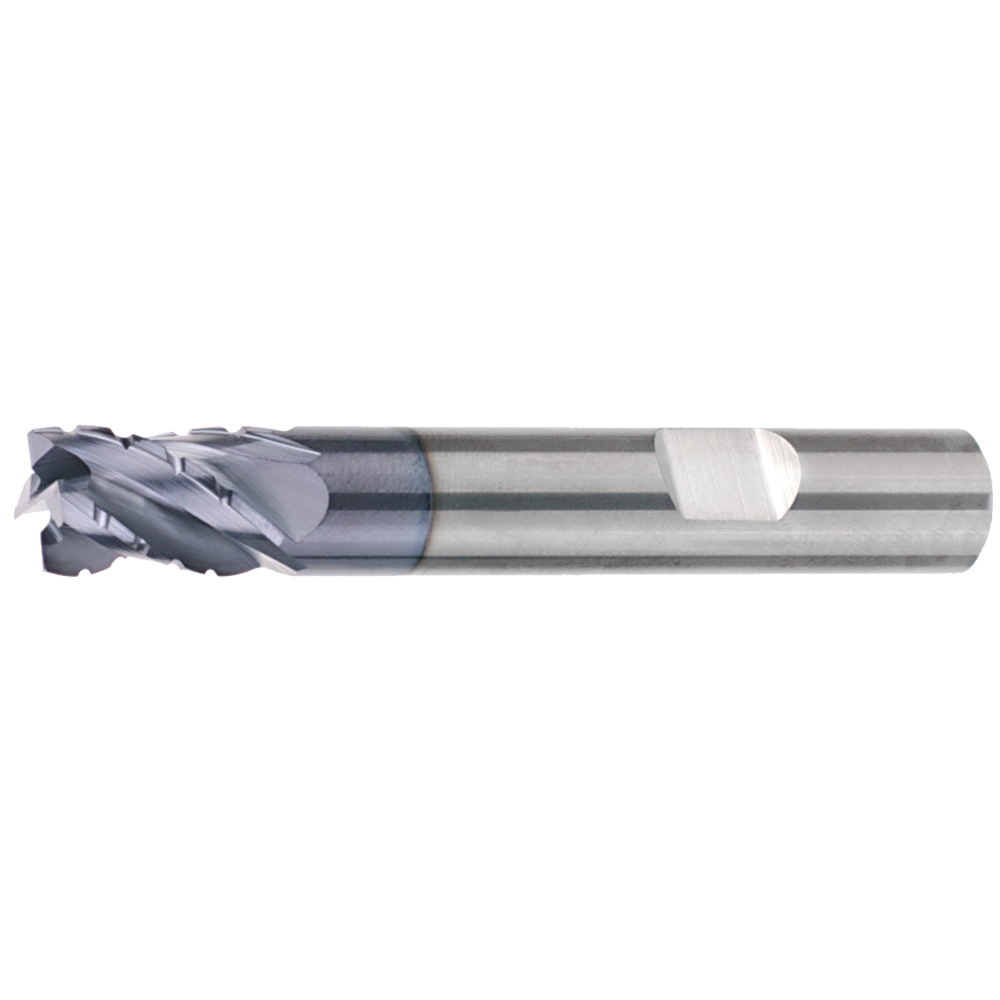

Solid carbide roughing cutter 35°/38° NF 4mm short Z=4 HB, AlTiN

Solid carbide roughing cutter 35°/38° NF 4mm short Z=4 HB, AlTiN
Solid carbide roughing cutter 35°/38° NF 4mm short Z=4 HB, AlTiN Solid carbide roughing cutter 35°/38° NF 4mm short Z=4 HB, AlTiN
Price
37,90 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Roughing cutter
  • Irregular helix angle for low-vibration milling
  • With protective chamfer F for improved service life
  • Also suitable for dry machining
  • High material removal rate

Short
Article no./ATORN no.
2541410040
Packaging unit
1
Alternative items
View alternative items
Catalogue page
KS-0454
Cutting values
SW-0751

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Coating AlTiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 4,0 mm
D1 6 mm
F x 45° 0,13 mm
Feed fz steel < 1000 N/mm² 0,013 mm/tooth
Feed fz steel < 1000 N/mm² 0,015 mm/tooth
L 54 mm
L1 6 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 35° | 38°
Type NF
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
STEP Download
DXF Download
Catalogue page Download
Cutting values Download
