Werkstückauflage Typ A ø16x23mm für Feinzeiger-Messschrauben 503701….

Werkstückauflage Typ A ø16x23mm für Feinzeiger-Messschrauben 503701….
Werkstückauflage Typ A ø16x23mm für Feinzeiger-Messschrauben 503701….
Price:
20,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Indicating calliper micrometer
  • Type D13
  • For series testing
  • Large easy-to-read scale
  • Measuring faces carbide-tipped, ground and finely lapped
  • Screw for carrying out zeroing adjustments
  • Adjustable tolerance marks for go and no-go measurements
  • Conveniently located return motion lever on the right or left side
  • Matt chrome-plated scale barrel and scale sleeve, Ø 21 mm
  • Measuring spindle Ø 8 mm
  • Display range ± 0.06 mm
  • Error margin for micrometer: 0.002 mm
  • Error margin for display: 0.001 mm
  • Planarity 0.3 µm
  • Measuring force 5 - 10 N
  • Calibration includes setting gauge
  • Supplied with adjustment key, versions over 25 mm include setting gauge

Indicating calliper micrometer
  • Type D13
  • For series testing
  • Large easy-to-read scale
  • Measuring faces carbide-tipped, ground and finely lapped
  • Screw for carrying out zeroing adjustments
  • Adjustable tolerance marks for go and no-go measurements
  • Conveniently located return motion lever on the right or left side
  • Matt chrome-plated scale barrel and scale sleeve, Ø 21 mm
  • Measuring spindle Ø 8 mm
  • Display range ± 0.06 mm
  • Error margin for micrometer: 0.002 mm
  • Error margin for display: 0.001 mm
  • Planarity 0.3 µm
  • Measuring force 5 - 10 N
  • Calibration includes setting gauge
  • Supplied with adjustment key, versions over 25 mm include setting gauge

Article no./ATORN no.
5037012001
Vendor Article no.
04AZA124
Packaging unit
1
Catalogue page

Technical characteristics

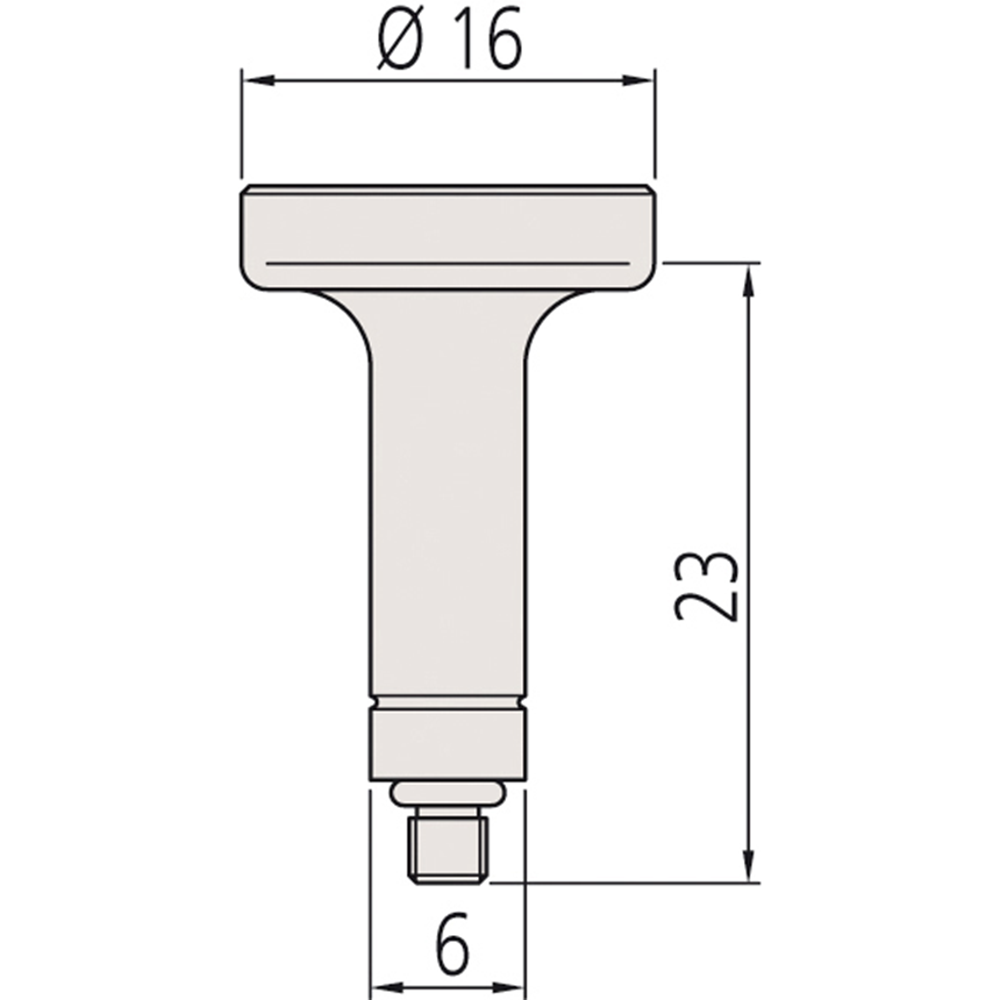

Designation Werkstückauflage Typ A Ø 16x23 mm
Designation Werkstückauflage Typ A Ø 16x23 mm
