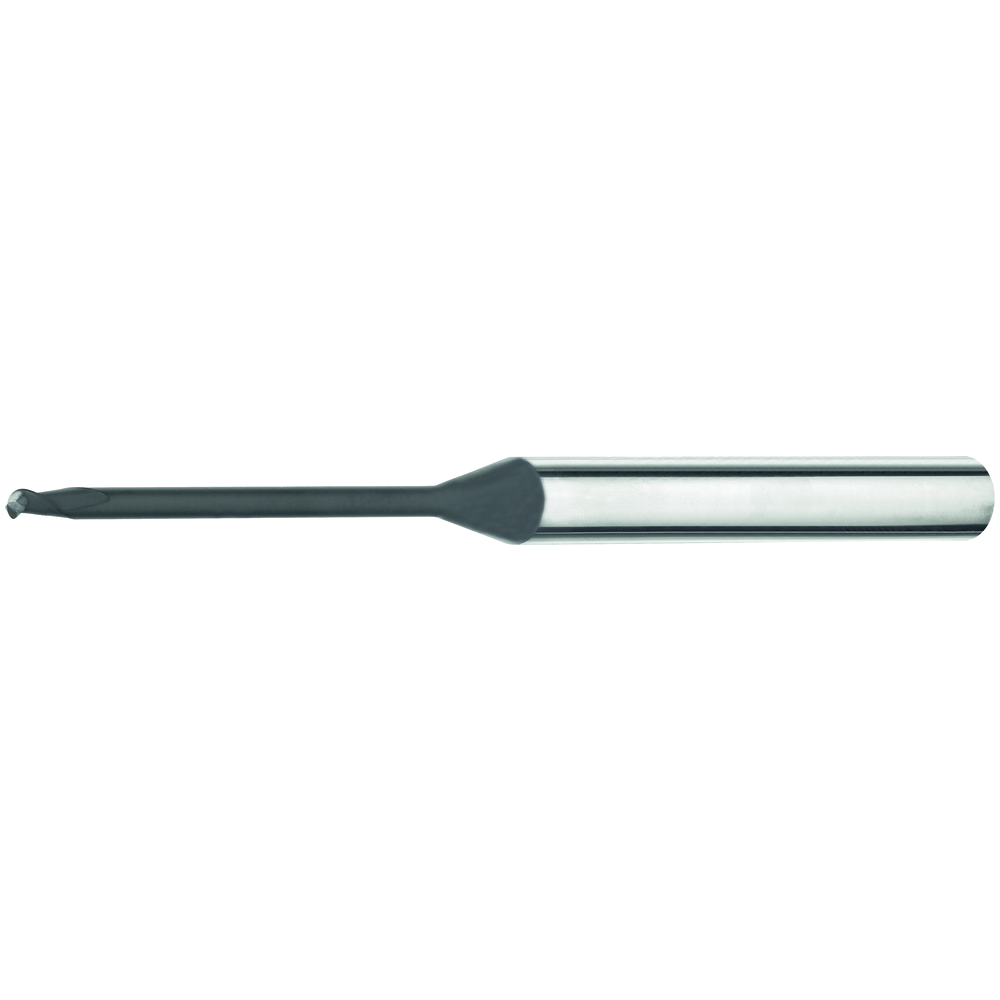

Solid carbide mini-radius milling cutter 30° 0,2x3mm, L2=1,0mm, R=0,10 Z=2 DIA+

Solid carbide mini-radius milling cutter 30° 0,2x3mm, L2=1,0mm, R=0,10 Z=2 DIA+
Solid carbide mini-radius milling cutter 30° 0,2x3mm, L2=1,0mm, R=0,10 Z=2 DIA+ Solid carbide mini-radius milling cutter 30° 0,2x3mm, L2=1,0mm, R=0,10 Z=2 DIA+
Special offer
51,00 €
(122,00 € catalogue price / 58% saved)
prices excl. vat plus shipping costs

Stock status
Only 11 pieces left!
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

Layer thickness 10+2 µm

DIA+ mini radius milling cutter
  • Crystalline diamond coating
  • Reliable graphite, GFRP and CFRP machining
  • With clearance
  • Radius tolerance +/- 0.0003

Article no./ATORN no.
2580060001
Packaging unit
1
Catalogue page
KS-0498
Cutting values
SW-0765

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HSC
Coating DIA
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 0,20 mm
D1 3,00 mm
D3 0,18 mm
Feed fz graphite 0,002 mm/tooth
Feed fz graphite 0,003 mm/tooth
L 55 mm
L1 0,20 mm
L2 1 mm
R 0,1 mm
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 30°
Type N
Z 2 pc.

Usage characteristics

graphite

very suitable
suitable
