Vacuum clamping technology
Vacuum clamping system with adapter mats

• For wet and dry machining, with vacuum pump, no Venturi nozzle
• For workpieces with openings
  Construction with sealing cord, aluminium adapter plate and adapter mats
• For workpieces without openings
  Construction with sealing cord only, directly on the grid plate
• The modular construction allows multiple vacuum plates to be connected with overlapping grids. The operating vacuum is supplied to the individual plates via the connection elements.

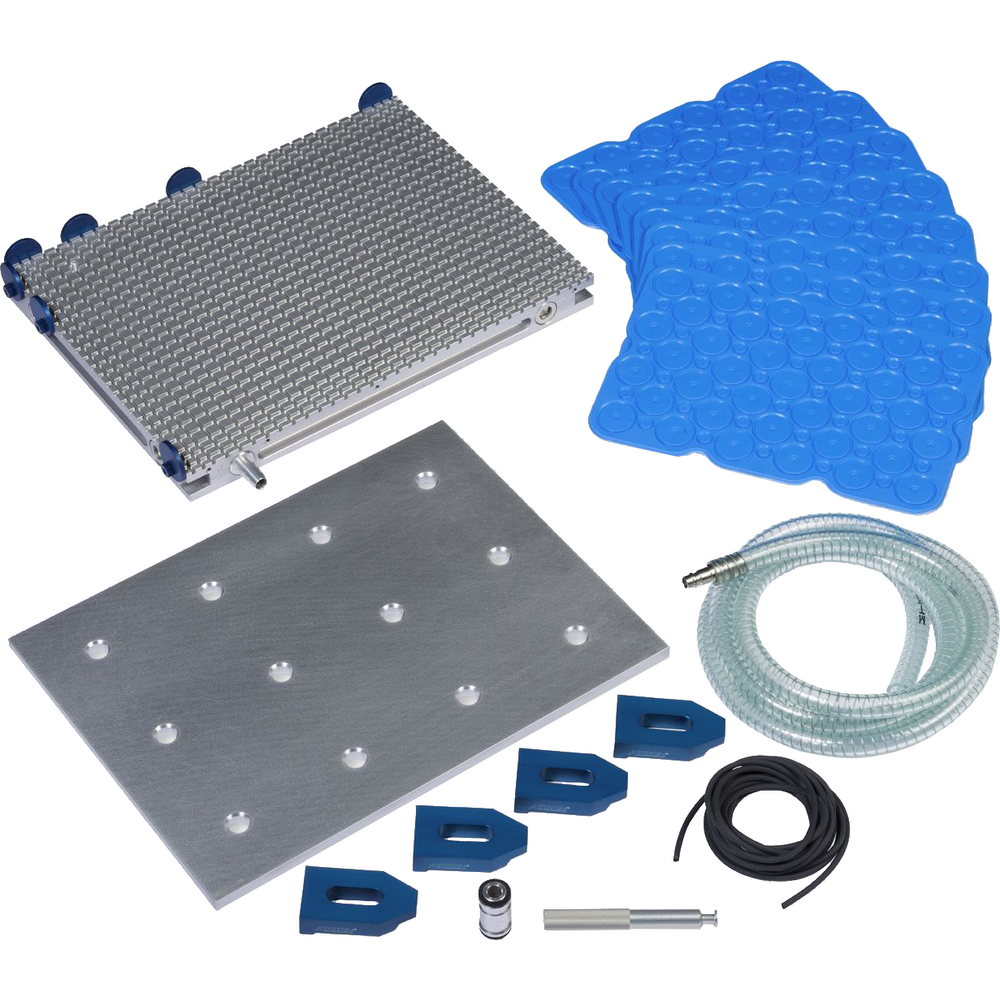

• Each set comprises:
  1x modular grid plate with 12.5 mm grid
  1x aluminium adapter plate with 12.5 mm grid
  Set VM1: 10 blue adapter mats
  Set VM2: 9 blue adapter mats, 1 black
  Set VM3: 8 blue adapter mats, 2 black
  4x clamping claws with slot width = 14 mm
  1x assembly tool for replacing blind plugs
  3 m vacuum hose with wire helix
  10 m vacuum sealing cord, Ø 4 mm, black
