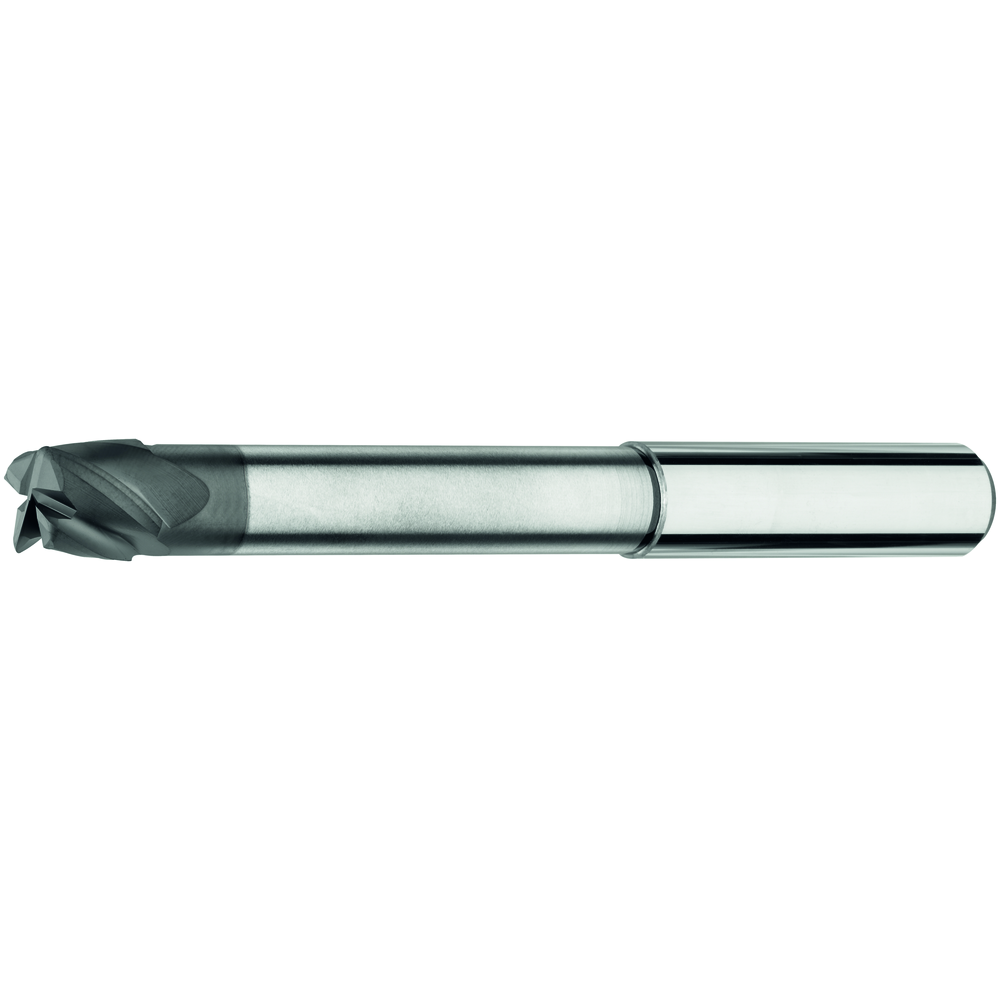

Solid carbide torus cutter 30° 3x3mm, L2=32mm, R=0,3,4S. DIA+

Price
90,70 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 18:00 - delivered tomorrow.

Layer thickness 6+2 µm

DIA+ torus cutter
  • Crystalline diamond coating
  • Reliable graphite, GFRP and CFRP machining
  • With clearance

Long
Article no./ATORN no.
2580140001
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HSC
Coating DIA
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,00 mm
D1 3,00 mm
D3 2,70 mm
Feed fz graphite 0,020 mm/tooth
Feed fz graphite 0,030 mm/tooth
L 80 mm
L1 6,00 mm
L2 32 mm
R 0,3 mm
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 30°
Type N
Z 4 pc.

Usage characteristics

graphite

very suitable
suitable
