Vacuum clamping technology

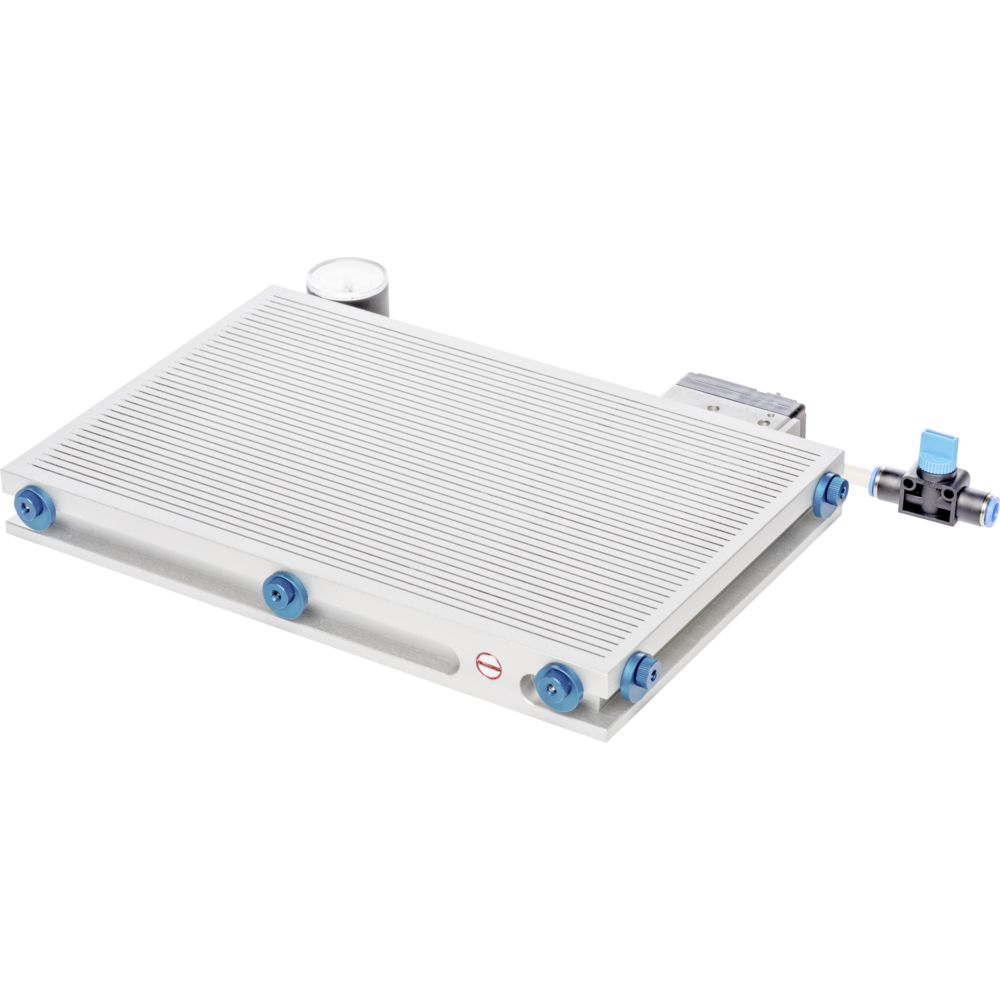

Slotted vacuum plate sets with Venturi nozzles

• High process reliability with slotted vacuum plates
• Low-maintenance Venturi technology (vacuum generated by the narrowed cross-section inside the Venturi hose)
• High process reliability when used in machining centres and other machine tools
• Noise level just 57 dB(A)
• High max. vacuum at approx. 5 - 6 bar
• Up to 93 % residual vacuum depending on usage conditions; air consumption approx. 90 l/min
• Each set comprises:
  1x slotted vacuum plate, slot width 1 mm, centre spacing 5 mm, incl. Venturi nozzle and manometer
  4x clamping claws with slit width 14 mm
  Stop discs (height-adjustable, eccentric bearing)
  1x compressed air hose 8/6 (L = 2 m)
  1x rubber adapter mat, brown
  1x rubber adapter mat, black
  1x vacuum hose, 10/6 (L = 0.5 m)
  1x shut-off valve
  1x plug-in connector, NW 7.2
