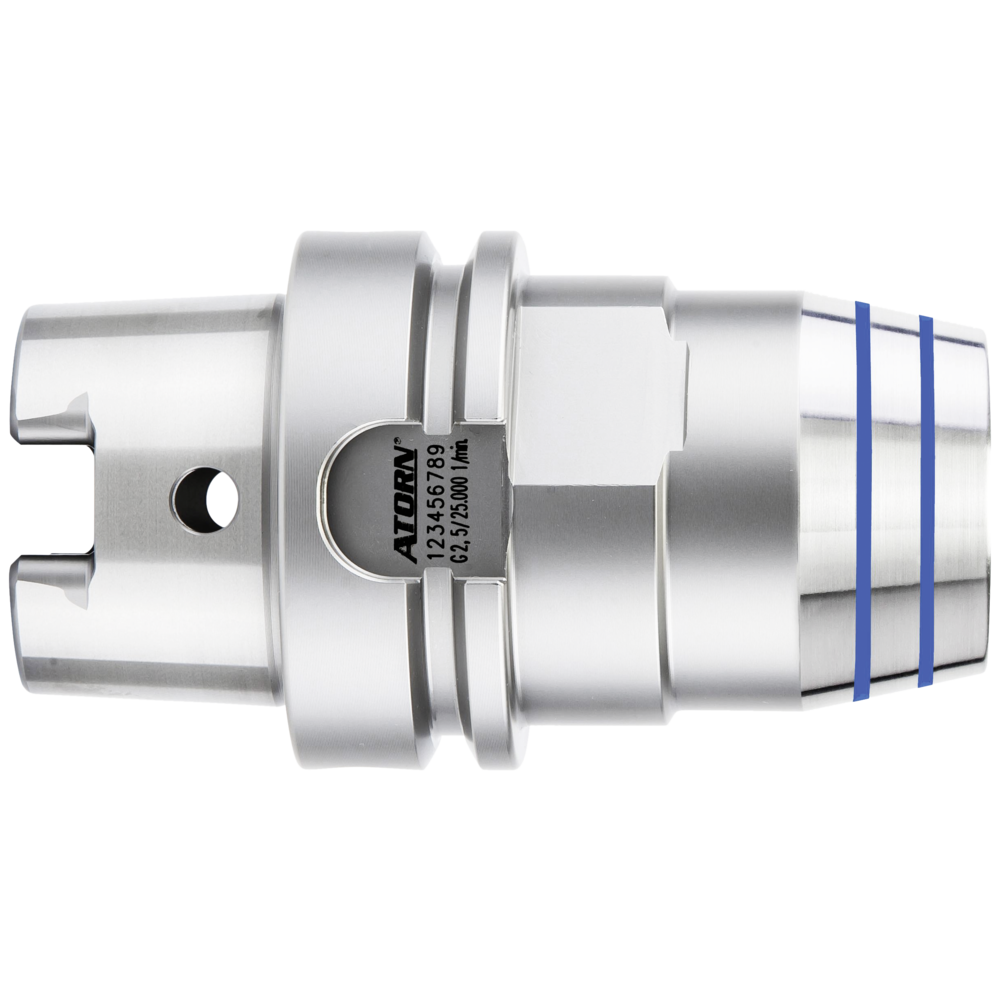

High-performance hydraulic expansion chuck DIN69893 HSK-A100, clamp 32mm, A=80mm

High-performance hydraulic expansion chuck DIN69893 HSK-A100, clamp 32mm, A=80mm
High-performance hydraulic expansion chuck DIN69893 HSK-A100, clamp 32mm, A=80mm High-performance hydraulic expansion chuck DIN69893 HSK-A100, clamp 32mm, A=80mm
Price:
333,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
High-performance hydraulic expansion chuck
  • Optimum operating temperature 20-100°C
  • Max. true running accuracy < 0.003 mm
  • Pre-balanced to G 2.5 at 25,000 rpm
  • With Balluffchip bore

DIN 69893 HSK-A
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used

High-performance hydraulic expansion chuck
  • Optimum operating temperature 20-100°C
  • Max. true running accuracy < 0.003 mm
  • Pre-balanced to G 2.5 at 25,000 rpm
  • With Balluffchip bore

DIN 69893 HSK-A
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used

Article no./ATORN no.
4334091032 / 21043002
Packaging unit
1
Catalogue page

Technical characteristics

A 100 mm
A 100 mm
Coolant supply Internal axial
Coolant supply Internal axial
D1 32 mm
D1 32 mm
DIN 69893-1
DIN 69893-1
Form A
L1 51 mm
L1 51 mm
L3 10 mm
L3 10 mm
L4 61 mm
L4 61 mm
Outer diameter 75 mm
Outer diameter 75 mm
Overall length Short-heavy
Overall length Short-heavy
Rundlauftoleranz 0,003 mm
Suitable for thread M8 x 1
Suitable for thread M8 x 1
Taper type HSK 100
Taper type HSK 100
Tool holding device HSK 100
Tool holding device HSK 100
Weight 3,8 kg
Weight 3,8 kg
Wr. width 3 mm
Wr. width 3 mm
Wuchtgüte G 2,5 bei 25000 1/min
