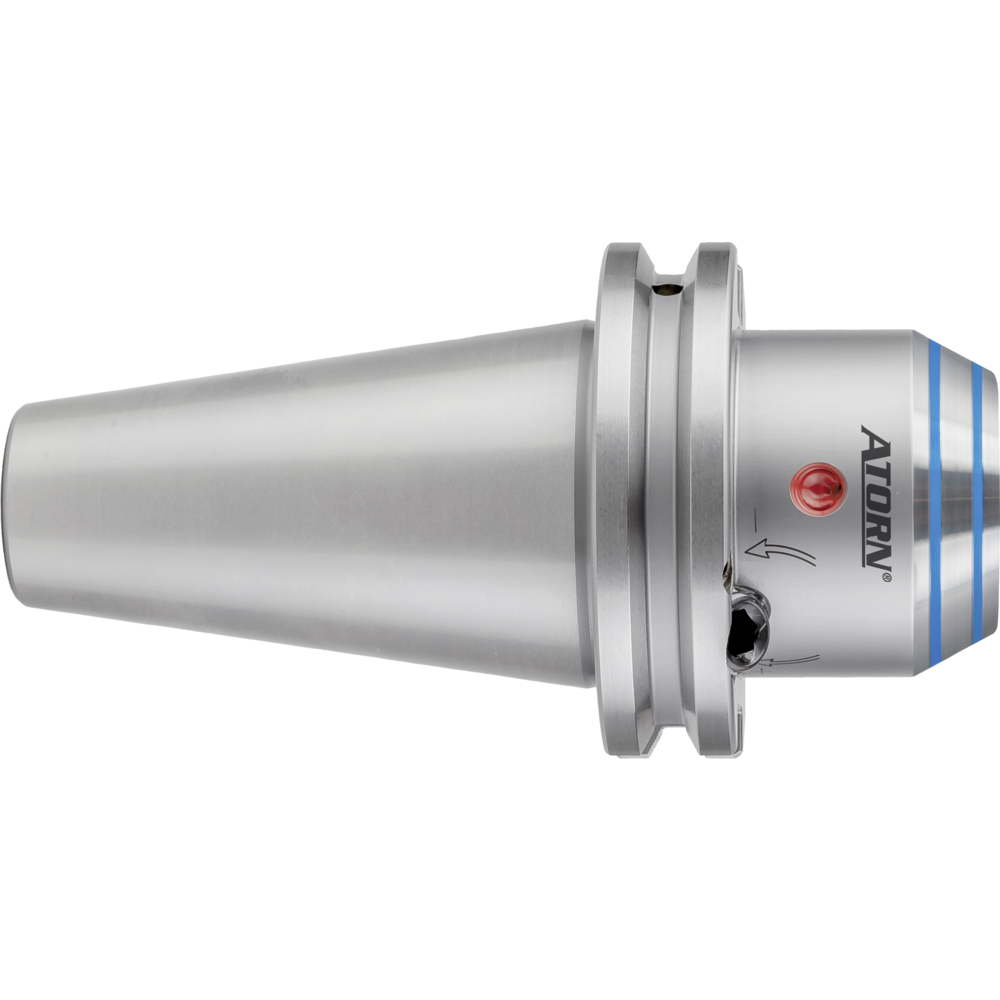

High-performance hydraulic expansion chuck DIN69871 SK40, clamp 20mm, A=80mm

High-performance hydraulic expansion chuck DIN69871 SK40, clamp 20mm, A=80mm
High-performance hydraulic expansion chuck DIN69871 SK40, clamp 20mm, A=80mm High-performance hydraulic expansion chuck DIN69871 SK40, clamp 20mm, A=80mm
Price:
241,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

High-performance hydraulic expansion chuck
  • Optimum operating temperature 20-100°C
  • Max. true running accuracy < 0.003 mm
  • Pre-balanced to G 2.5 at 25,000 rpm
  • With Balluffchip bore

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply

High-performance hydraulic expansion chuck
  • Optimum operating temperature 20-100°C
  • Max. true running accuracy < 0.003 mm
  • Pre-balanced to G 2.5 at 25,000 rpm
  • With Balluffchip bore

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply

Article no./ATORN no.
4334114020 / 21043003
Packaging unit
1
Catalogue page

Technical characteristics

A 64,5 mm
A 64,5 mm
Coolant supply Internal axial/internal radial
Coolant supply Internal axial/internal radial
D1 20 mm
D1 20 mm
DIN 69871-1
Form AD/AF
Form AD/AF
L3 10 mm
L3 10 mm
L4 51 mm
L4 51 mm
Outer diameter 49 mm
Outer diameter 49 mm
Overall length Short-heavy
Overall length Short-heavy
Rundlauftoleranz 0,003 mm
Standard constructional dimensions DIN 7388-1
Standard constructional dimensions DIN 7388-1
Suitable for thread M16 x 1
Suitable for thread M16 x 1
Taper type SK40
Taper type SK40
Tool holding device SK 40
Weight 1,4 kg
Weight 1,4 kg
Wr. width 8 mm
Wr. width 8 mm
Wuchtgüte G 2,5 bei 25000 1/min
