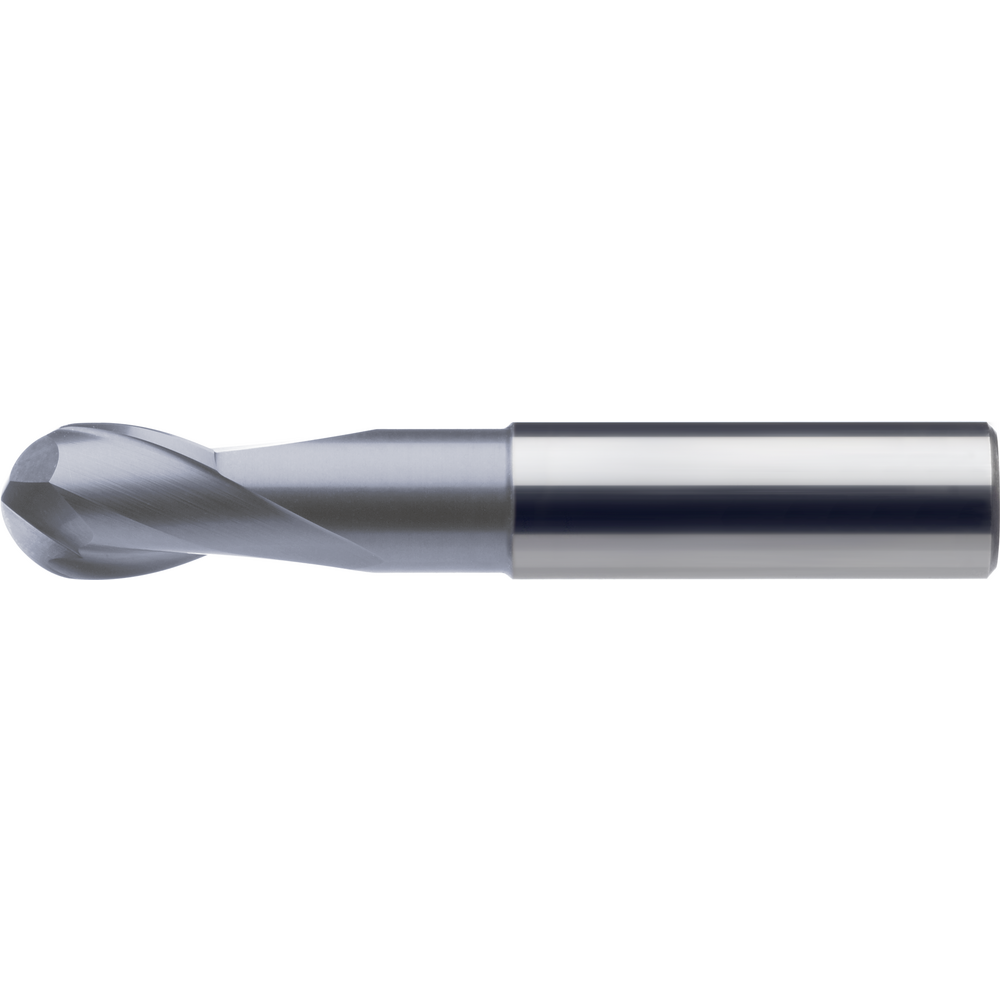

SC radius milling cutter 30° 3mm, clear. (stainless steel) Z=2 HA, Ultra-MS

SC radius milling cutter 30° 3mm, clear. (stainless steel) Z=2 HA, Ultra-MS
SC radius milling cutter 30° 3mm, clear. (stainless steel) Z=2 HA, Ultra-MS SC radius milling cutter 30° 3mm, clear. (stainless steel) Z=2 HA, Ultra-MS
Price:
47,60 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Ultra-MS radius milling cutter
  • With clearance

Standard
Article no./ATORN no.
2560160030 / 11861346
Packaging unit
1
Catalogue page
KS-0491
Cutting values
SW-0758

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating AlCrN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
D3 2,8 mm
Design HA parallel shank
Durchmesser max. 20 mm
Durchmesser min. 3 mm
Durchmesser min./max. 3-20 mm
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 1
Feed for grooving fz stainless steel austenitic 0,012 mm/tooth
Feed for side milling fz stainless steel austenitic 0,015 mm/tooth
fitness hartl total 3
Form Radius
Freistellungslänge 20 mm
fz Edelstahl 0,015 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 1
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 1
L 57 mm
L1 5 mm
L2 20 mm
Overall length Normal
R 1,5 mm
Rake angle 11 °
Surface ULTRA MS
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 30°
Type VA
Z 2 pc.

Usage characteristics

cast iron GG/GTS
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
