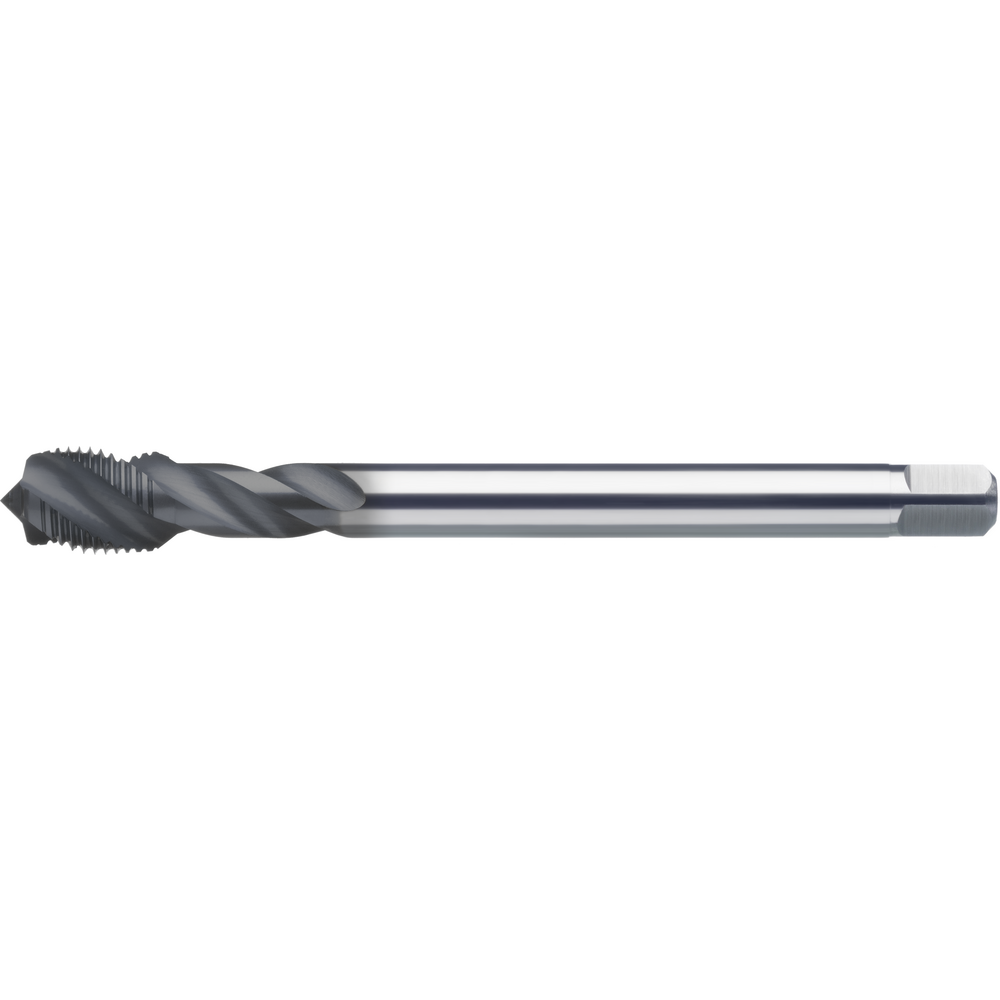

Machine tap HSS-E DIN374 M6x0.75 blind-hole (stainless steel) TiAlN

Machine tap HSS-E DIN374 M6x0.75 blind-hole (stainless steel) TiAlN
Machine tap HSS-E DIN374 M6x0.75 blind-hole (stainless steel) TiAlN Machine tap HSS-E DIN374 M6x0.75 blind-hole (stainless steel) TiAlN
Price:
64,70 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

For stainless steel

Machine tap
  • ISO 6H fine-pitch metric thread
  • Spiral-fluted, type C
  • For blind-hole threads
  • Cutting material: HSS-E, TiAlN-coated

For stainless steel

Machine tap
  • ISO 6H fine-pitch metric thread
  • Spiral-fluted, type C
  • For blind-hole threads
  • Cutting material: HSS-E, TiAlN-coated

Article no./ATORN no.
1353750675 / 10482495
Packaging unit
1
Catalogue page

Technical characteristics

C 3,4 mm
C 3,4 mm
Coating TiAlN
Coating TiAlN
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 6 mm
D M 6 mm
D1 4,5 mm
D1 4,5 mm
DIN 374
DIN 374
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 1
Farbringsystem UNI
fitness hartl total 3
Form/Chamfer C
Form/Chamfer C
L 80 mm
L 80 mm
L1 8 mm
L1 8 mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Nenndurchmesser 6 mm
Passend für Gewinde MF6-MF24
Pitch 0,75 mm
Pitch 0,75 mm
Surface ULTRA HL
Surface ULTRA HL
Tapping hole Ø 5,2 mm
Tapping hole Ø 5,2 mm
Thread MF
Thread MF
Thread angle 60 °
Thread angle 60 °
Thread type x nominal diameter MF6
Threaded hole type Blind hole ≤ 2.5xD
Threaded hole type Blind hole ≤ 2.5xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 45°
Twist angle 45°
Type UNI MAX 45HL Control
Type UNI MAX 45HL Control

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GGG
cast iron GGG
plastic
plastic
stainless steel austenitic
stainless steel austenitic
stainless steel duplex 2 m/min
stainless steel duplex 2 m/min
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
Catalogue page Download
Cutting values Download
STEP Download
DXF Download
ASSET_MatSafetyDataSheet Download
