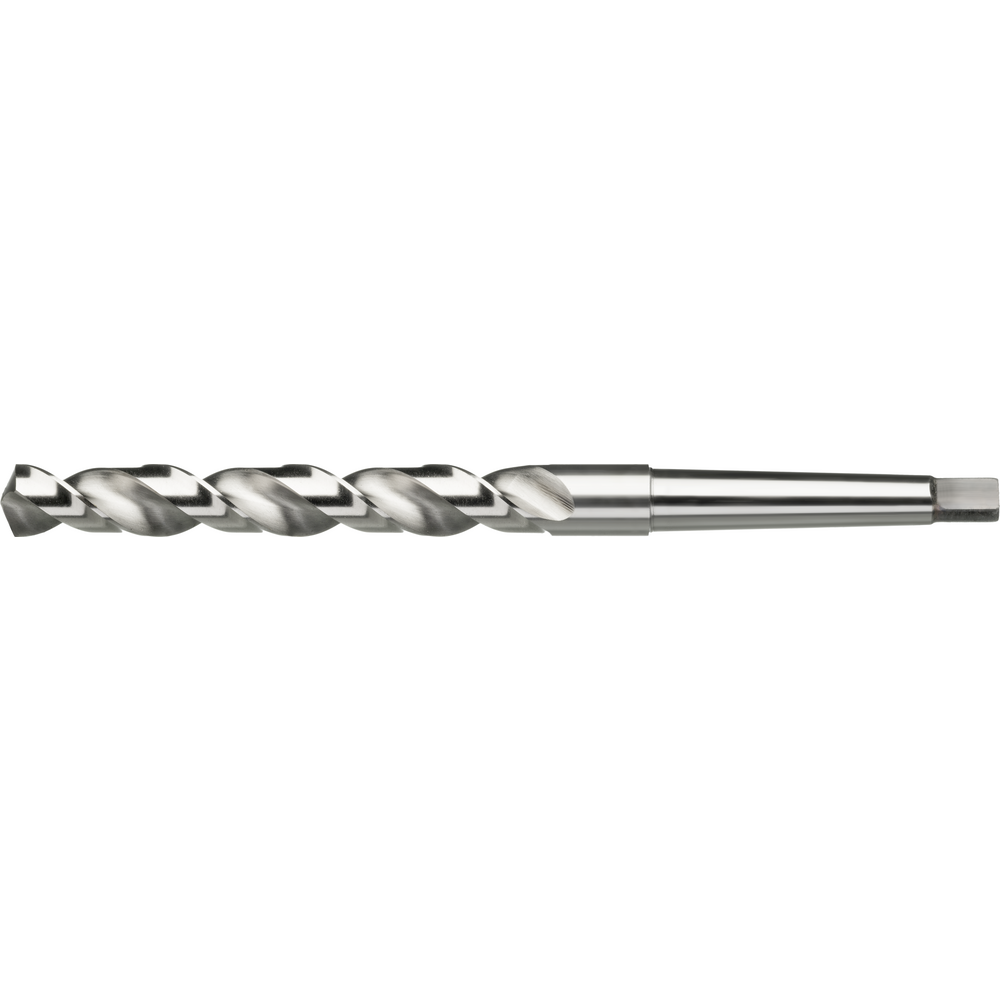

Twist drill HSS-E 5xD DIN345VA 130° 12,5mm MK1

Twist drill HSS-E 5xD DIN345VA 130° 12,5mm MK1
Twist drill HSS-E 5xD DIN345VA 130° 12,5mm MK1 Twist drill HSS-E 5xD DIN345VA 130° 12,5mm MK1
Price:
57,80 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Stainless steel

Twist drill with MT shank
  • Profile-ground
  • Morse taper shank
  • For machining stainless steel

Article no./ATORN no.
1016050125 / 10472555
Packaging unit
1
Catalogue page
KS-0104
Cutting values
SW-0357

Technical characteristics

A-Maß 2,91 mm
Angle of the tip - S 130 °
Coating uncoated
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 12,50 mm
DIN 345
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 1
f steel 700 0,25 mm/rev
Feed f stainless steel austenitic 0,18 mm/rev
fitness hartl total 3
Kraglänge 120 mm
L 182 mm
L1 101 mm
Max. drilling depth (D) 5xD
Nutzlänge 67,4 mm
Schaftlänge 62 mm
Schneidendurchmesser max. 23,0 mm
Schneidendurchmesser min. 11,0 mm
Schneidendurchmesser min./max. 11,0-23,0 mm
Section shape Cone-shaped shell
Shank MT 1
Surface Uncoated
Tolerance of cutting edge diameter h8 mm
Tool holding device Morse taper shank
Twist angle 40°
Type VA
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
