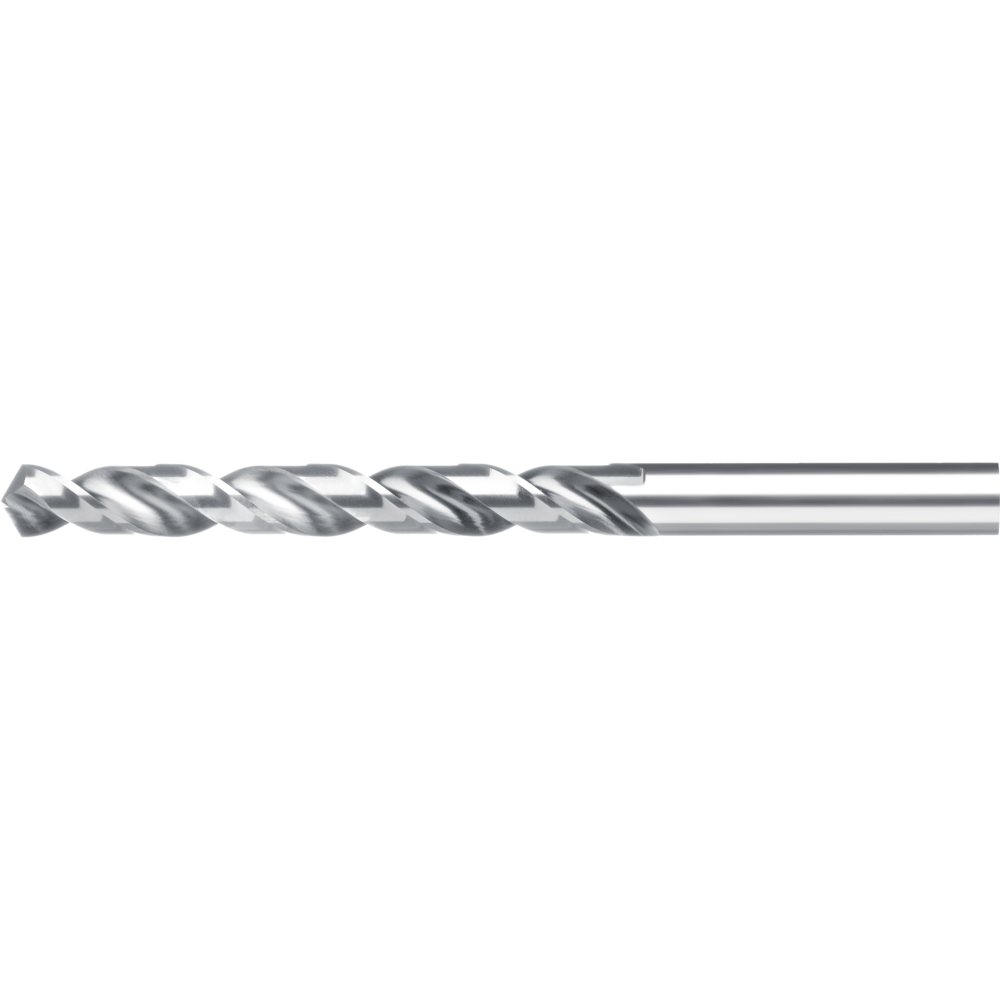

Twist drill HSS-E 5xD DIN338N 130° 1mm blank ground

Twist drill HSS-E 5xD DIN338N 130° 1mm blank ground
Twist drill HSS-E 5xD DIN338N 130° 1mm blank ground Twist drill HSS-E 5xD DIN338N 130° 1mm blank ground
Price:
4,03 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Universal multi-purpose drill bit

Twist drill UNI
  • Special point thinning
  • Self-centring
  • 4-facet grinding
  • For universal applications
  • Smooth operation
  • Low torque
  • Optimum chip removal with round groove profile

Article no./ATORN no.
1010400100 / 10478248
Packaging unit
10
Catalogue page

Technical characteristics

A-Maß 0,3 mm
Angle of the tip - S 118 °
Coating uncoated
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 1,00 mm
DIN 338
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 2
Feed f steel < 1000 N/mm² 0,03 mm/rev
fitness hartl total 3
Kraglänge 14 mm
L 34 mm
L1 12 mm
Max. drilling depth (D) 5xD
Nutzlänge 8 mm
Schaftdurchmesser 1 mm
Schneidendurchmesser max. 14,0 mm
Schneidendurchmesser min. 1,0 mm
Schneidendurchmesser min./max. 1,0-14,0 mm
Section shape Split point
Spannutlänge 12 mm
Surface Uncoated
Tolerance of cutting edge diameter h8
Tolerance of shank diameter h8
Tool holding device HA parallel shank
Twist angle 38°
Type U4
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
graphite
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
