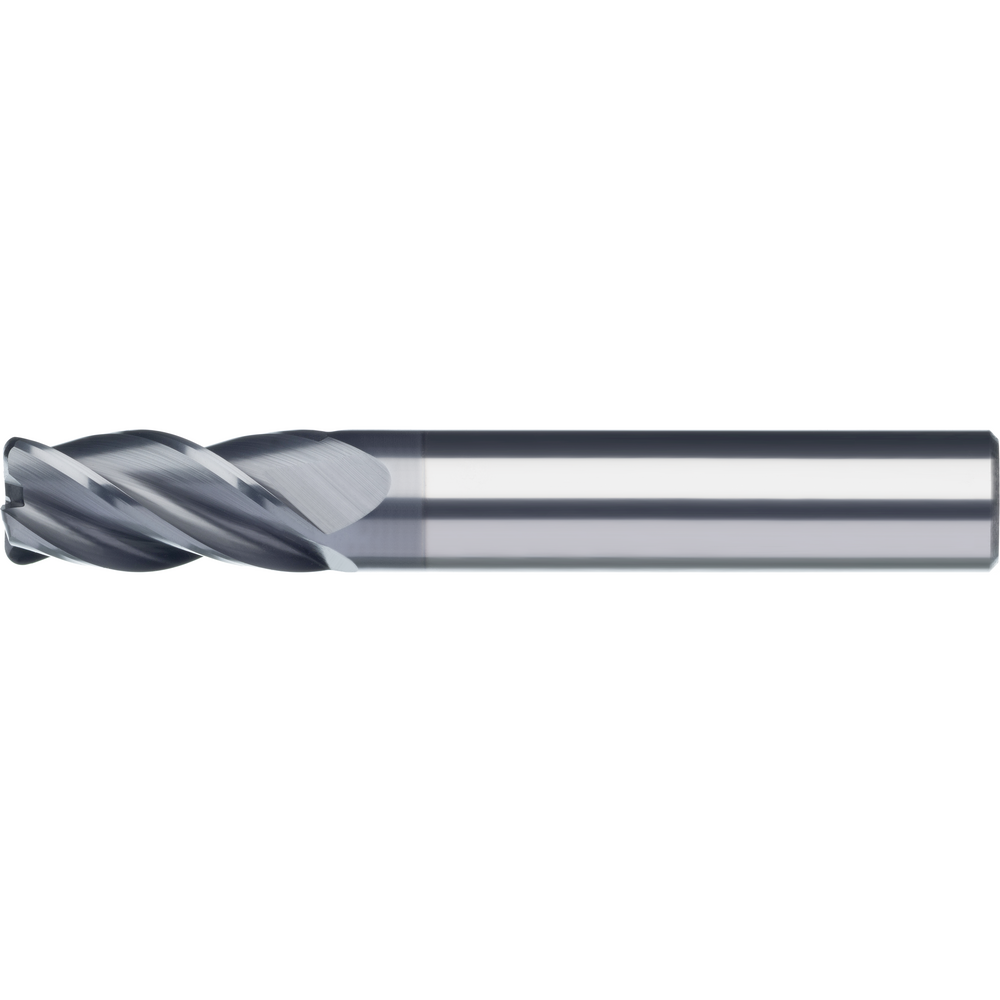

Solid carbide torus cutter 35°/38°, UT, 4mm, R=0,3mm, clear. Z=4 HB Ultra-MS

Solid carbide torus cutter 35°/38°, UT, 4mm, R=0,3mm, clear. Z=4 HB Ultra-MS
Solid carbide torus cutter 35°/38°, UT, 4mm, R=0,3mm, clear. Z=4 HB Ultra-MS Solid carbide torus cutter 35°/38°, UT, 4mm, R=0,3mm, clear. Z=4 HB Ultra-MS
Price:
51,30 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Ultra-MS torus cutter
  • With clearance

Standard
Article no./ATORN no.
2560100001 / 11861105
Packaging unit
1
Catalogue page
KS-0489
Cutting values
SW-0769

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Yes
Coating AlCrN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 4 mm
D1 6 mm
D3 3,7 mm
Durchmesser max. 20 mm
Durchmesser min. 4 mm
Durchmesser min./max. 4-20 mm
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 1
Feed for grooving fz stainless steel austenitic 0,016 mm/tooth
Feed for side milling fz stainless steel austenitic 0,021 mm/tooth
fitness hartl total 3
Form Torus
Freistellungslänge 20 mm
fz Edelstahl 0,015 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 1
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 1
Kantenradius 0,3 mm
L 57 mm
L1 11 mm
L2 20 mm
Overall length Normal
R 0,30 mm
Rake angle 10 °
Surface ULTRA MS
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Tooth pitch Unequal
Twist angle 35° | 38°
Type VA
Z 4 pc.

Usage characteristics

cast iron GG/GTS
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
