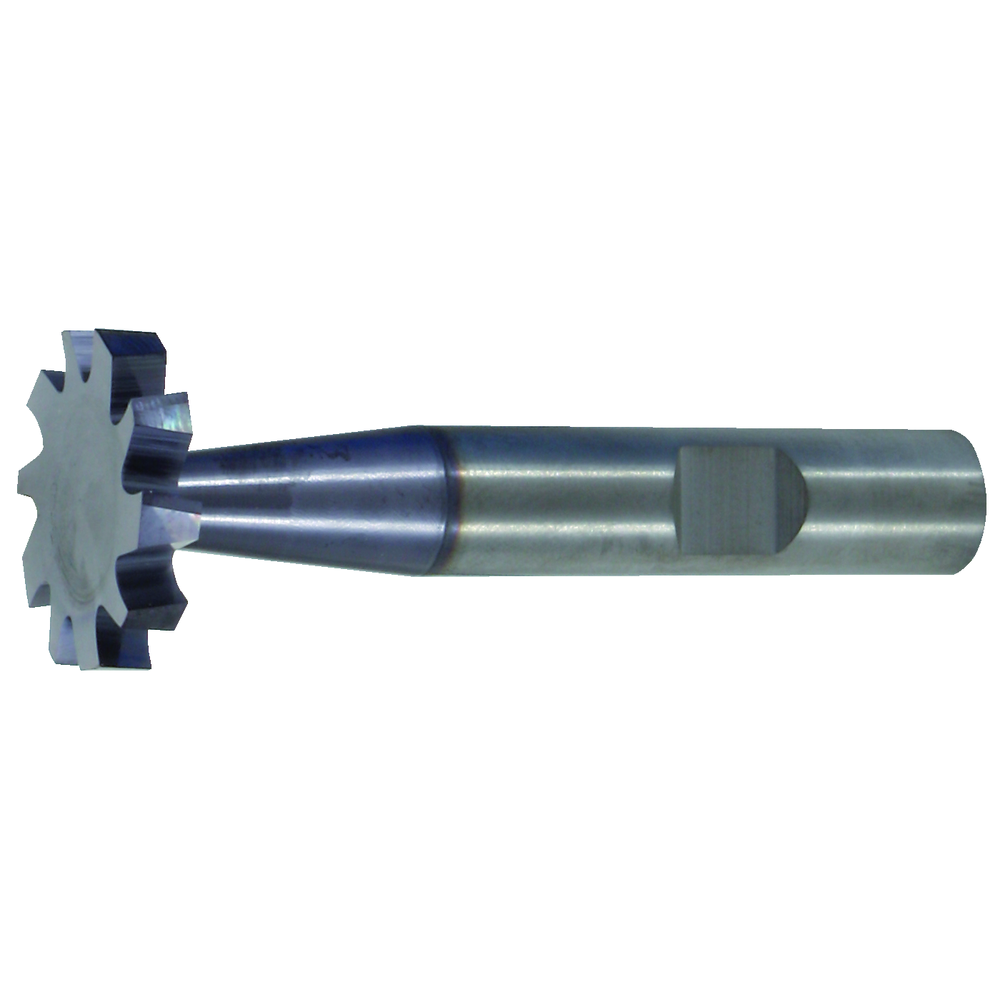

Solid carbide slotting cutter DIN850N 10,5x2mm Z=6 ALCrN

Solid carbide slotting cutter DIN850N 10,5x2mm Z=6 ALCrN
Solid carbide slotting cutter DIN850N 10,5x2mm Z=6 ALCrN Solid carbide slotting cutter DIN850N 10,5x2mm Z=6 ALCrN
Price:
302,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Slotting cutter
  • For keyway milling in accordance with DIN 6888
  • For slot milling
  • Circumferential cutting
  • With cross-cut toothing
  • in accordance with DIN 850

Article no./ATORN no.
2920041052
Packaging unit
1
Catalogue page
KS-0549
Cutting values
SW-0777

Technical characteristics

Application direction milling Lining
Coating AlCrN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 10,5 mm
D1 6,0 mm
DIN 850
Feed for grooving fz steel < 1000 mm² 0,036 mm/tooth
L 50 mm
Tolerance of cutting edge diameter h11
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Type N
W 2 mm
Z 6 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
