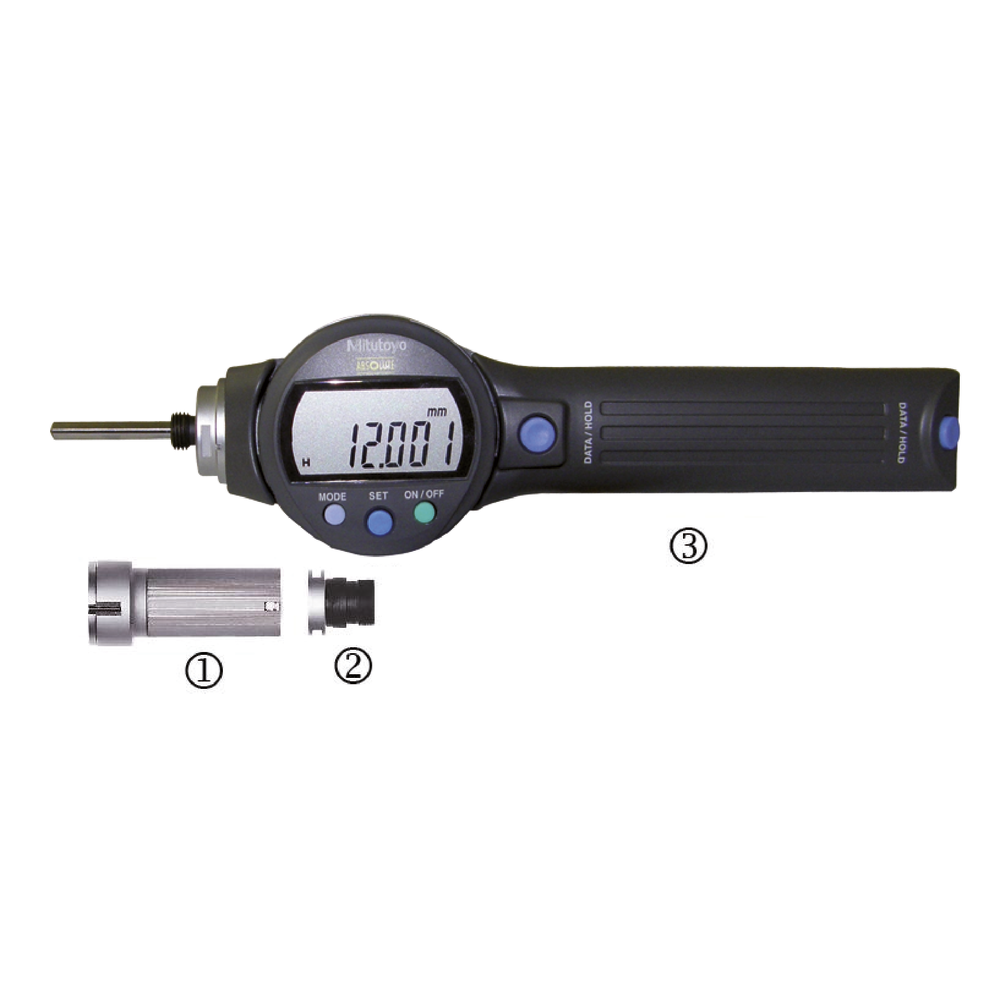

Inside micrometers with three-point contacts BOREMATIC

• For fast and precise series measurements
• Base body with operating handle for quick adjustment
• Extremely easy to read with 11 mm high digits
• Display component can be rotated through 330°
• Allows two pre-set values to be input
• Measuring faces: up to size 0012, titanium-coated carbide; from size 0016, titanium-coated measuring pins made from hardened steel. Contact point and taper: Carbide
• Error margin: Measuring range 6 - 20 mm, Ø = 0.005 mm; measuring range 20 - 125 mm Ø = 0.006 mm
• Functions: MODE to switch between tolerance, factor and pre-set modes
  SET to confirm input
  DATA/ON/OFF
  Battery check
• Supplied with SR44 battery (no. 500534 0001), key and factory certificate
• Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006; ring gauge, no. 540135....; extensions, no. 508701....
