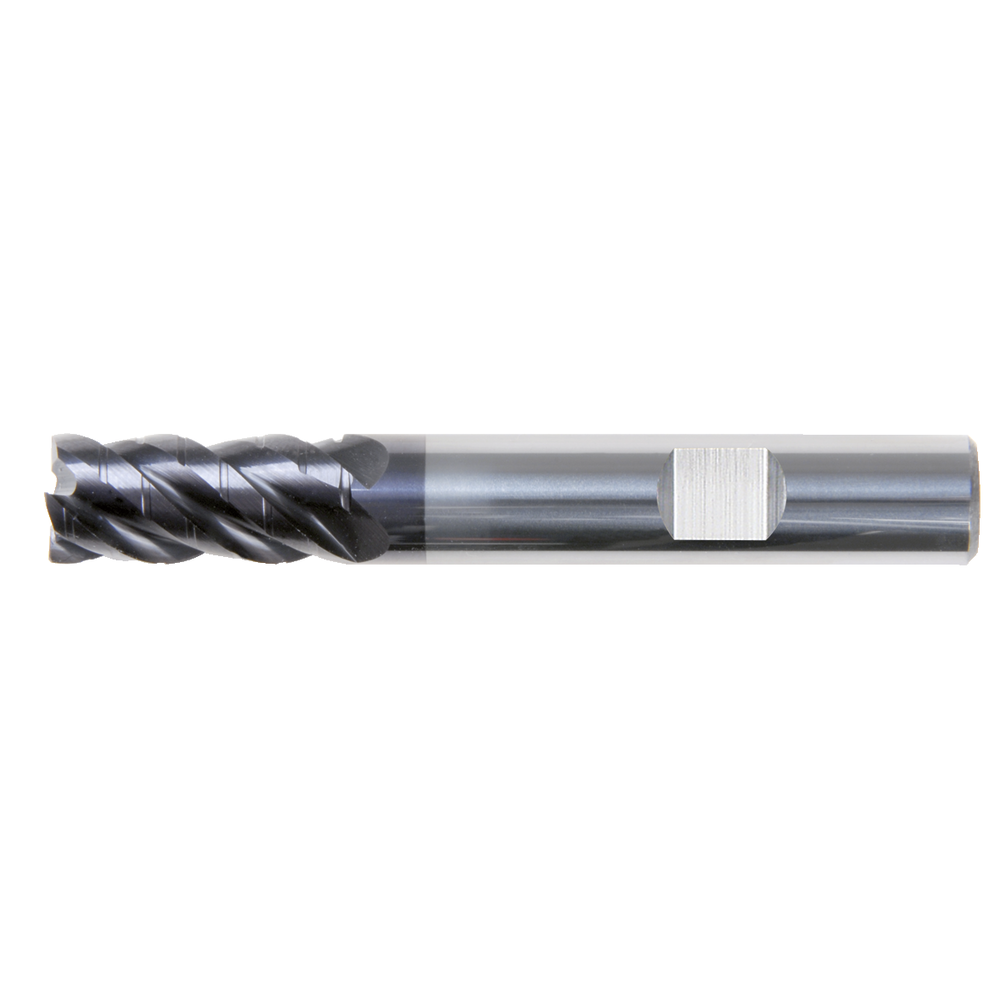

Roughing/finishing cutter SC 45° NF 4 mm Z=4, long, HB, TiAlN

Roughing/finishing cutter SC 45° NF 4 mm Z=4, long, HB, TiAlN
Roughing/finishing cutter SC 45° NF 4 mm Z=4, long, HB, TiAlN Roughing/finishing cutter SC 45° NF 4 mm Z=4, long, HB, TiAlN
Special offer
10,00 €
(25,00 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 32 pieces left!
Tool Finder

Ordered by 18:00 - delivered tomorrow.

Basic Line roughing/finishing milling cutter
  • 4 cutting edges, long, 45° right-hand cutting
  • Eccentric relief grinding
  • Cutting material: fine grain solid carbide

Article no./ATORN no.
2540230040
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 4,0 mm
D1 6,0 mm
Feed fz steel < 1000 N/mm² 0,018 mm/tooth
Feed fz steel < 1000 N/mm² 0,028 mm/tooth
L 57 mm
L1 11 mm
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Twist angle 45°
Type NF
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
Catalogue page Download
Cutting values Download
