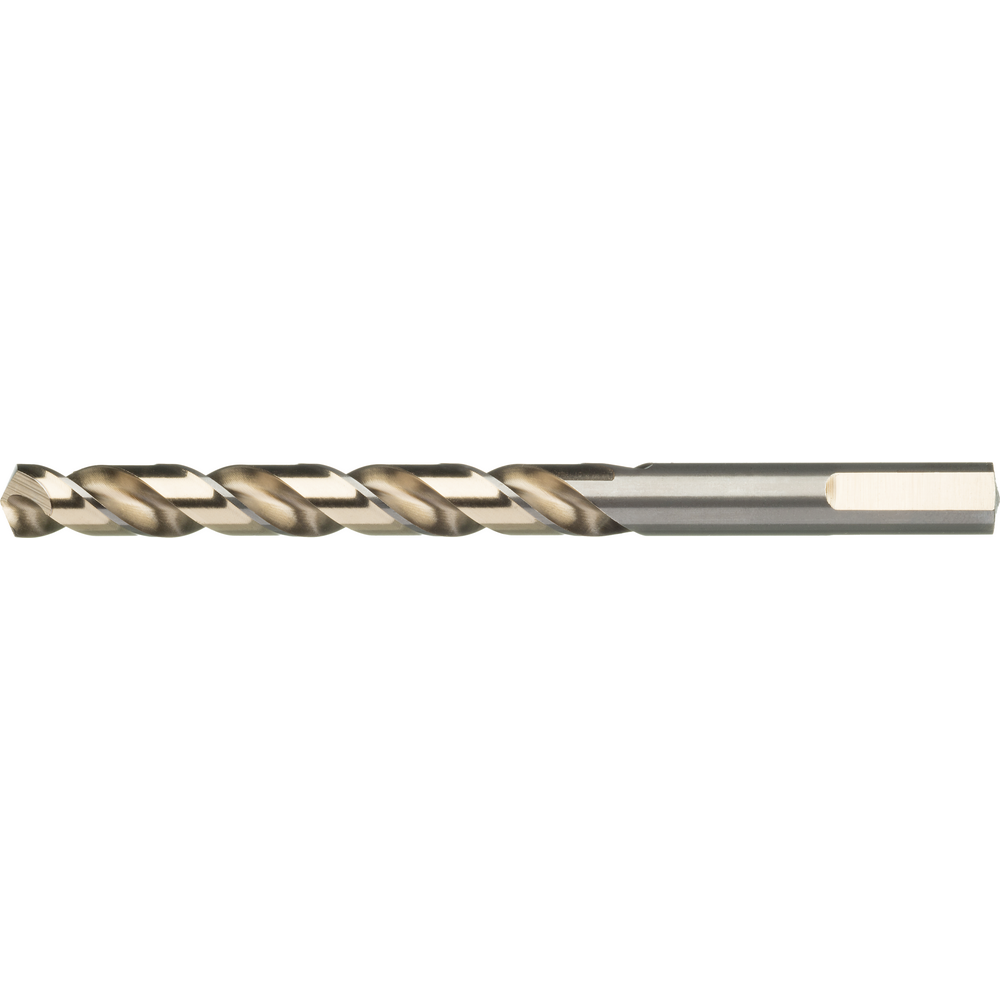

Twist drill HSS-E 5xD DIN338VA 135° 2mm 3-sided clamping surface

Twist drill HSS-E 5xD DIN338VA 135° 2mm 3-sided clamping surface
Twist drill HSS-E 5xD DIN338VA 135° 2mm 3-sided clamping surface Twist drill HSS-E 5xD DIN338VA 135° 2mm 3-sided clamping surface Twist drill HSS-E 5xD DIN338VA 135° 2mm 3-sided clamping surface Twist drill HSS-E 5xD DIN338VA 135° 2mm 3-sided clamping surface
Price:
3,68 €
prices excl. vat plus shipping costs

Stock status
5 immediately available
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

also ideal for stainless steel

Twist drill, with 3 surface shank
  • 3-facet grinding on shank (from Ø 4 mm) for optimum transfer of force and secure hold in the drill chuck, no possibility of slippage
  • Low force application when opening and closing in the drill chuck
  • Special surface treatment in conjunction with relief grinding for maximum lubricant adhesion and for fast, reliable chip removal
  • Designed especially for use on portable drilling machines

Article no./ATORN no.
1010760020 / 11230134
Packaging unit
10
Catalogue page
KS-0087
Cutting values
SW-0359

Technical characteristics

A-Maß 0,41 mm
Angle of the tip - S 135 °
Coating uncoated
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 2,00 mm
DIN 338
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 2
f Edelstahl 0,03 mm/rev
Feed f steel < 700 N/mm² 0,04 mm/rev
fitness hartl total 3
Kraglänge 26 mm
L 49 mm
L1 24 mm
Max. drilling depth (D) 5xD
Nutzlänge 16 mm
Schaftdurchmesser 2 mm
Schneidendurchmesser max. 13,0 mm
Schneidendurchmesser min. 2,0 mm
Schneidendurchmesser min./max. 2,0-13,0 mm
Section shape Split point
Surface Uncoated
Tolerance of cutting edge diameter h8
Tool holding device Parallel shank with three tightening surfaces
Twist angle 40°
Type VA
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
graphite
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
