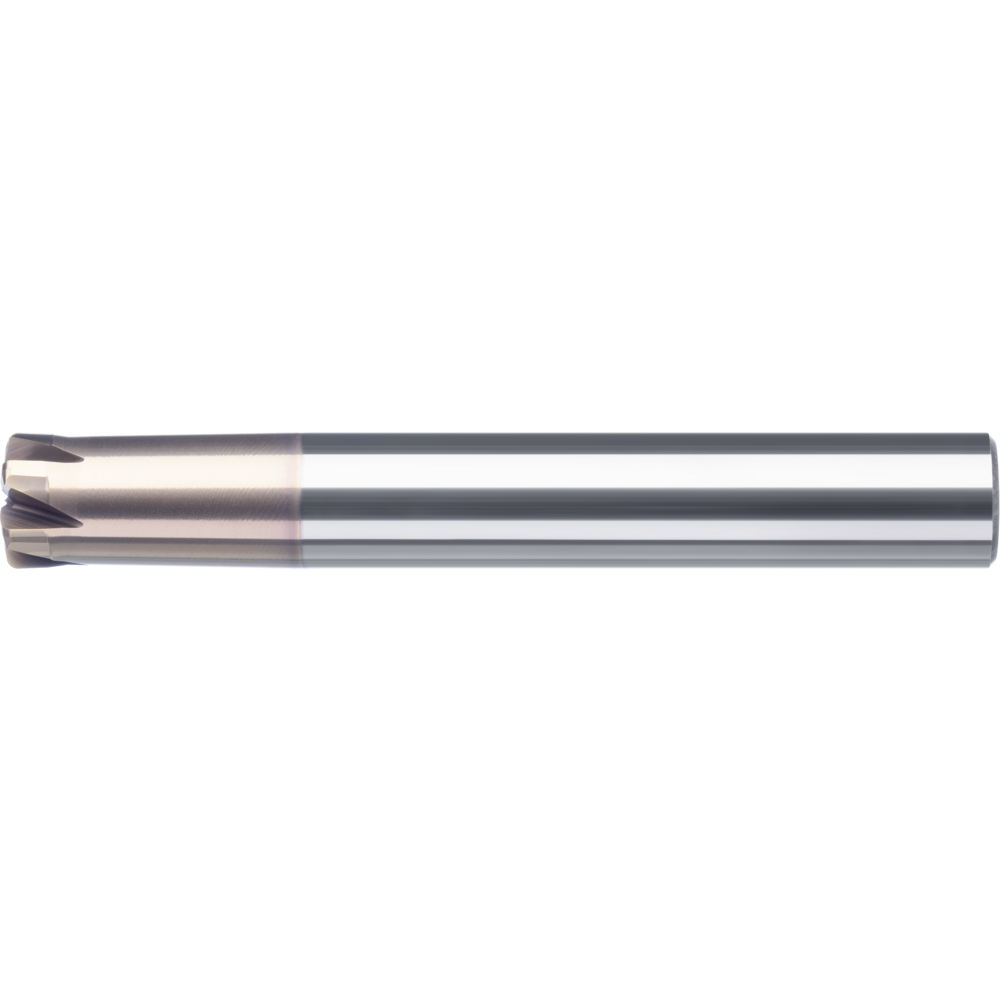

SC high feed-rate milling cutter 3° 4mm, L2=8mm, Z=4 R=0,4mm RockTec-65

SC high feed-rate milling cutter 3° 4mm, L2=8mm, Z=4 R=0,4mm RockTec-65
SC high feed-rate milling cutter 3° 4mm, L2=8mm, Z=4 R=0,4mm RockTec-65 SC high feed-rate milling cutter 3° 4mm, L2=8mm, Z=4 R=0,4mm RockTec-65 SC high feed-rate milling cutter 3° 4mm, L2=8mm, Z=4 R=0,4mm RockTec-65
Price:
96,20 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
High feed-rate milling cutter

High feed-rate end milling cutter RockTec 65
  • 4-6 cutting edges
  • For machining materials up to 65 HRC
  • For copy and line milling
  • Very high machining volumes are achieved with a special milling strategy
  • Solid carbide ultra-fine grain cutting material

Roughing cutter, standard
Article no./ATORN no.
2570400001 / 11860801
Packaging unit
1
Catalogue page
KS-0512
Cutting values
SW-0774

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling MSC
Center cutting Yes
Coating TiSiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 4 mm
D1 6 mm
D3 3,7 mm
Durchmesser max. 12 mm
Durchmesser min. 4 mm
Durchmesser min./max. 4-12 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz hardened steel ≥ 60 HRc 0,028 mm/tooth
fitness hartl total 1
Form Torus
Freistellungslänge 8 mm
fz Hart 52 HRC 0,13 mm
Geeignet für Werkstoffgruppe H 1
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
Kantenradius 0,4 mm
L 57 mm
L1 1,5 mm
L2 8 mm
Oberfläche RockTec 65
Overall length Normal
R 0,4 mm
Rake angle -1 °
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 3°
Type H
Z 4 pc.

Usage characteristics

hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
steel < 1400 N/mm²

very suitable
suitable
STEP Download
DXF Download
Catalogue page Download
Cutting values Download
ASSET_MatSafetyDataSheet Download
