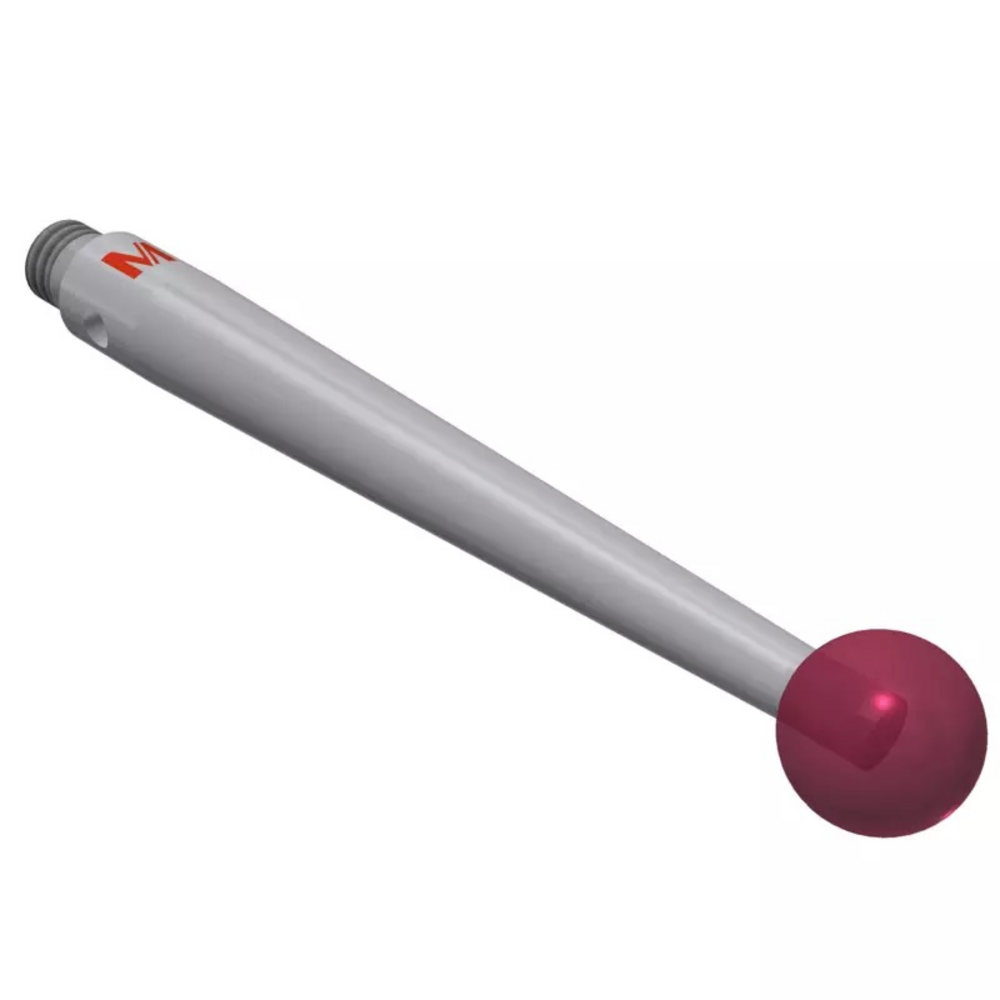

Taststift Edelstahl M3 S=5mm L=33,5mm Schaft konisch, Kugel Rubin

Taststift Edelstahl M3 S=5mm L=33,5mm Schaft konisch, Kugel Rubin
Taststift Edelstahl M3 S=5mm L=33,5mm Schaft konisch, Kugel Rubin Taststift Edelstahl M3 S=5mm L=33,5mm Schaft konisch, Kugel Rubin Taststift Edelstahl M3 S=5mm L=33,5mm Schaft konisch, Kugel Rubin
Price
35,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Probe tips for coordinate measuring devices
  • Suitable for all probe heads in the coordinate measuring range with M2 holding threads
  • Ruby probe balls – extremely hard probe ball material with low density, resulting in extremely light probe tips
  • Carbide, steel and carbon fibre probe shanks
  • Stainless steel probe holding fixture
  • M3 / M4 / M5 probe inserts as well as other lengths and ball diameters available on request

Article no./ATORN no.
5800050001
Vendor Article no.
K651152
Packaging unit
1
Catalogue page

Technical characteristics

Ball diameter 5,0 mm
Connection thread M3
D1 2,0 konisch mm
L 31 mm
L4 - mm
material Stainless steel
Measuring ball material Rubin
Sensor tip Kugel
