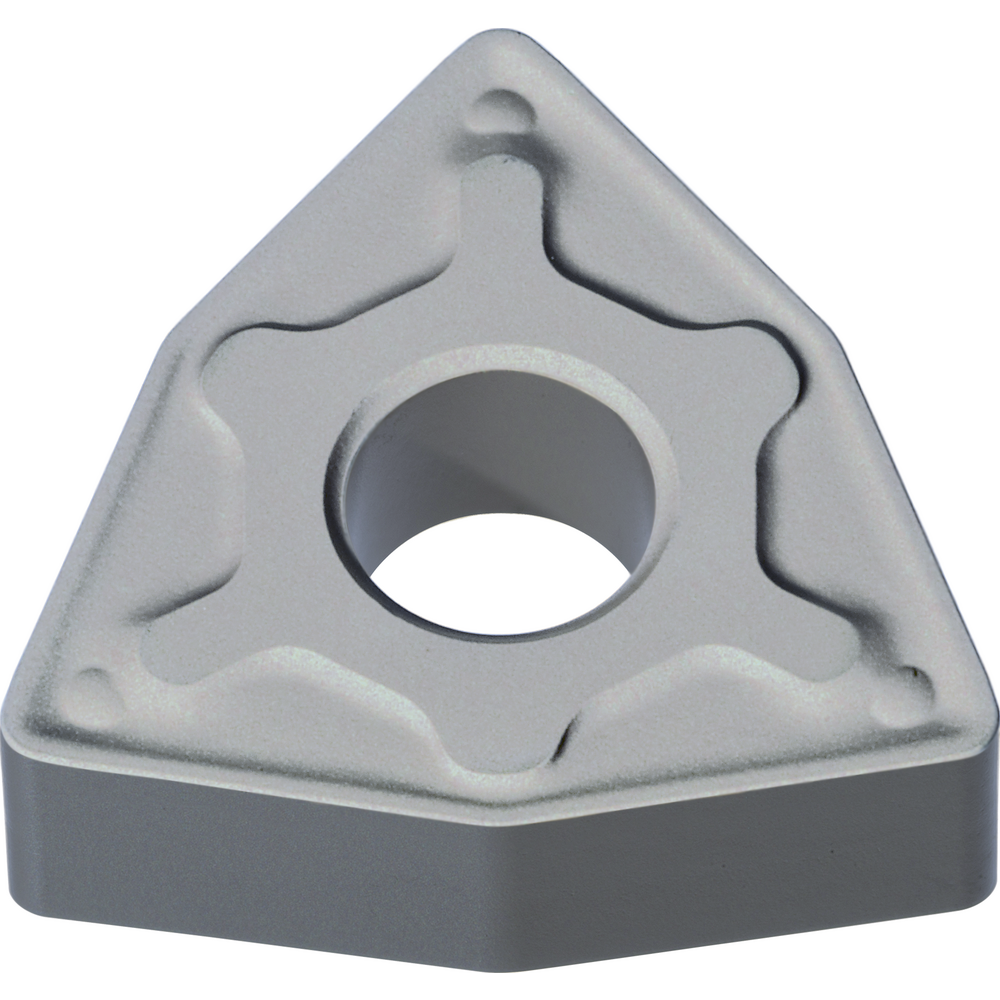

Turning insert WNMG 080408-WP HC7610

Turning insert WNMG 080408-WP HC7610
Turning insert WNMG 080408-WP HC7610 Turning insert WNMG 080408-WP HC7610 Turning insert WNMG 080408-WP HC7610
Price:
11,95 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
WNMG ISO indexable cutting inserts
  • 80° trigonometric, negative 0°
  • Unit prices when purchased in packs = 10 units per size and quality

Wiper!

Wiper type WP
Article no./ATORN no.
3117630911 / 10870679
Packaging unit
10
Catalogue page

Technical characteristics

Anzahl Stück pro Paket 10 pc.
ap max. 3 mm
ap min. 0,8 mm
Beschichtung CVD
Eckenradius 0,8 mm
Eckenradius Wendeschneidplatte ISO 08
F finishing
F max. 0,55 mm/rev
F min. 0,2 mm/rev
Freiwinkel 0 °
Freiwinkel Wendeschneidplatte ISO N
Hartmetallsorte ISO P10
Hartmetallsortenbereich ISO P
ISO designation WNMG 080408-WP
ISO H 3
ISO K 2
ISO M 3
ISO N 3
ISO P 1
ISO S 3
ISO-Code Drehen WNMG 080408
ISO-Norm WNMG
M medium
Machining type Smoothing - Wipergeometry for high surface quality with high feed values
Quality HC7610
Spanbrecherbezeichnung WP
Spitzenwinkel 80 °
Toleranzklasse Wendeschneidplatte ISO M
Vc in Guss max. 240 m/min
Vc in Guss min. 140 m/min
Vc in Stahl max. 350 m/min
Vc in Stahl min. 110 m/min
Wendeschneidplattendicke 4,76 mm
Wendeschneidplattendicke ISO 04
Wendeschneidplattenform ISO W
Wendeschneidplattengröße ISO 08
Wendeschneidplattentyp ISO G
ASSET_MatSafetyDataSheet Download
