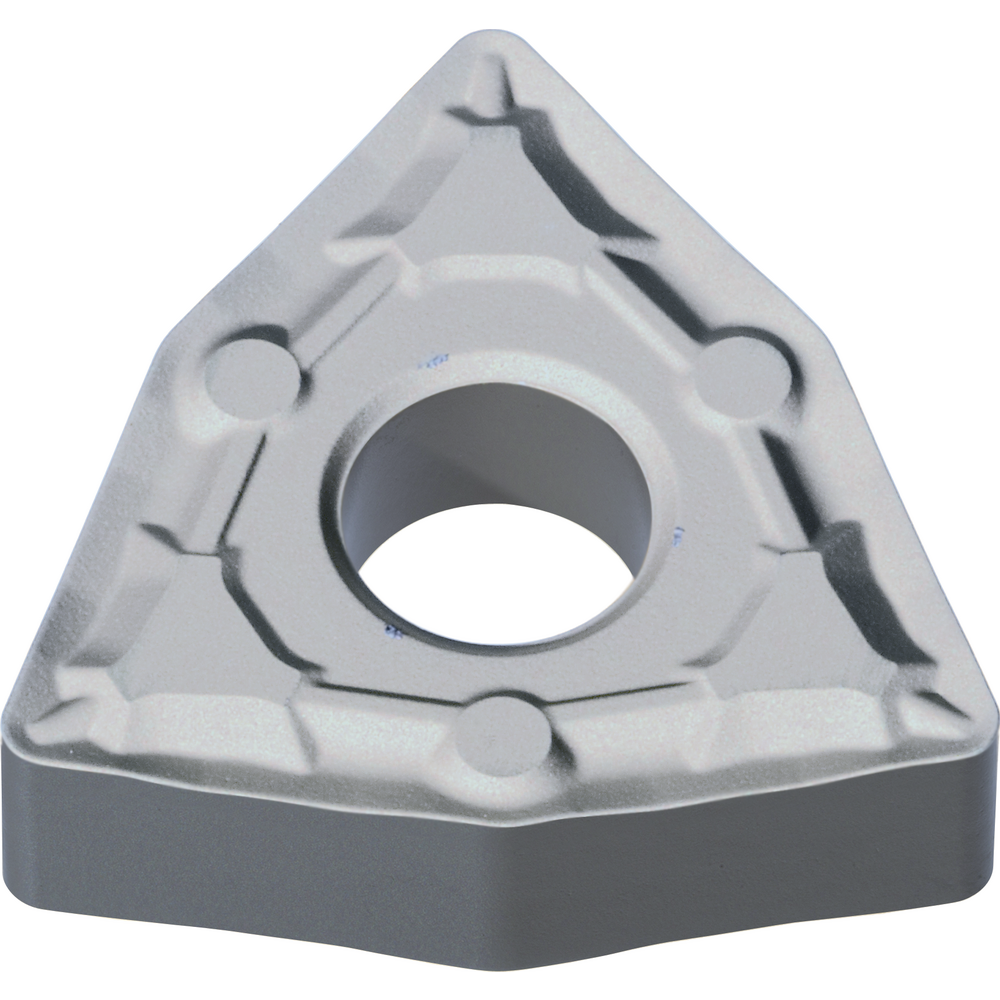

Turning insert WNMG 060404-FP HC7620

Turning insert WNMG 060404-FP HC7620
Turning insert WNMG 060404-FP HC7620 Turning insert WNMG 060404-FP HC7620 Turning insert WNMG 060404-FP HC7620
Price:
11,30 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
WNMG ISO indexable cutting inserts
  • 80° trigonometric, negative 0°
  • Unit prices when purchased in packs = 10 units per size and quality

Chip breaker type FP
Article no./ATORN no.
3117510312 / 10870664
Packaging unit
10
Catalogue page

Technical characteristics

Anzahl Stück pro Paket 10 pc.
ap max. 1,5 mm
ap min. 0,1 mm
Beschichtung CVD
Eckenradius 0,4 mm
Eckenradius Wendeschneidplatte ISO 04
F finishing
F max. 0,2 mm/rev
F min. 0,04 mm/rev
Freiwinkel 0 °
Freiwinkel Wendeschneidplatte ISO N
Hartmetallsorte ISO P20
Hartmetallsortenbereich ISO P
ISO designation WNMG 060404-FP
ISO H 3
ISO K 2
ISO M 3
ISO N 3
ISO P 1
ISO S 3
ISO-Code Drehen WNMG 060404
ISO-Norm WNMG
Machining type Smoothing - Positive chip breaker for low cutting depths
Quality HC7620
Spanbrecherbezeichnung FP
Spitzenwinkel 80 °
Toleranzklasse Wendeschneidplatte ISO M
Vc in Guss max. 290 m/min
Vc in Guss min. 120 m/min
Vc in Stahl max. 350 m/min
Vc in Stahl min. 90 m/min
Wendeschneidplattendicke 4,76 mm
Wendeschneidplattendicke ISO 04
Wendeschneidplattenform ISO W
Wendeschneidplattengröße ISO 06
Wendeschneidplattentyp ISO G
